illuminated tact switch

Lighted tact switch is a weak current electronic switch used below safe voltage (36V)

Brand:
Gangyuan
Item NO.:
KAN6811-0580E100-93
Order(MOQ):
500
Payment:
100% Before Production
Product Origin:
Zhejiang, China
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7~15 working days

Outline (mm)
6.80mm x 6.80mm
Mounting Type
Through Hole
lllumination
llluminated
IP Rating
IP4X

Product Detail

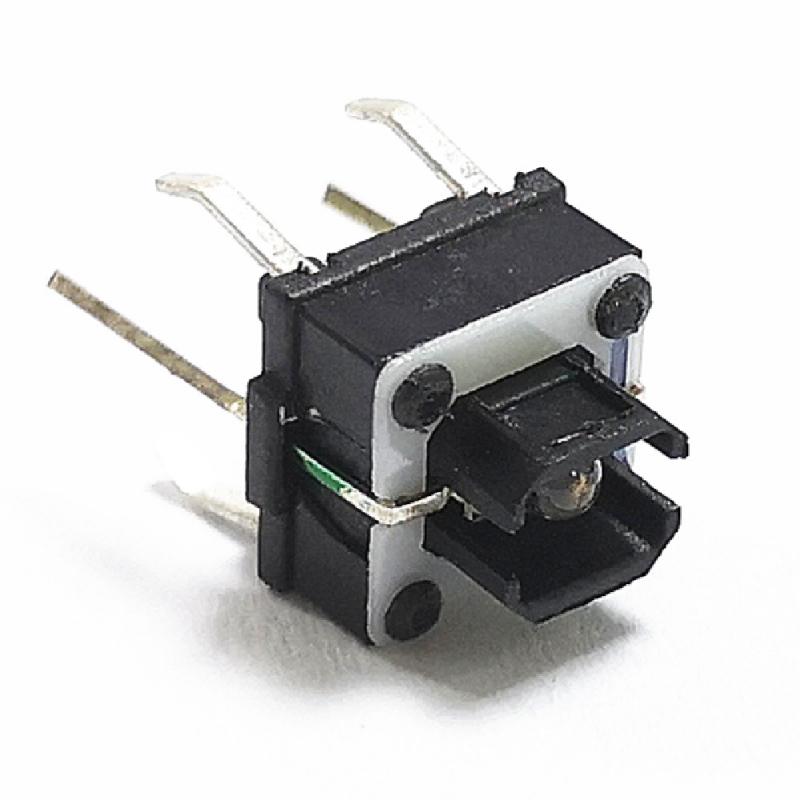

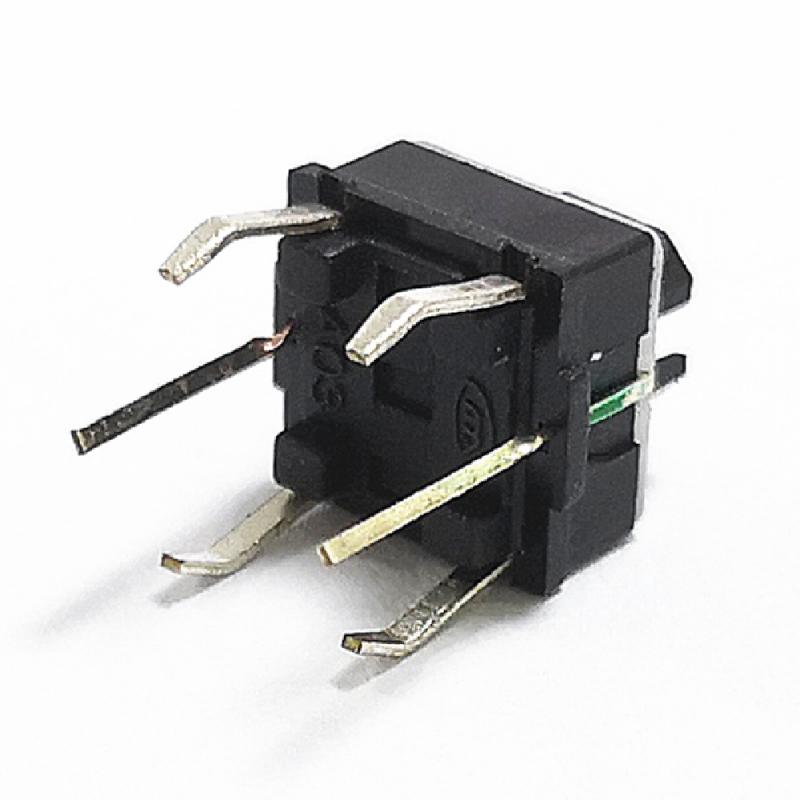

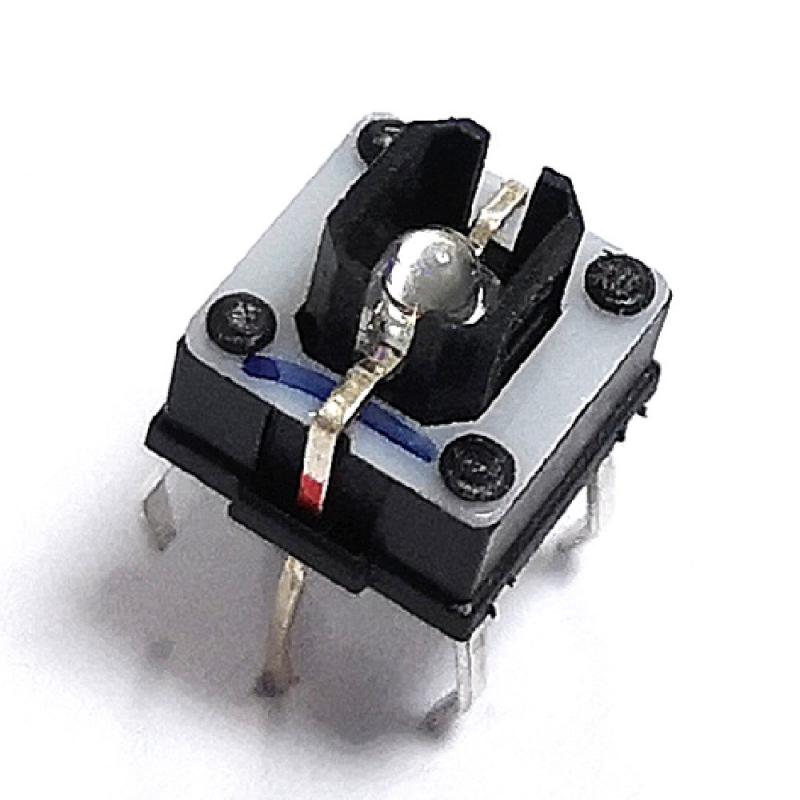

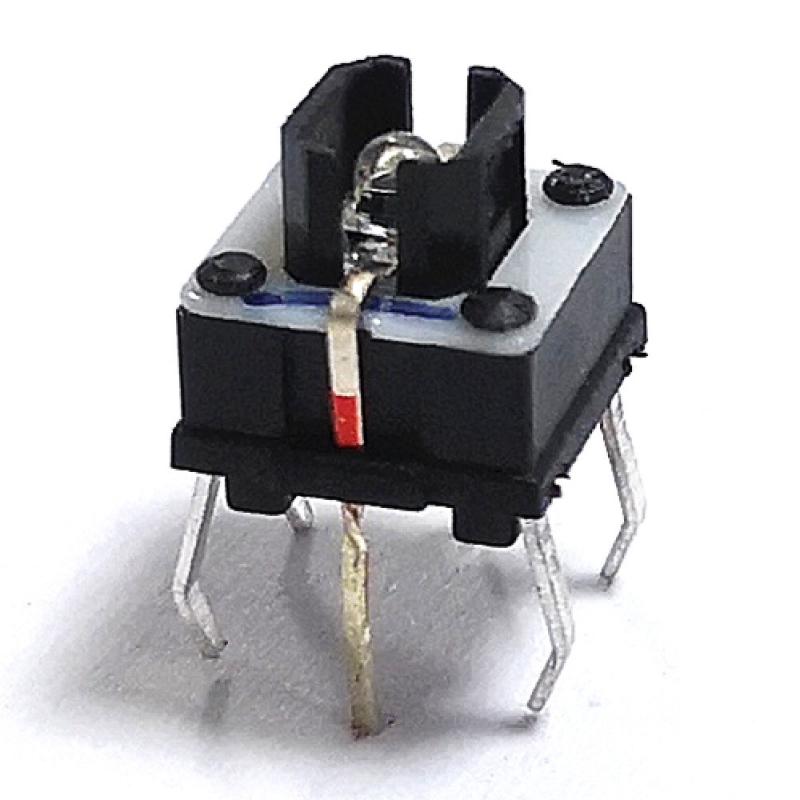

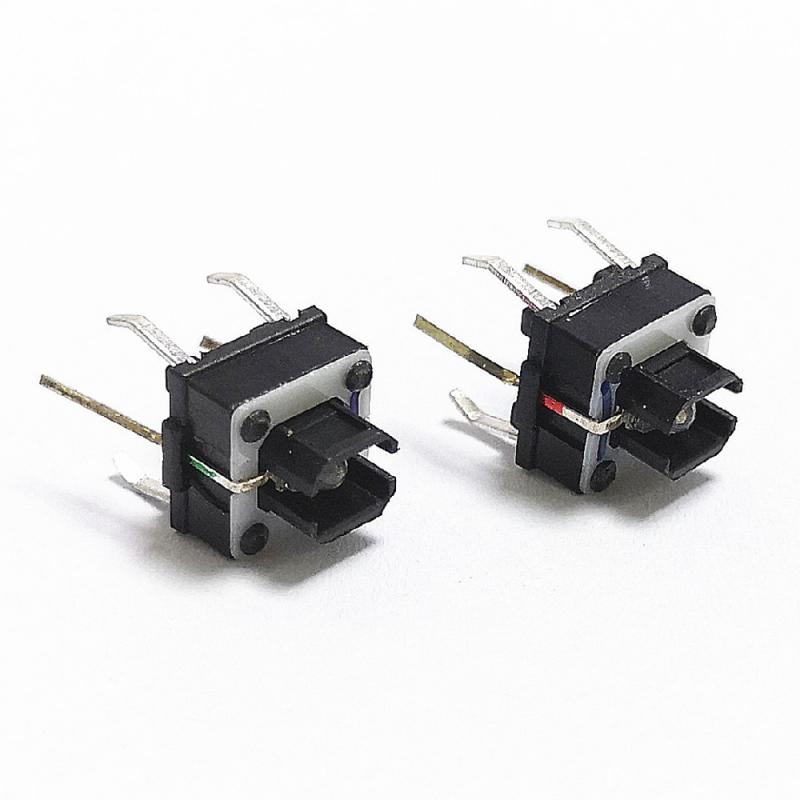

5 pin dip Illuminated type top Actuated through Hole tact switch

Ilumination options: Blue, Red, Yellow, Green, White or other.

Specification

Type: tactile button led light tact switch

Contact resistance: 100mΩ

Insulation resistance: 100MΩ

Operating force: 200±30gf

Life cycle: 1000000 cycles

Travel: 0.25± 0.1mm

Storage temperature range: -30℃ ~80℃

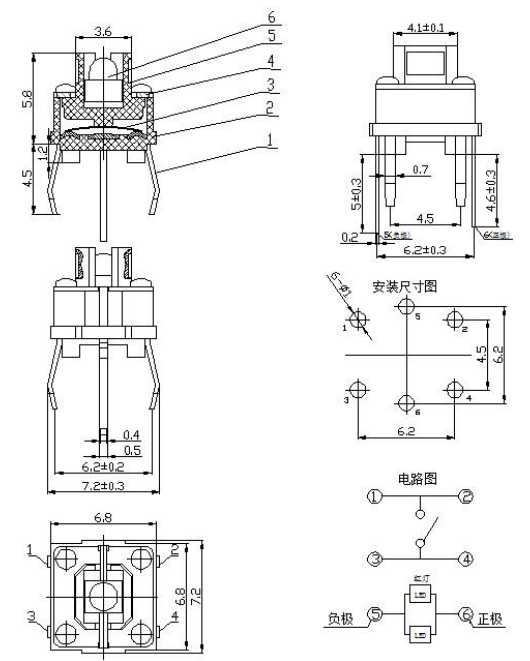

Body Dimensions

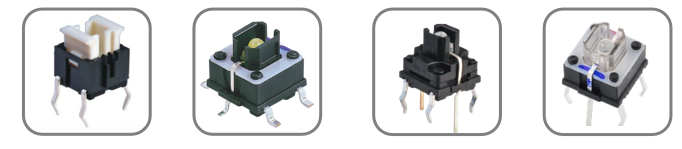

Other Type

Dip LED tact switch SMD Iluminate tact switch LED Waterproof Tact Switch Transparent button tact switch

Feature

Feature 1: This product has two types of models: luminous and non-luminous, which can be purchased by different groups of people.
Feature 2: Molded terminals are embedded in the light tact switch, which can effectively avoid the intrusion of some fluxes, solutions and other magazines.
Feature 3: The crimp terminal of the light tact switch can ensure the firmness and reliability of the PC device, so as to avoid some displacement during the welding process.
