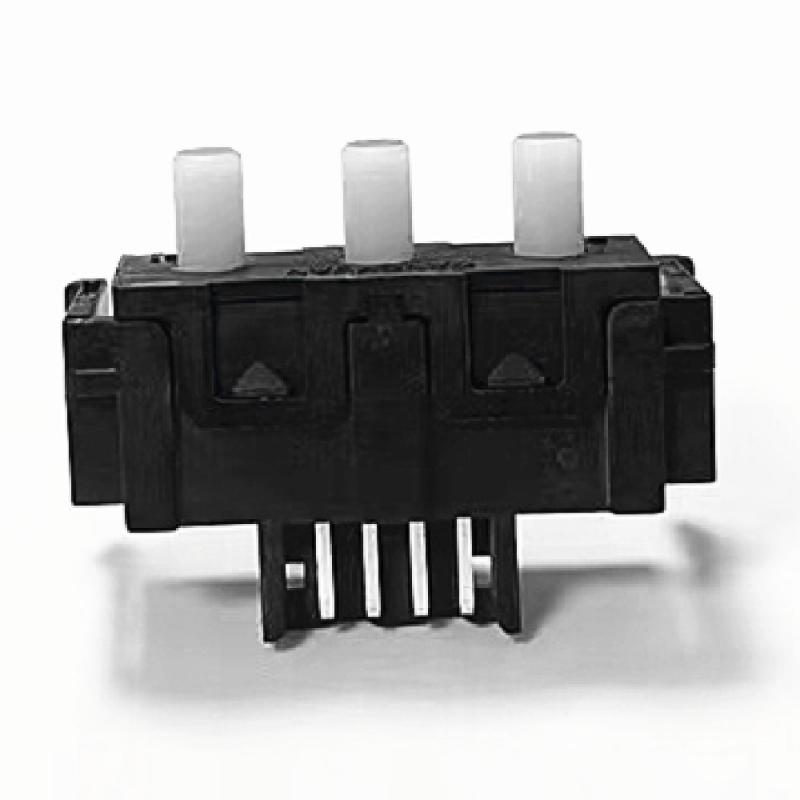

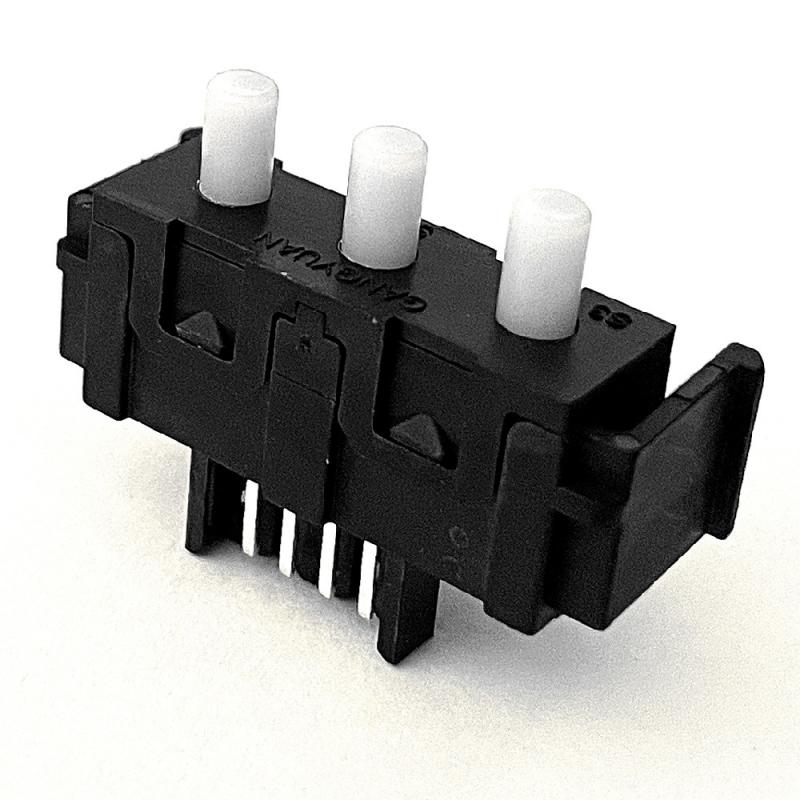

Detector Switches are used to “detect” internal mechanical movements and convert human manual operations, such as the opening of a door , to electronic signals.
Brand:
GangyuanItem NO.:
PB21HA03Order(MOQ):
500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for payment1P1T switch surface mount detector switches
Normally open angled toggle switch
Detector switch datasheet
Ratings: 100μA,3VDC ~ 10mA 5VDC
Contact Resistance: 100mΩ Max
Insulation Resistance: ≥100MΩ
Operating Force: 80 ±20 gf
Mechanical life: 150000 cycles
Electrical life: 100000 cycles
Operating Temperature Range: -20℃～65℃

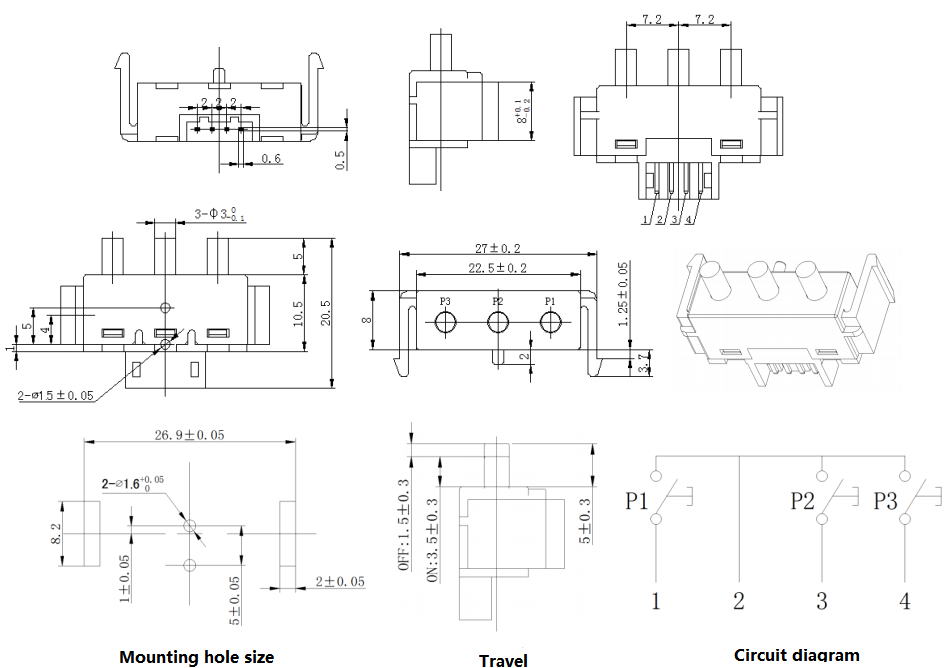

Installation Specification

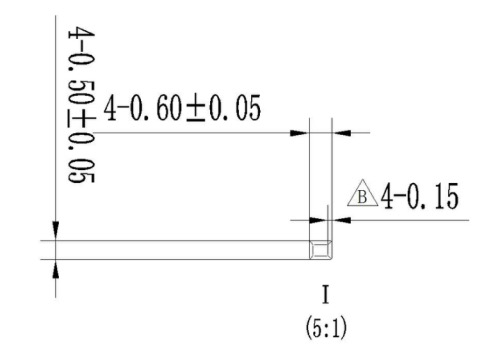

Pin Dimension
Features
Wide range of customizable features including operational directions
Wide available range for refl ow soldering
Light operating force
Applications
Detector switches are used in many applications including consumer electronics, computer/peripherals, telecommunications, appliances, networking, performance audio, instrumentation, and more.
