Home Switch Micro switch G20 Series mini micro switch
mini micro switch

mini micro switch

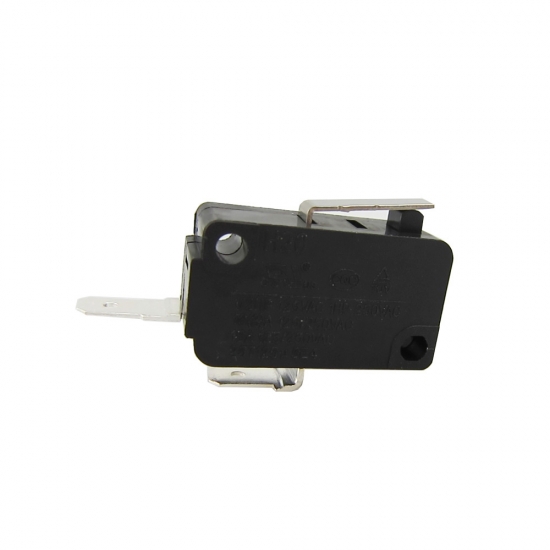

SPST 2 pin 2 terminal 250v 5e4 t125 mini micro switch

  • Brand:

    Gangyuan

  • Item NO.:

    G20-16GN15-150

  • Order(MOQ):

    1000pcs

  • Payment:

    100% T/T Before Production

  • Product Origin:

    Zhejiang, China (Mainland)

  • Color:

    black

  • Shipping Port:

    Ningbo/Shenzhen

  • Lead Time：

    7 Working Days after payment
Contact Us

  • Product Detail

SPST 2 pin 2 terminal 250v 5e4 t125 mini micro switch



Product Description:





Application

Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.



Item No. G20-16GN15-150
Dimension 29mmx10.1mm
Contact resistance ≤100mΩ
Dielectric Withstanding Voltage AC 1500V 1Minute
Operating temperature -25℃+125℃
Operating force 150±50gf
Life expectancy 50,000Cycles
Rating 16A 125V/250VAC



Dimension:
