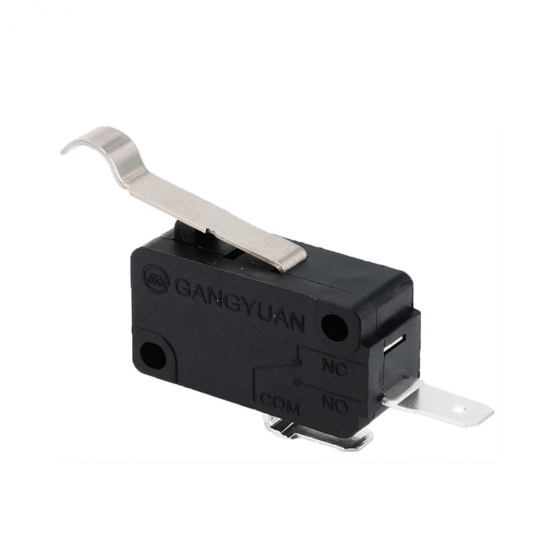

Micro switch with long curving hinge lever

16A 125/250VAC Micro switches ,adapt to a variety of installation.

Item NO.:
G20-16GN03-70
Order(MOQ):
1000pcs
Payment:
100% T/T before production
Product Origin:
Zhejiang
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 working days

Product Detail

Product item:Micro switch with long curving hinge lever

Micro switch are useful for detecting passage of a moving part or for implementingf an electronic limit stop.Set up the switch so that your mechanism wipes the lever and closes the switch as it moves by.

General characteristic：

Rating	16A，125/250V AC
Operation Temperature	-25℃±125℃
Electrical life	50,000 cycles
Mechanical life	100,000 cycles
Operation force	150±50gf（MAX）
Contact resistance	≤200mΩ MAX

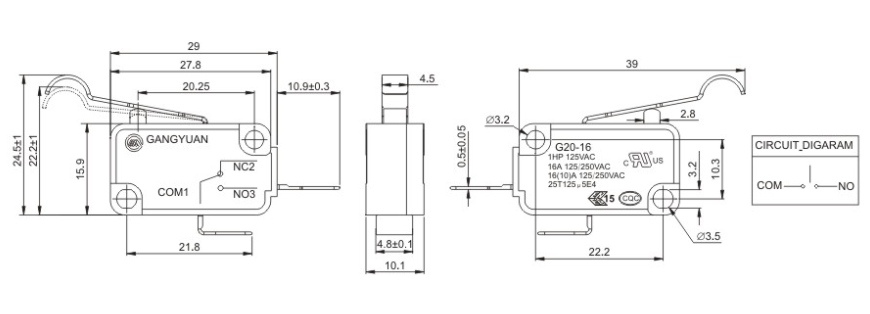

Dimension:

Advantages:

1) self-cleaning structure of contacts;

2) adaptation to low speed operation;

3) adapt to a variety of installation

4) micro gap structure and 3mm gap structure;

5) a variety of long-term use of the temperature range available
