Home Switch Micro switch G20 Series micro switch 5A 125/250VAC
micro switch

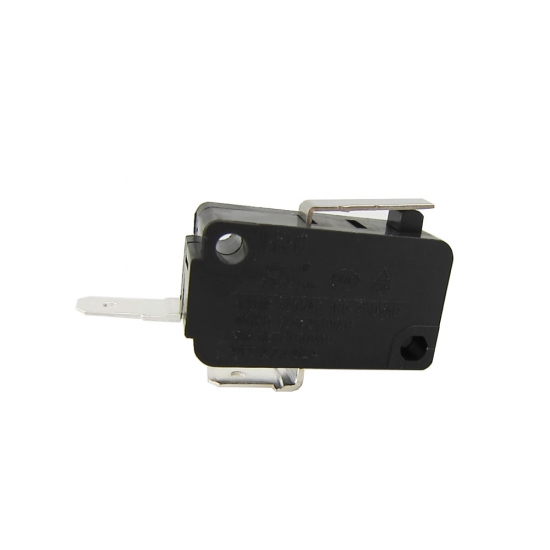

micro switch 5A 125/250VAC

ENEC  kw4as 25t125 5e4 micro switch 5A 125/250VAC

  • Brand:

    Gangyuan

  • Item NO.:

    G20-16GN15-150

  • Order(MOQ):

    1000pcs

  • Payment:

    100% T/T Before Production

  • Product Origin:

    Zhejiang, China (Mainland)

  • Color:

    black

  • Shipping Port:

    Ningbo/Shenzhen

  • Lead Time：

    7 Working Days after payment
Contact Us

  • Product Detail

ENEC kw4as 25t125 5e4 micro switch 5A 125/250VAC



Product Description:



Application

Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.



Item No.
G20-16GN15-150
Dimension
29mmx10.1mm
Contact resistance
≤100mΩ
Dielectric Withstanding Voltage
 AC 1500V 1Minute
Operating temperature
-25℃+125℃
Operating force
150±50gf
Life expectancy
50,000Cycles
Rating
16A 125V/250VAC

Dimension:
