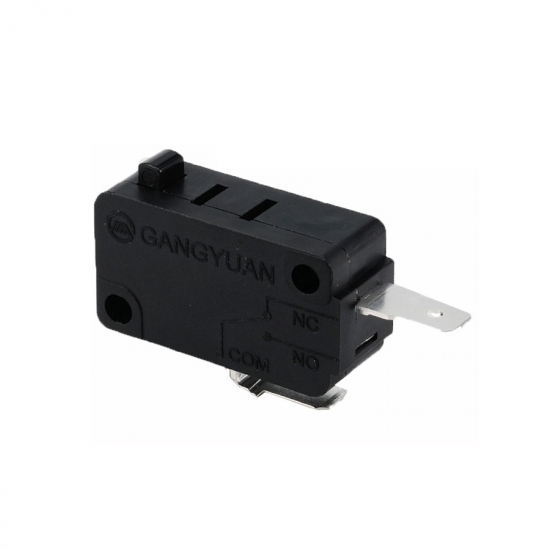

Micro switch Pin Plunger, SPST-NO

3~26A heavy current micro switch, the G20 Series snap-action switch is UL certified.

Brand:
Gangyuan
Item NO.:
G20-16GV-150
Order(MOQ):
1000pcs
Payment:
100% T/T before production
Product Origin:
Zhejiang
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 working days

Product Detail

Product item:Micro switch Pin Plunger, SPST-NO

Feature：

Variety actuator styles
Left angle PC pin
1,000,000 mechanical life cycles
UL certificate

General characteristic：

Rating	16A，125/250V AC
Operation Temperature	-25℃±125℃
Electrical life	50,000 cycles
Mechanical life	100,000 cycles
Operation force	150±50gf（MAX）
Contact resistance	≤200mΩ MAX

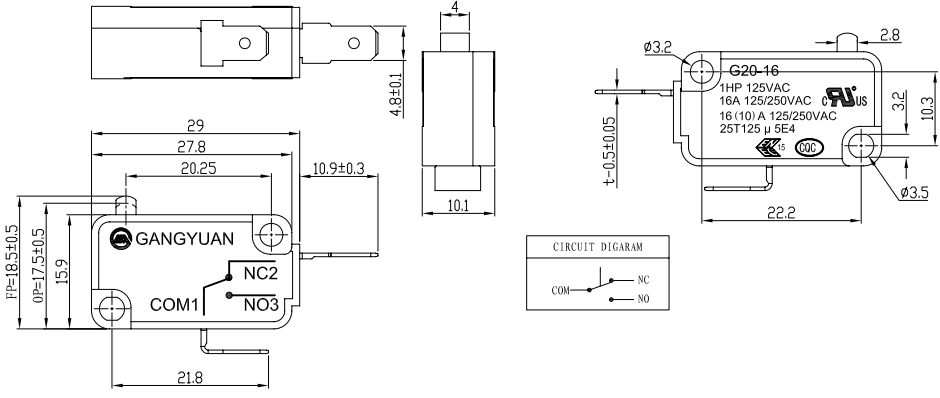

Dimension:

Advantages:

1)Self-cleaning structure of contact；

2)Adaptation to low speed operation;

3)To adapt to a varity of installation;

4)micro gap structure and 3mm gap structure;

5)a variety of long-term use of the temperature range available.
