Home Switch Micro switch G20 Series mini micro switch
micro switch

mini micro switch

10A/15a 250v ip67 mini  micro switch 10t85 5e4 electronic

  • Brand:

    Gangyuan

  • Item NO.:

    G20-16GN03-70

  • Order(MOQ):

    1000pcs

  • Payment:

    100% T/T Before Production

  • Product Origin:

    Zhejiang, China (Mainland)

  • Color:

    black

  • Shipping Port:

    Ningbo/Shenzhen

  • Lead Time：

    7 Working Days after payment
Contact Us

  • Product Detail

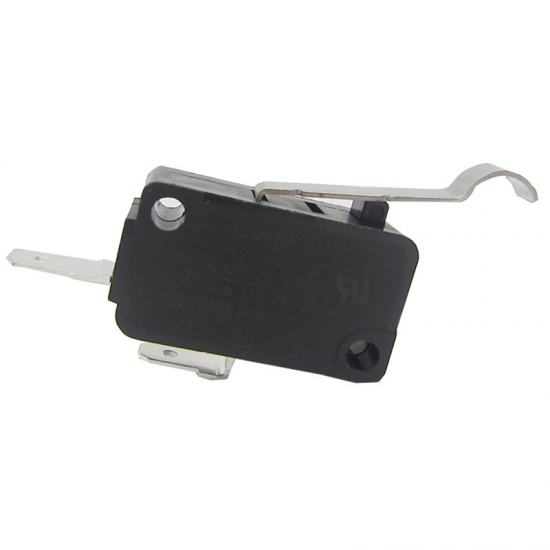

10A/15a 250v ip67 mini micro switch 10t85 5e4 electronic



Product Description:

P/N G20-16EN03-70-07
Lever length at your request
Rating 125/250VAC   16A
Operating Force 70±50gf
Life Time 50,000 Cycles
Operating Temperature Range -25℃~+125℃
Dielectric Withstanding Voltage 1500V AC 1Min
Certificate UL,ENEC,CQC
Circuit Code SPST
Insulation Resistance ≥100MΩ
Contact Resistance ≤200mΩ
Soldering Temperature 260±5℃ 5s
