Home Switch Micro switch G20 Series Mini 6a On Off T85 5e4 Micro Switch

Mini 6a On Off T85 5e4 Micro Switch

G20-06EN-150C-42: 6A 125/250VAC, 150±50gf, 10,000 cycles micro switch.

  • Brand:

    Gangyuan
  • Item NO.:

    G20-06EN-150C-42
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Ningbo/ Shenzhen
  • Lead Time:

    5-7 working days
  • Product Detail

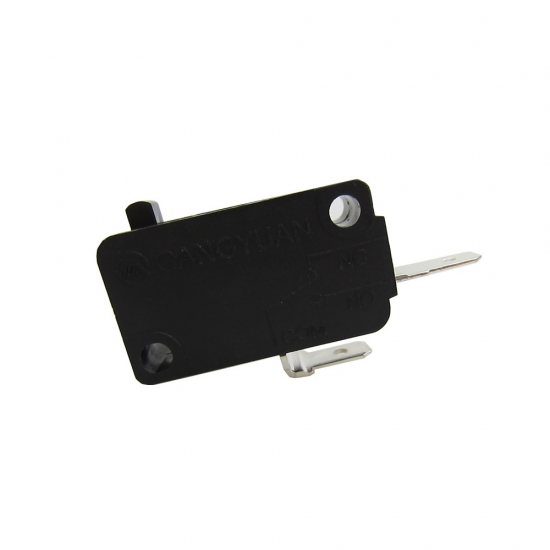

Mini 6a On Off  T85 5e4 Micro Switch


Basic Information

P/N  G20-06EN-150C-42
Rating current
6A 125/250VAC
Operating force
150±50gf
Life cycles
10,000 cycles
Operating Temperature Range

-25℃~+125℃

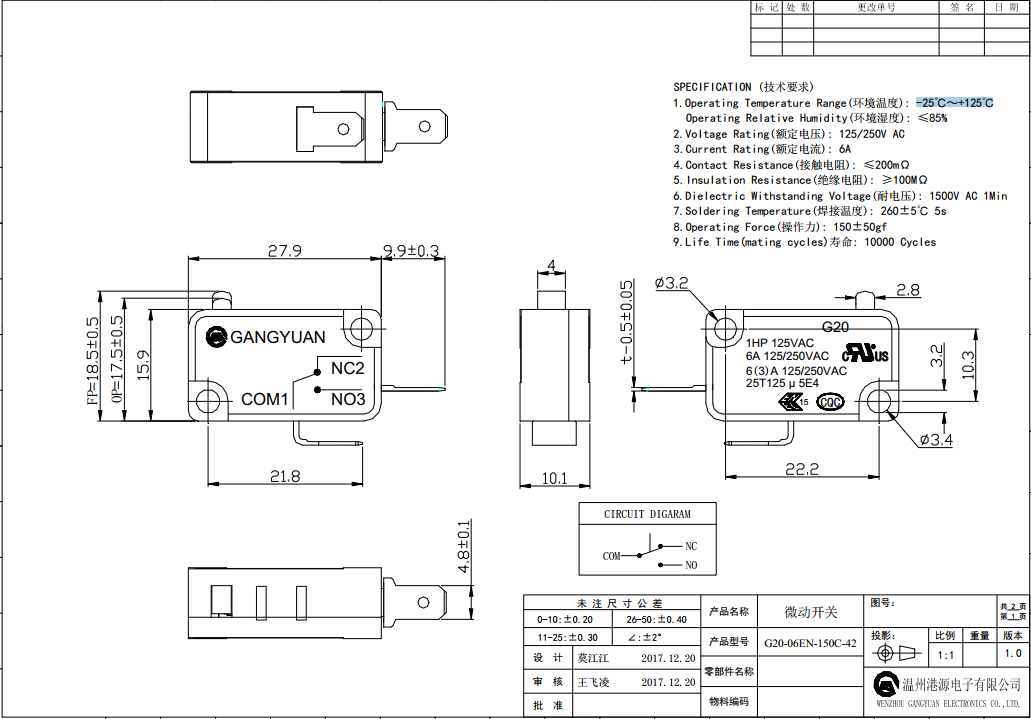

Dimension




Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.


Application

Micro switch can be widely used in computer mouse, security products, doorbells, automotive electronics, communication equipment, military products, test equipment, gas water heaters, gas water heaters, gas stoves, small appliances, microwave ovens, rice cookers, float equipment , medical equipment, building automation, power tools and general electrical and radio equipment.


Leave A Message

If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
