Wenzhou Gangyuan Electronics Co.,Ltd.
Micro switch operating force choose: 200gf/150gf/100gf/70gf
Brand:
GangyuanItem NO.:
G20-16CM27-70-1166Order(MOQ):
500pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
27.80mm x 15.90mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X16 (10)A 125/250VAC 25T125 5E4 rice cooker micro switch
The pressure handle can be customized according to customer requirements
Micro switch datasheet
| Product type | Micro switch |
| Rating | 16A 125/250V AC |
| Contact resistance |
≤200mΩ |
| Insulation resistance |
≥100MΩ |
| Operating force | 70±30gf |
| Life | 10000 cycles |
| Operating temperature range | -25℃~+125℃ |
| Operating relative humidity |
≤85% |

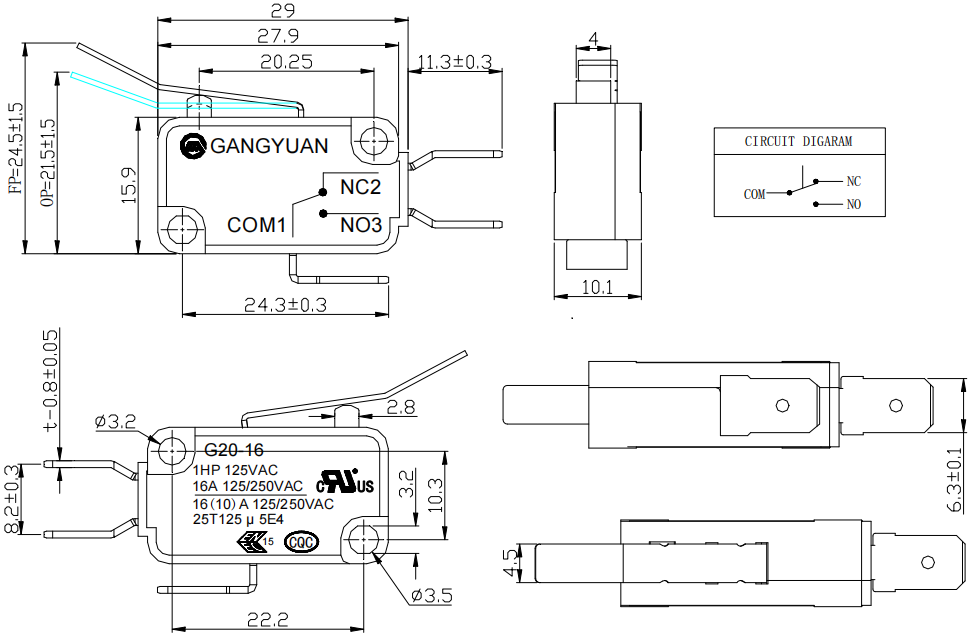

Dimension
Product features
1. Type:G20 Micro switch
2. Circuit Code: SPDT
3. Lever Type: With Curved handle
4. Terminal Style: 6.3x0.8mm Quick connect terminal
Micro switches application
Such as: Washing Machines– Micro switches are used at the power supply to turn the machine off/on, they are used for detecting switching power, angle of drums and filter.
They will detect the door open-close status and are used on the control panel buttons.
What is an electrical snap switch?
A manually operated electric switch with a blade which makes contact with a snap and in which the speed of making or breaking of the circuit is independent of the speed of operation of the switch.
FAQ
1. Q: Are you Micro Switch manufacturer / factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About micro switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
