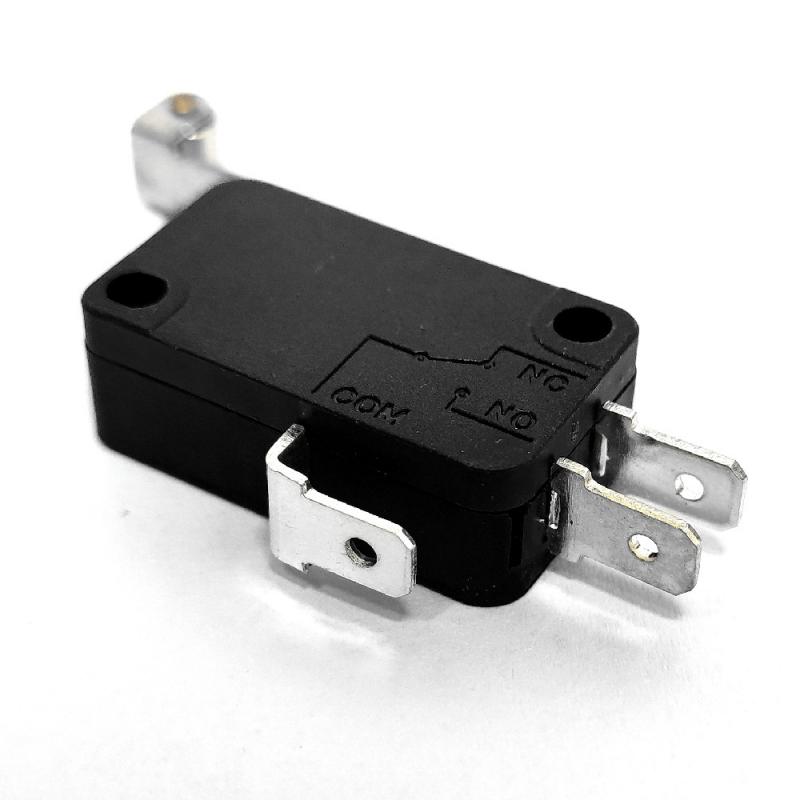

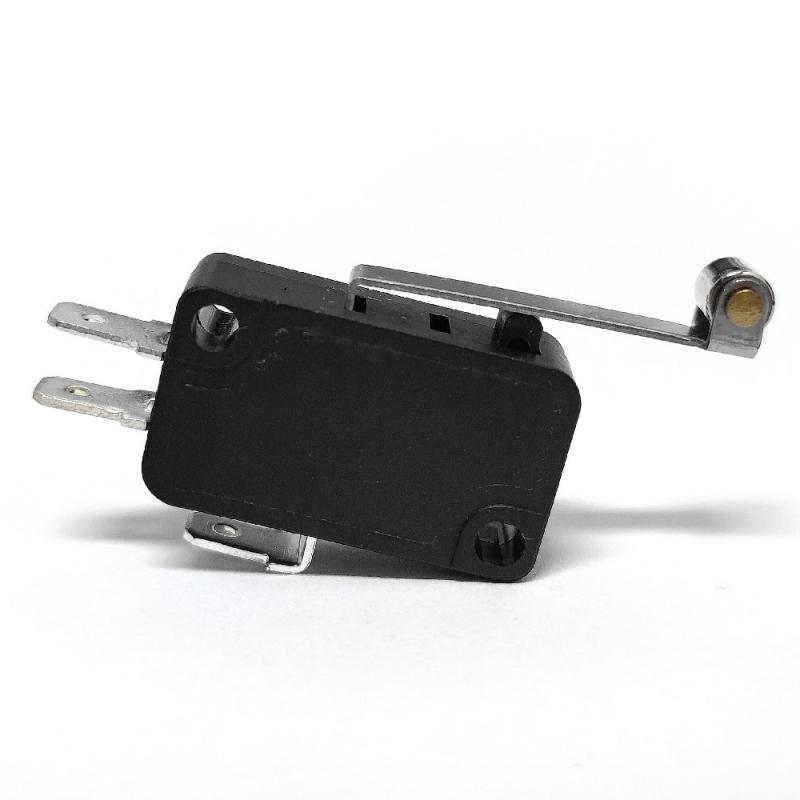

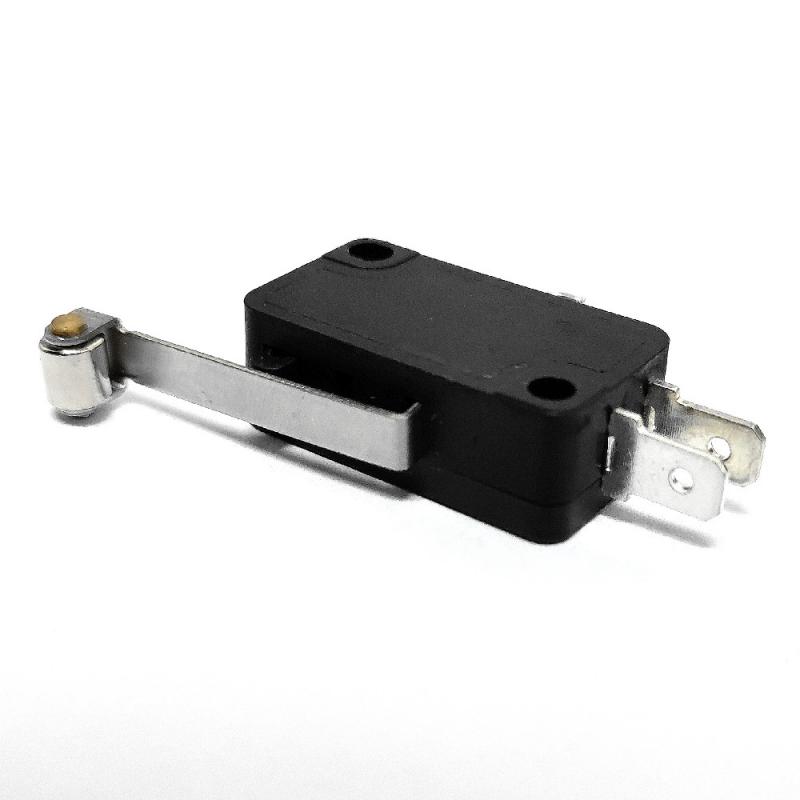

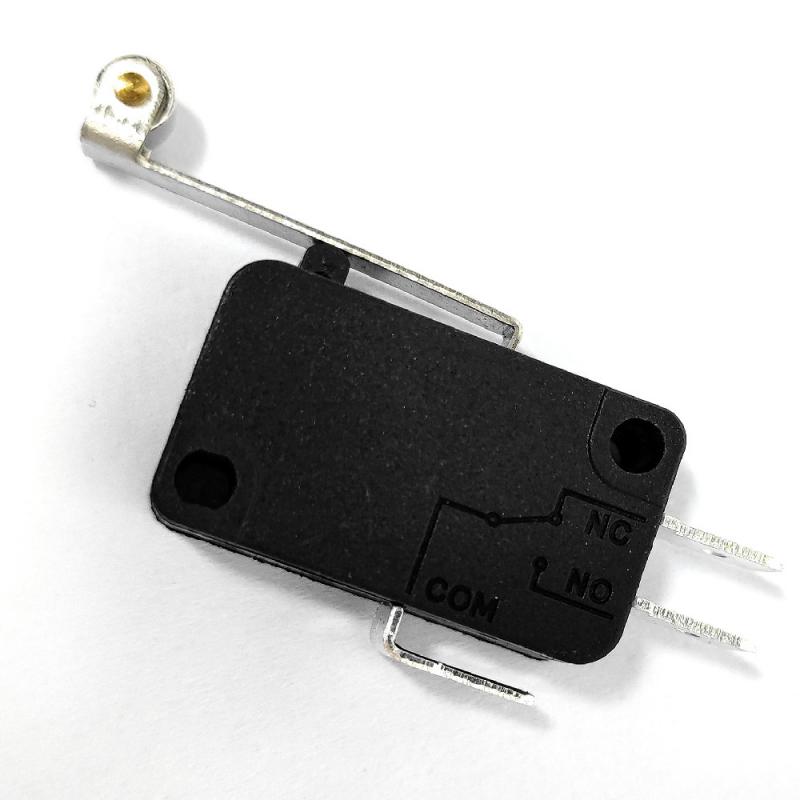

Hinge roller lever micro switch

A miniature snap-action switch, frequently known as a micro switch, is an electric switch that is actuated by very little physical force, through the use of a tipping-point mechanism, sometimes called an "over-center" mechanism

Brand:
Gangyuan
Item NO.:
G20-16EM06-150(GY)
Order(MOQ):
500
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 working days for payment

Outline (mm)
27.80mm x 15.90mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

16a roller lever SPDT snap action micro switch factory

Parameter

Operating Temperature Range: -25℃～+125℃

Operating Relative Humidity: ≤85%

Voltage Rating: 125/250V AC

Current Rating: 16A

Contact Resistance: ≤50mΩ

Insulation Resistance: ≥100MΩ

Dielectric Withstanding Voltage: 1500V AC 1Min

Soldering Temperature: 260±5℃ 5s

Operating Force: 15-500gf

Life Time(mating cycles): 10000 Cycles

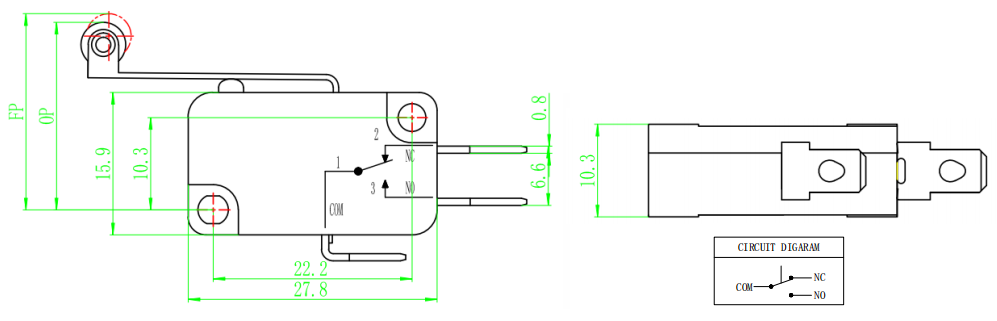

Micro Switch Size

What is the difference between micro switch and limit switch ?

Microswitch, a type of limit switch
A microswitch has 2 limit switches operating together and sharing a common terminal. One limit switch is normally open and the other is normally closed.

To be technically correct, the switch configuration is Single Pole Double Throw, or commonly referred to as SPDT.

What are the 4 types of switches ?

The types of switches are classified into four types namely:

SPST micro switch (Single Pole Single throw)
SPDT micro switch (single pole double throw)
DPST micro switch (double pole, single throw)
DPDT micro switch (double pole double throw)

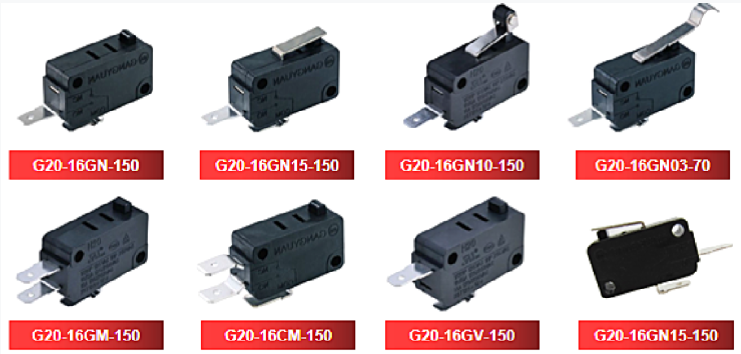

Related Products

Other choose

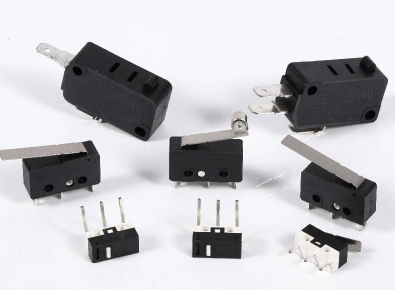

Choose according to different sizes

1. Mouse micro switch type: 12.8x6.5x5.8mm

2. Middle micro switch type: 19.8x10.7x6.5mm

3. Big micro switch type: 27.8x15.9x10.3mm

Related Tags :

16a micro switch 250v micro switch 3 terminal Soldering terminal types micro switch
