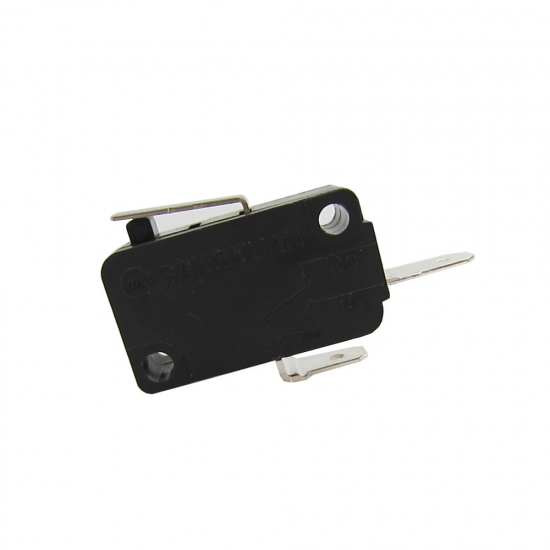

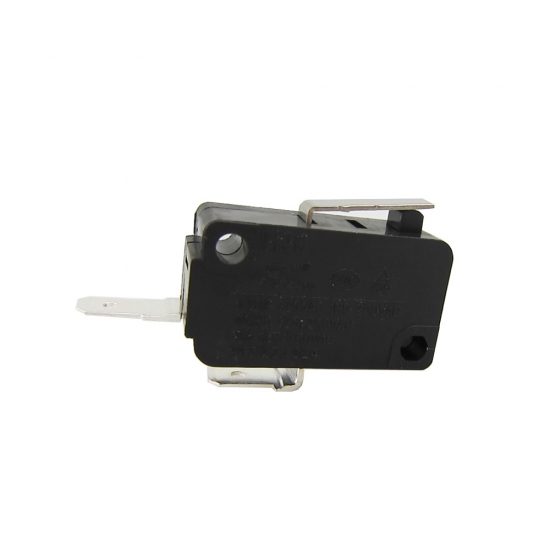

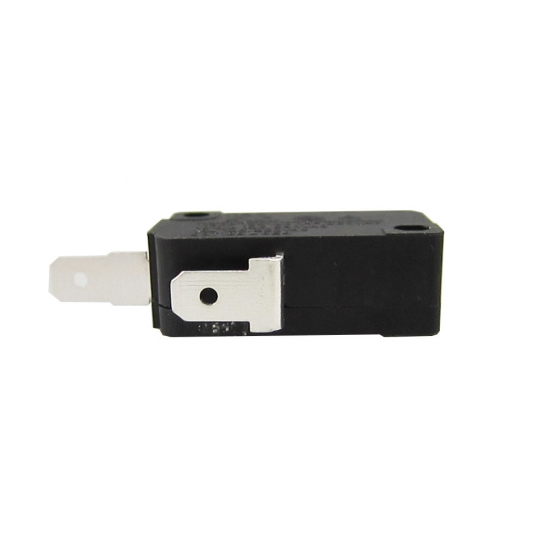

High sensitive micro switch SPST switch T125 5E4 with short lever
Brand:
GangyuanItem NO.:
G20-16GN15-150Order(MOQ):
100 pcsPayment:
T/TProduct Origin:
zhejiang/shenzhenColor:
blackShipping Port:
ningbo or shenzhenLead Time：
7-14 working days for paymentOutline (mm)
27.80mm x 15.90mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4Xspst shift lever pressure push button micro switch china
Basic Information
Product type
Micro switch
Rating
16A 125/250V AC
Contact resistance
≤200mΩ
Insulation resistance
≥100MΩ
Operating force
150±50gf
Life
10000 cycles
Operating temperature range
-25℃~+125℃
Operating relative humidity
≤ 85%

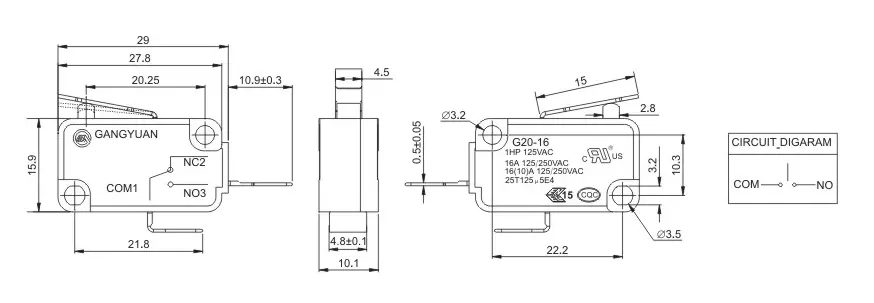

Dimension
Product features
1. Type: G20 Micro switch
2. Circuit Code: SPST( Normally open )
3. Lever Type: Short lever ( straight handle )
4. Electrical Rating: 16(10) 125/250vac,5e4.25t125
Our advantage
1. The factory has more than 20 years of experience in the field of switch manufacturing.
2. Variety of categories. More than 2000 models.
3. Good quality. Using raw materials imported from Japan and South Korea.
More than 85% of product automated manufacturing coverage.
4. Excellent R&D team, clients design requests are welcome.
5. Two thousands invention patents and 47 utility model patents.
6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
8. After-sales service team. Global radiation multiple service outlets.
Application
Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About micro switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
