Wenzhou Gangyuan Electronics Co.,Ltd.

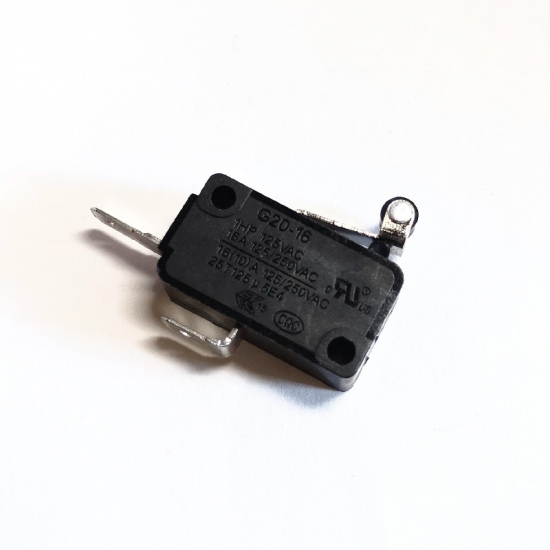

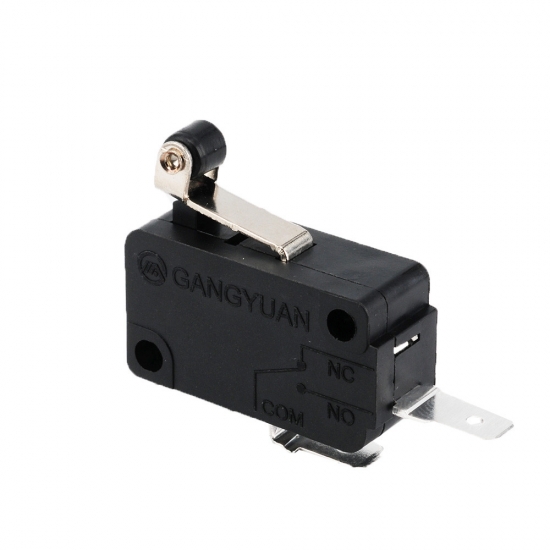

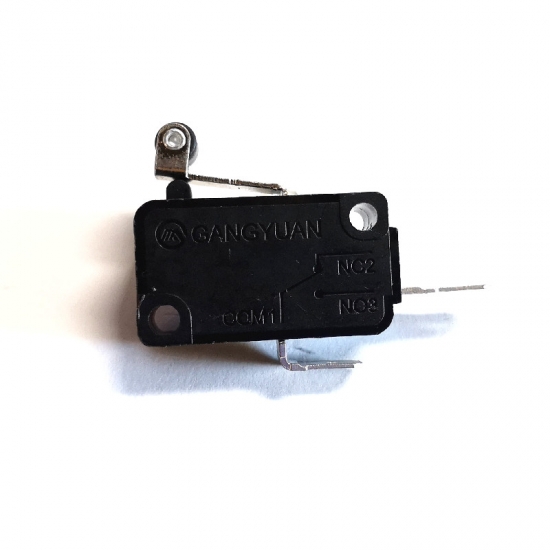

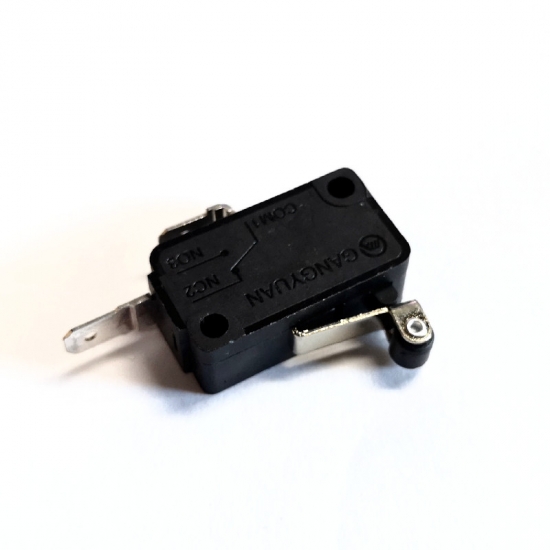

ELECTRONIC COMPONENTS: Microswitch, Snap Action, Hinge Roller Lever, SPST, Quick Connect, 16A, 250 VDC. Terminal type:4.8x0.5mm ( Quick connect )
Brand:
GangyuanItem NO.:
G20-16EN06-150-43Order(MOQ):
100pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 Working Days after paymentOutline (mm)
27.80mm x 15.90mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X16a 25T125 μ 5E4 circuit spst NO safety micro switch
Micro Switch Push button, Global Safety Certification, 24Hrs Service & Online Quotations. China Micro Switch, Switch Manufacturer. Contact Us! Fast Delivery
Basic Information
Product type
Micro switch
Rating
16A 125/250V AC
Contact resistance
≤200mΩ
Insulation resistance
≥100MΩ
Operating force
150±50gf
Life
10000 cycles
Operating temperature range
-25℃~+125℃
Operating relative humidity
≤ 85%
Dimension
Product features
1. Type: G20 Micro switch
2. Circuit Code: SPST( Normally open )
3. Micro switch Lever Type: With roller lever
4. Electrical Rating: 16(10) 125/250vac,5e4.25t125
Our advantage
1. The factory has more than 20 years of experience in the field of switch manufacturing.
2. Variety of categories. More than 2000 models.
3. Good quality. Using raw materials imported from Japan and South Korea.
More than 85% of product automated manufacturing coverage.
4. Excellent R&D team, clients design requests are welcome.
5. Two thousands invention patents and 47 utility model patents.
6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
8. After-sales service team. Global radiation multiple service outlets.
Application
Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About micro switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
This Micro Switch is free from overtravel restrictions, permit easy setting
3~26A heavy current micro switch, the G20 Series snap-action switch is UL certified.
Micros witches have three terminals labelled C, NO, and NC, standing for Common, Normally Open, and Normally Closed.
16A 125/250VAC Micro switches ,adapt to a variety of installation.
G20-06EN-150C-42: 6A 125/250VAC, 150±50gf, 10,000 cycles micro switch.
High quality10A 250VAC 5e4, 25t125, 2pin electronic micro switch
High quality mini cherry Micro switch 5a 125/250vac switch 250v 5e4 t125
125/250vac 16A SPST-NO Electronics 125/250VAC mini Micro Switch
