Home Switch Micro switch G10 Series micro switch 5A 125/250VAC

micro switch 5A 125/250VAC

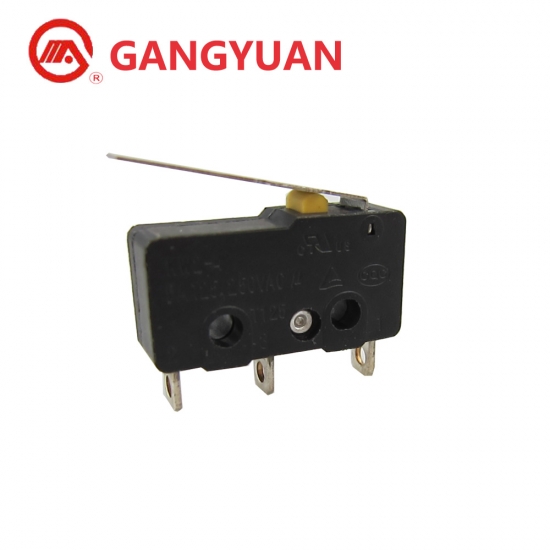

Long Straight Lever Mini Micro Switch 5A 125/250VAC

  • Brand:

    Gangyuan
  • Item NO.:

    KW2-4-03N-40-2
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Outline (mm)

    20.00mm x 10.00mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail


Long Straight Lever Mini Micro Switch 5A 125/250VAC


Basic Information

micro snap switch.jpg

Application

Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.


Item No.
KW2-4-03N-40-2
Dimension
19.8mmx6mm
Contact resistance
≤100mΩ
Insulation resistance
 AC 500V 1Minute
Operating temperature
-25℃+85℃
Operating force
40±10gf
Life expectancy
1,000,000Cycles
Rating
AC 125V 5A/AC 250V 3A

Dimension

micro switch 5a.jpg

micro switch circuit symbol.jpgru micro switches.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
