Manufacture 3 Pin 1A 125V t85 Micro Switch

DMI-02PWL8.5--3: 1A 125VAC, 80±150gf, 5e4 mini micro switch.

Brand:
Gangyuan
Item NO.:
DMI-02PWL8.5--3
Order(MOQ):
1000
Payment:
T/T before mass production
Product Origin:
China
Color:
Black and white
Shipping Port:
shenzhen/ ningbo
Lead Time：
5-7 working days depends on Qty

Outline (mm)
12.80mm x 6.60mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

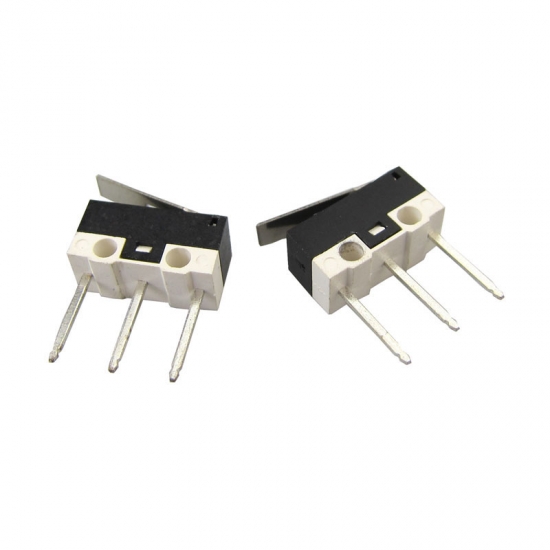

Gangyang Manufacture 3 Pin 1A 125V t85 Micro Switch

Basic information

Rated load	AC 125V 1A	Operating temperature	-25°C+85°C
Contact resistance	≤100mΩ	Insulation resistance	AC 500V 1Minute
Operating force	80±15gf	Mechanical life	500,000 Cycles

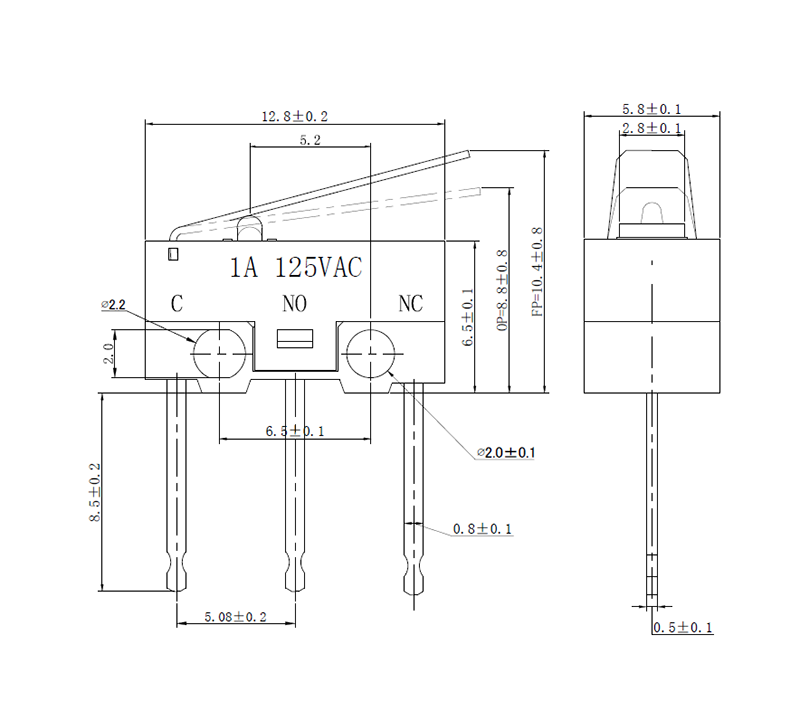

Dimension

Appliance

Micro switch can be widely used in computer mouse, security products, doorbells, automotive electronics, communication equipment, military products, test equipment, gas water heaters, gas water heaters, gas stoves, small appliances, microwave ovens, rice cookers, float equipment , medical equipment, building automation, power tools and general electrical and radio equipment.
