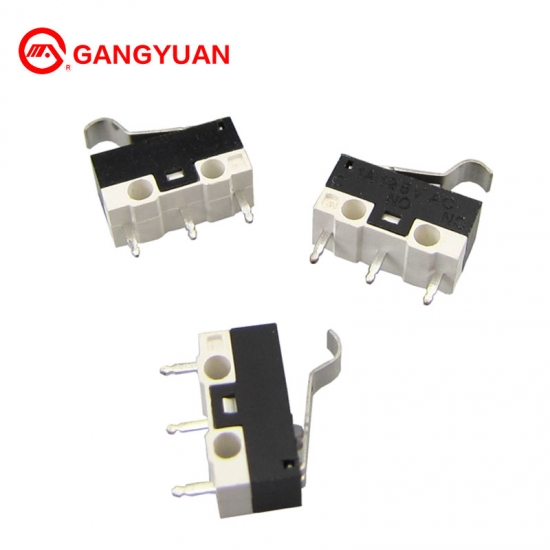

1A Actuator Micro Switch

1A Actuator Micro Switch Three Pins

Brand:
Gangyuan
Item NO.:
DM1-05PW-30-3
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black and white
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Outline (mm)
12.80mm x 6.60mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

1A Actuator Micro Switch Three Pins

Basic Information

Model Name:	Micro Switch
Model No.:	DMI-02CWL-30-3
Dimension:	12.8mm*5.8mm
Operating force:	80±15gf
Operating temperature:	-25°C+85°C
Mechanical life:	500,000 Cycles
Rated load:	AC 125V 1A
Insulation resistance:	AC 500V 1Minute
Withstand voltage:	250V AC / 1 min
Contact resistance:	≤100mΩ
Features:	Features: left and right feet

Dimension

surface mount micro switch.jpg

micro switch actuator.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
