Wenzhou Gangyuan Electronics Co.,Ltd.

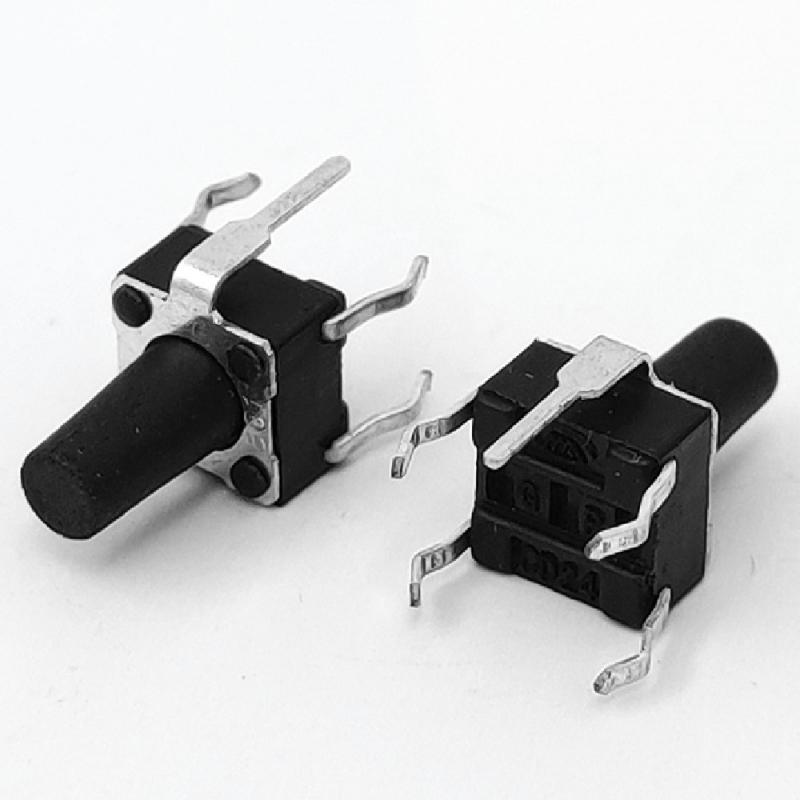

The direct-insert pins of the touch switch have the function of being inserted into the holes of the circuit board, and are welded to the circuit board through the welding part on the pins to achieve circuit connection. The welded pins are directly connected to the circuit board through the welding process.
Brand:
GangyuanItem NO.:
KAN0621-0951BOrder(MOQ):
10pcs samplesPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-15 working daysOutline (mm)
6.00mm x 6.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

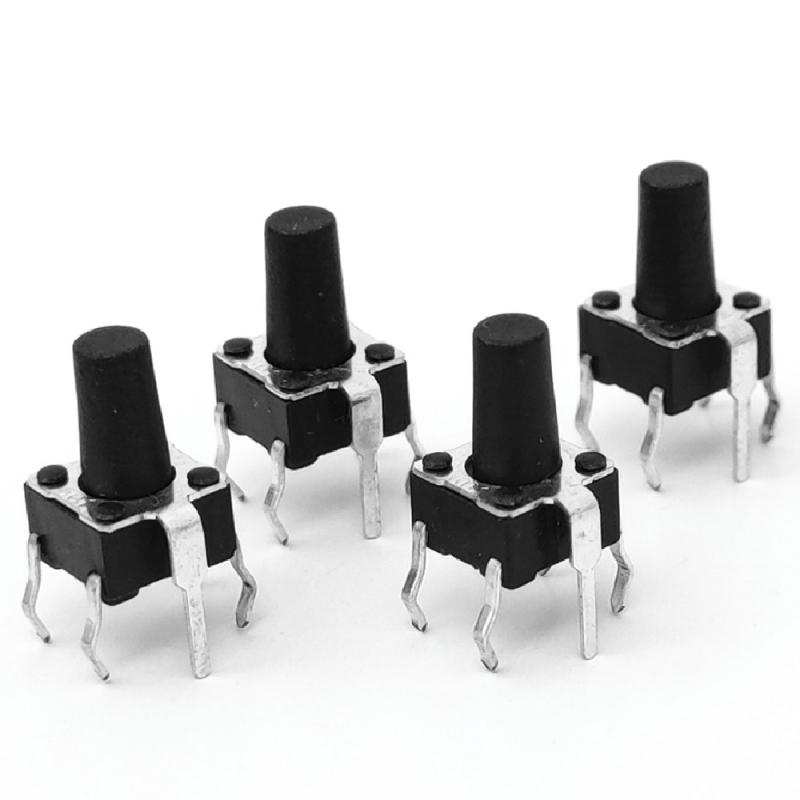

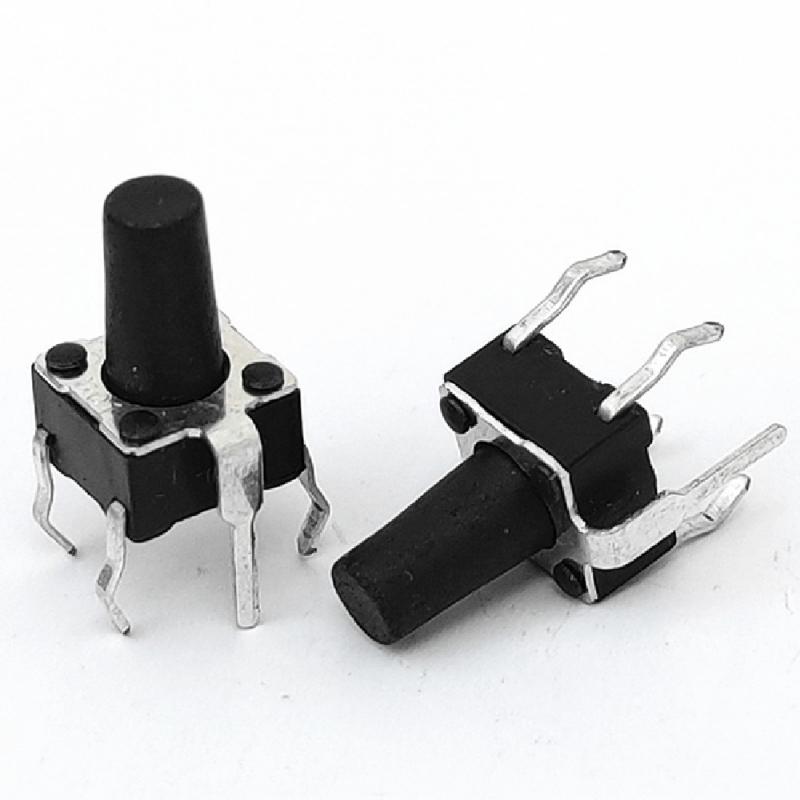

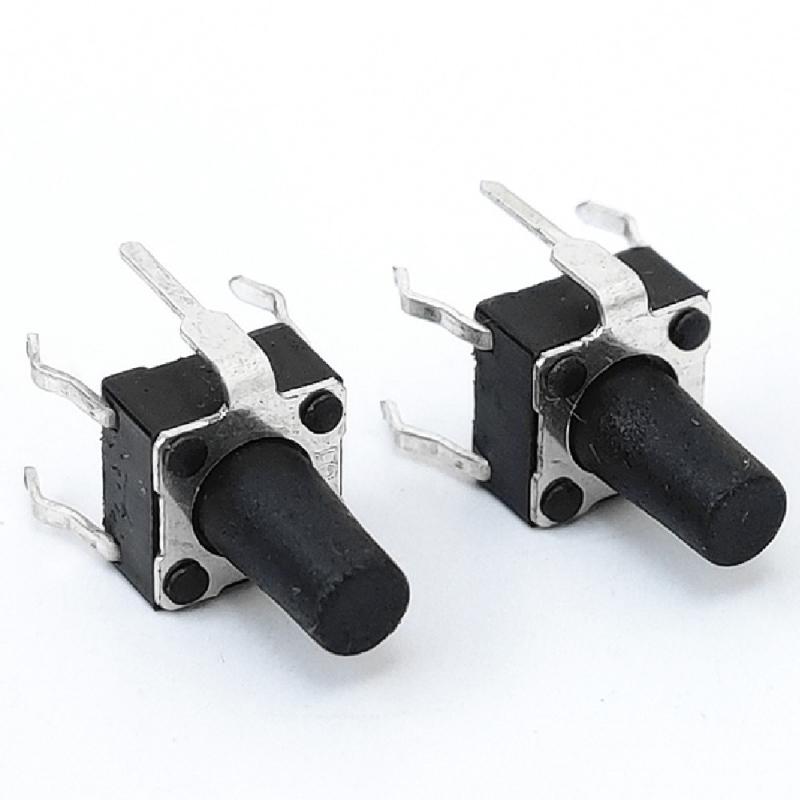

IP4XReset PC pin SPST-NO vertical tact switch 6*6
Basic Information
Type: 6x6mm tactile switch 4 pin
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Life: 80,000cycles
Product height: 9.5mm
Benefits
• Compact size 6x6mm
• Various operating heights
• Multiple options for operating force
• Button color customization
• Rohs Compliant and compatible

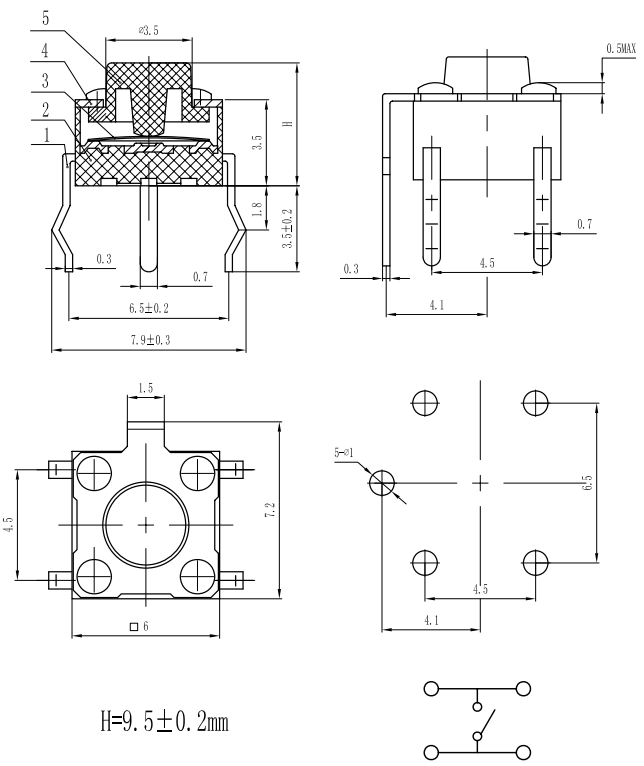

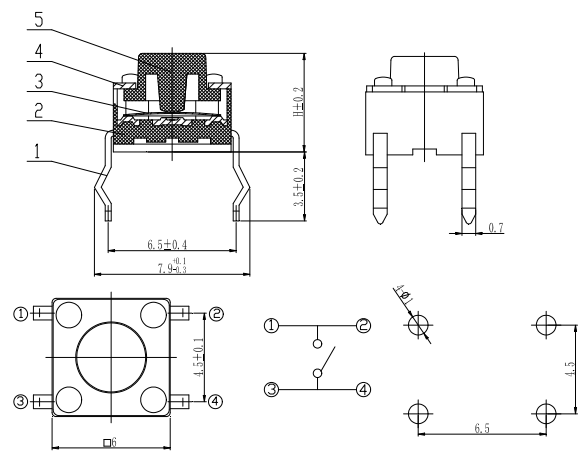

6x6 tact switch datasheet
Termination:
T Straight with ESD PIN
S Straight
Packing
| Product Number | Inner Packing | Carton Size | Quantity(PCS) | N.W | G.W |
| KAN0611 (4.3H-5.5H) | 1000pcs/bag, 20box/carton | 45*35*28CM | 60000 | 18KG | 20KG |
|
KAN0611 (6H-17H) |
1000pcs/bag, 20box/carton |
45*35*28CM |
40000 | 13KG | 15KG |
|
KAN0611 (18H-21H) |
1000pcs/bag, 20box/carton |
45*35*28CM |
20000 | 9KG | 14KG |
What is a tact switch ?
A tact switch, also known as a push button switch or a tact switch, is a switch that can turn a circuit on and off with a slight touch.
It has the characteristics of small size, light weight, long life, and easy operation. The touch switch is mainly composed of a button, contact, pin,
and shell. The pin is the key component connecting the touch switch to the circuit.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
KAN0656: DC 12v 50mA, smd, water resistance type tact switch.
KAN0616: Dip switch, water resistance IP67, 6*6mm mini tact switch.
KAN0611: DC 12v 50mA, 6*6mm, 4 pins tact switch.
6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch.
12V IP67 waterproof switch push button tact switch china, 4pin dip tact switch, 100,000/200,000 cycles for optional,use for Kitchen appliances, smart toilet covers. Small appliances, white electricity, black electricity require a variety of operational switches for waterproof construction.
This kind of switch is silent, often used in car industry.
Item: KAN0641 Size: 6*6*H (4.3-18mm) Rating: 12VDC 50mA Operating life: 60,000/ 80,000/ 100,000 cycles Operating force: 100gf, 160gf, 260gf MOQ: 1000
KAN0673: 6×6mm, side horizontal type tact switch.
