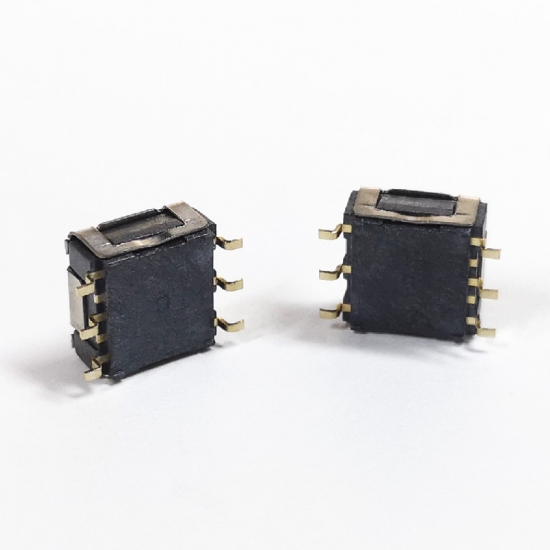

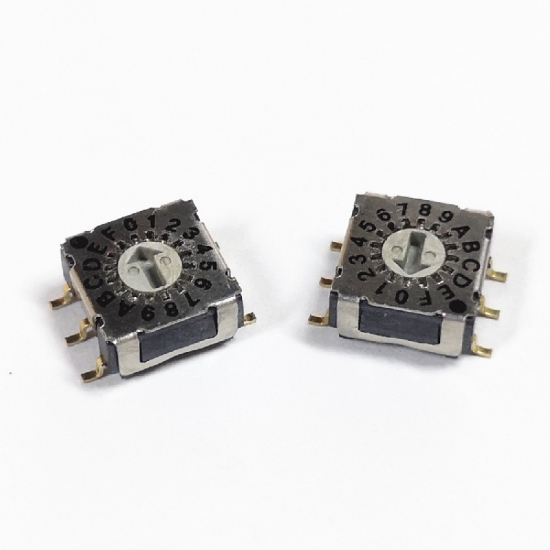

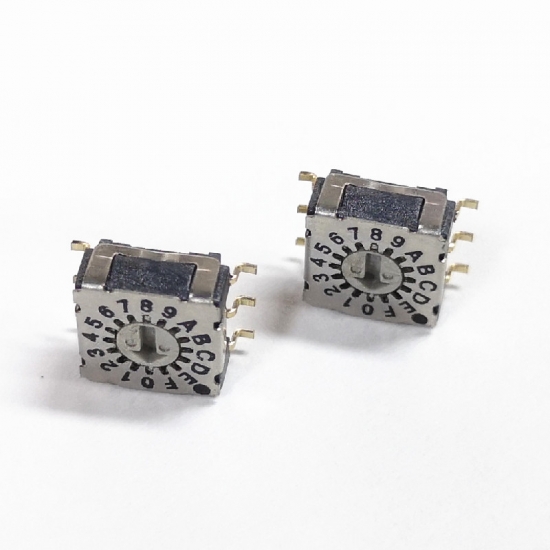

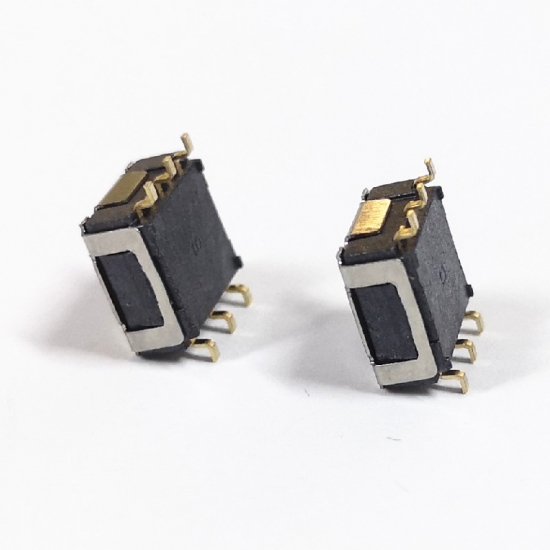

The shell of the dial code product is a metal material. There are 16 code points for adjustment.
Brand:
GangyuanItem NO.:
KBM-16SOrder(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
7.40mm x 7.40mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
No IP Ratingsupplier 7.4mm rotary coded smd dip switch
Dip switch datasheet
Type: rotary dip switch
Gear: 16 position
Operating force: 120gf ± 30gf Max
Contact resistance:80mΩ Max
Insulation resistance: 100MΩ Min
Life: 25000 steps
Sealing: IP66

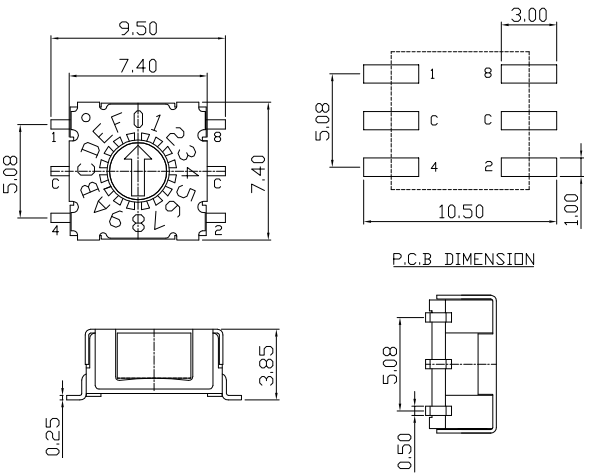

Dimension
what is a dip switch ?
Dial switch (also called DIP switch, toggle switch, overclocking switch, address switch, dial switch, digital switch, thumb switch) is an address switch used for operation and control. In layman's terms, it is an address switch that can be dialed by hand. There are many miniature switches that move, so they are usually called DIP switches.

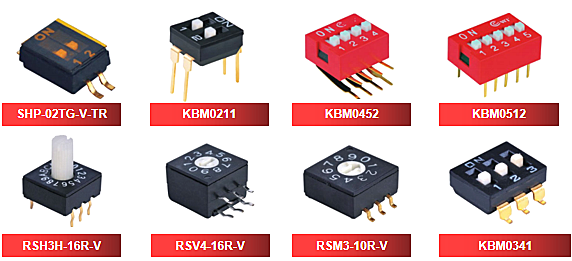

Application
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, switch manufacturer. three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
