Home Switch DIP switch DPL Series Piano Type Electronic DIP Switch

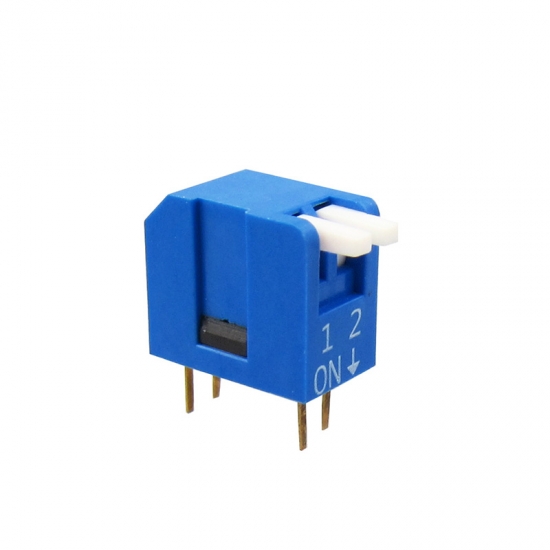

DPL Series Piano Type Electronic DIP Switch

Side Push Dip Switch SPST from 1 to 12  Position Through Hole, Right Angle Piano Actuator 50mA 24VDC.



  • Brand:

    Gangyuan
  • Item NO.:

    DPL Series
  • Order(MOQ):

    2500pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Red, Blue, Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days depend on order quanti
  • Product Detail


Product Item: DPL Series Piano Type Electronic DIP Switch


Feature

Side actuated

Gold contact for high reliability

Red blue and black color options

2.54mm pitch

Long or short key choices

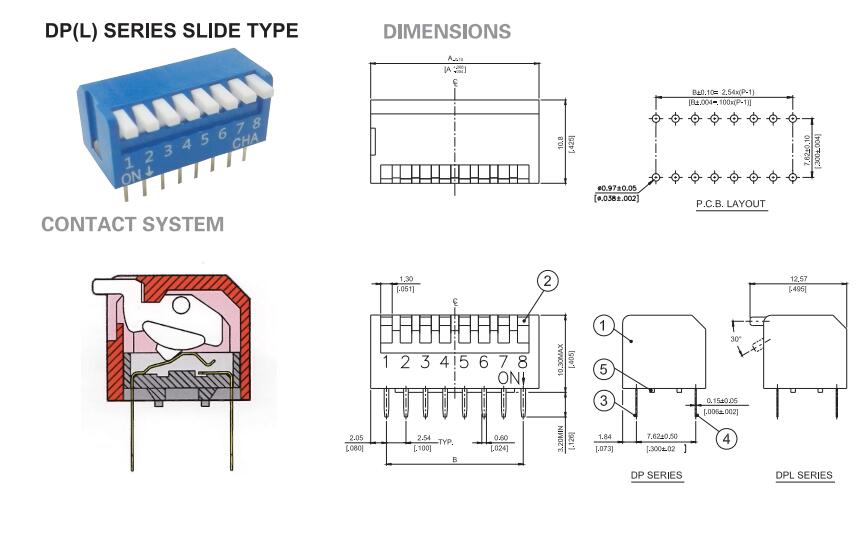

Dimension

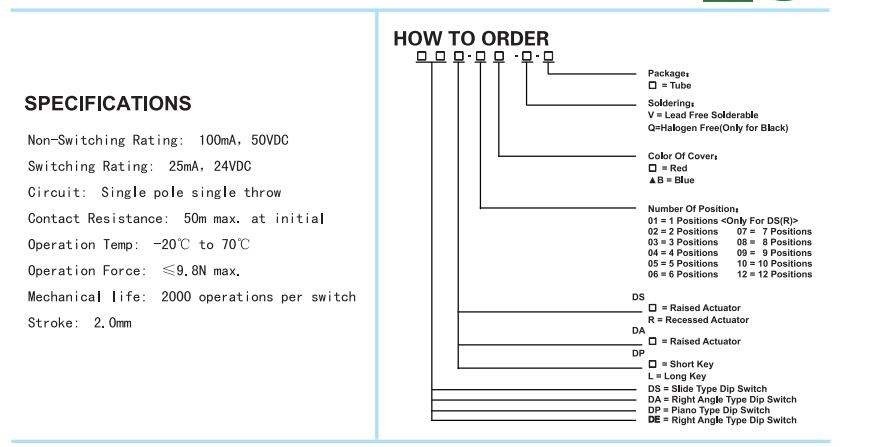

Order Code
