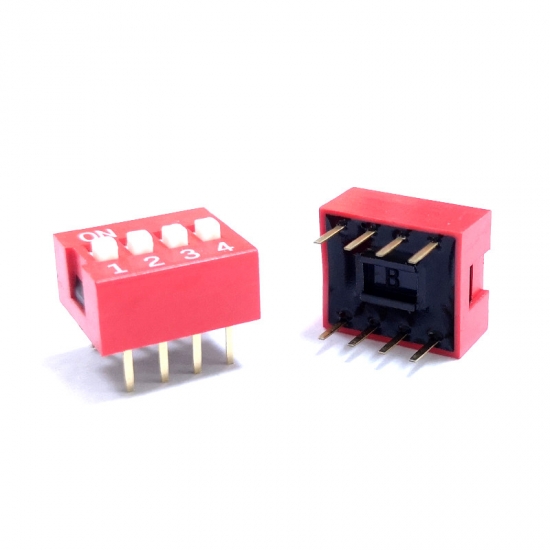

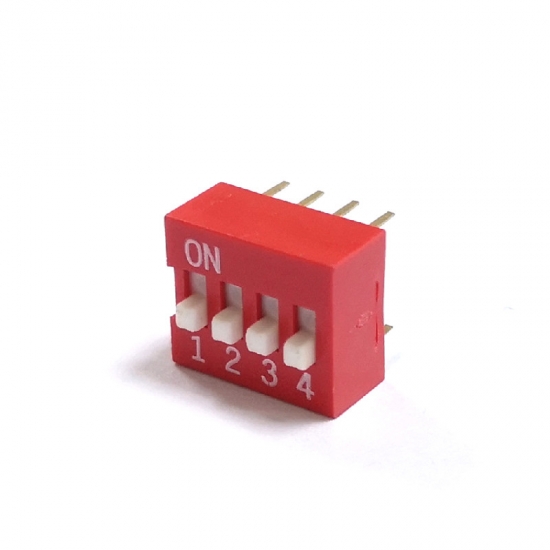

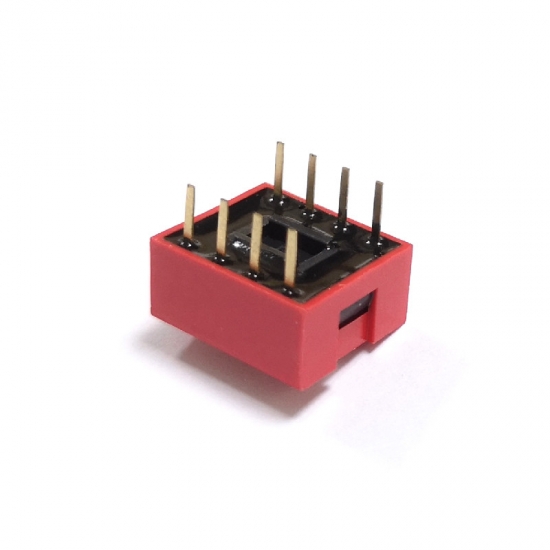

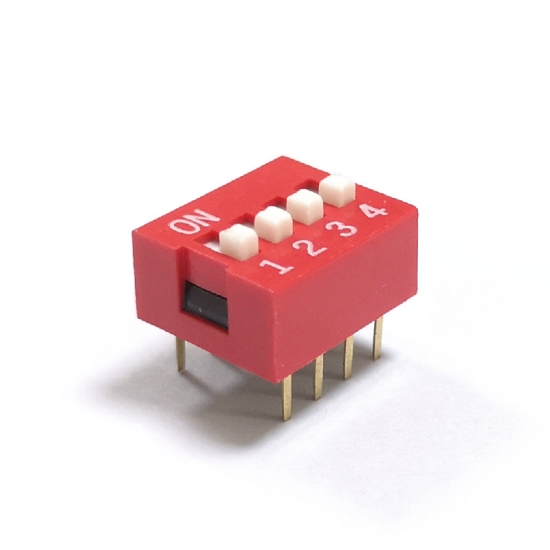

4 Posiciones Dip Switch

pcb type 4 posociones chamberlain dip switch

The cleaning method of the DIP switch is ultrasonic. When using steam cleaning, the temperature does not exceed 55℃.

 Dip switch datasheet

Type: Dip switch

Switching Rating: 25mA,24 VDC

Contact resistance: 50m max.at initial

Insulation resistance: (at 500VDC) 100MΩmm

Electrical Life: 3000 operations per switch 24VDC,25mA

Packing: 42 Tube

 Dip switch diagram

 what is a Dip switch used for ?

A DIP switch is a set of electrical switches packaged in a small box or housing. They are designed to be mounted on printed circuit boards to provide a range of electrical inputs to an electronic device based on the position of the individual switches. Typically, they are arranged in a line or circle (rotary DIP).

 Application

• automotive (air bags, heating/AC, door handles, column switches)
• aerospace (main cabin lights, flight attendant buttons)
• consumer (cell phones, headsets, remote controls, wearable electronics)
• medical (hearing aids, health diagnostics, portable equipment)
• industrial (control panels, instrumentation, power supplies)
• computer (keyboards)
• telecom/network equipment
• handheld applications (power and selection switches, volume control, keyfobs)

  FAQ

1. Q: Are you switch manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Do you have sales branch or  sales representative office?
A: Yes. Sales branch: Shenzhen、HongKong、TaiWan、Singapore.

Sales representative office: Beijing、Shanghai、Guangzhou、Wuhan、Huizhou、Korea、Malaysia、Brazil.

3. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. Generally, MOQ is 1,000pcs.

4. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.

5. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.

6. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

7. Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
