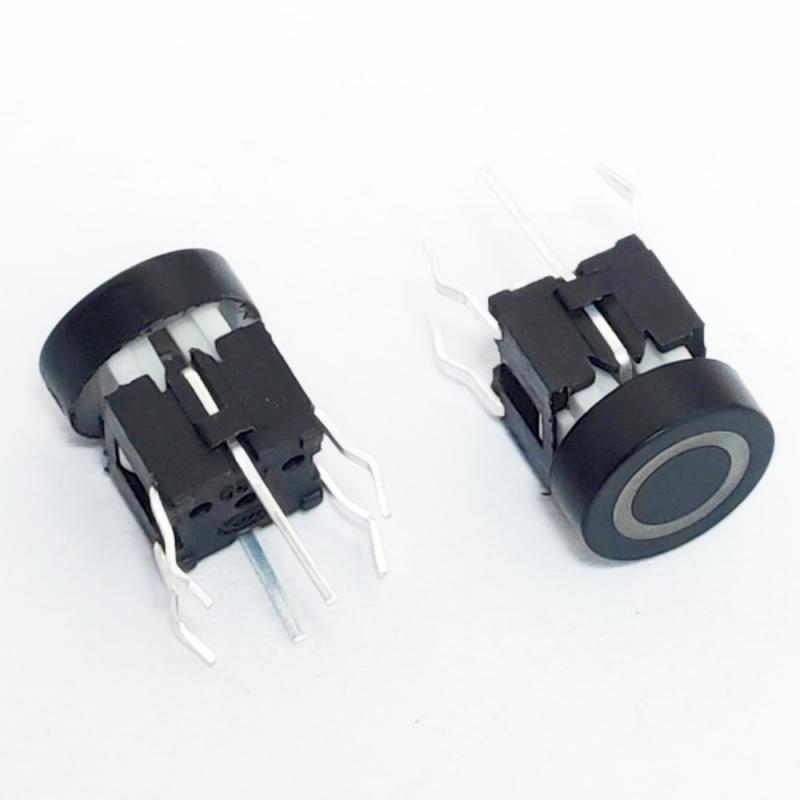

6*6mm SPST Momentary Illuminated Tact Switch

Illuminated tact switches are usually installed on PC boards or other circuit boards.

Brand:
Gangyuan
Item NO.:
KAN0713-0723C100-83M
Order(MOQ):
500
Payment:
100% before production
Product Origin:
Wenzhou
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7-15 working days

Outline (mm)
6.00mm x 6.00mm
Mounting Type
Through Hole
lllumination
llluminated
IP Rating
No IP Rating

Product Detail

Custom Button Cap 6 pin Terminal PCB Mount Illuminated LED Micro Tact Switch

Typical Specifications

Type: 6x6 Tact Switch With LED

Ratings: DC 12V 50mA（Max）DC 1V 10μA （Min）

Operating Force: 260±50gf

Full Travel: 0.25±0.15mm

Operation life: 1,000,000 cycles

Led Color: Blue

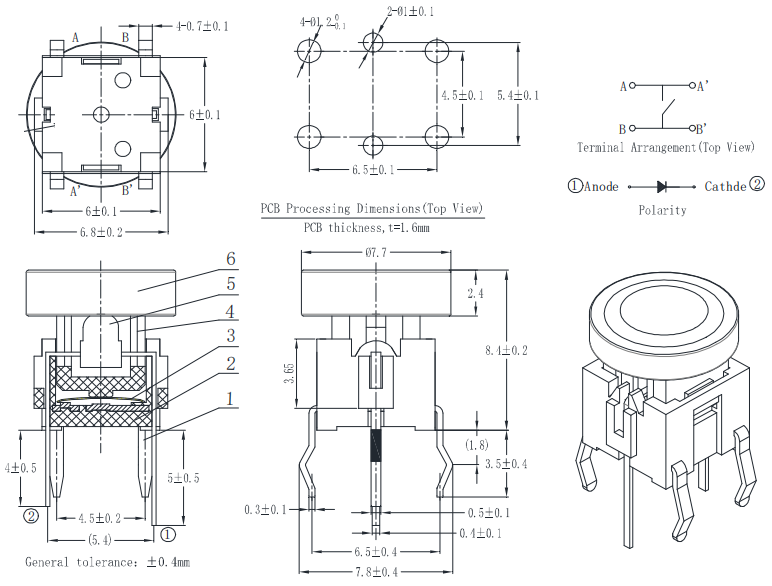

Tact switch schematic

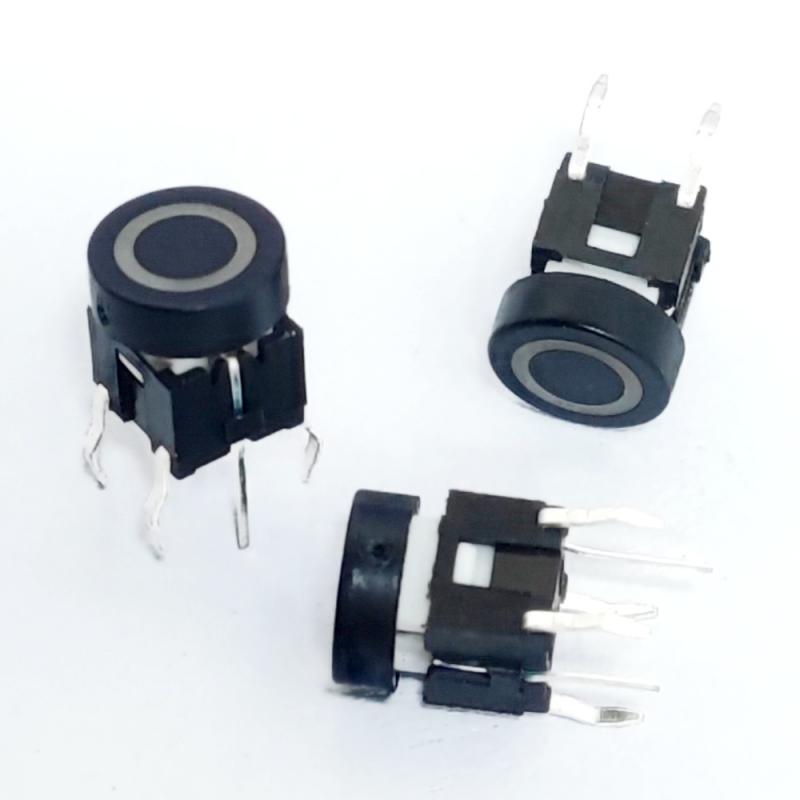

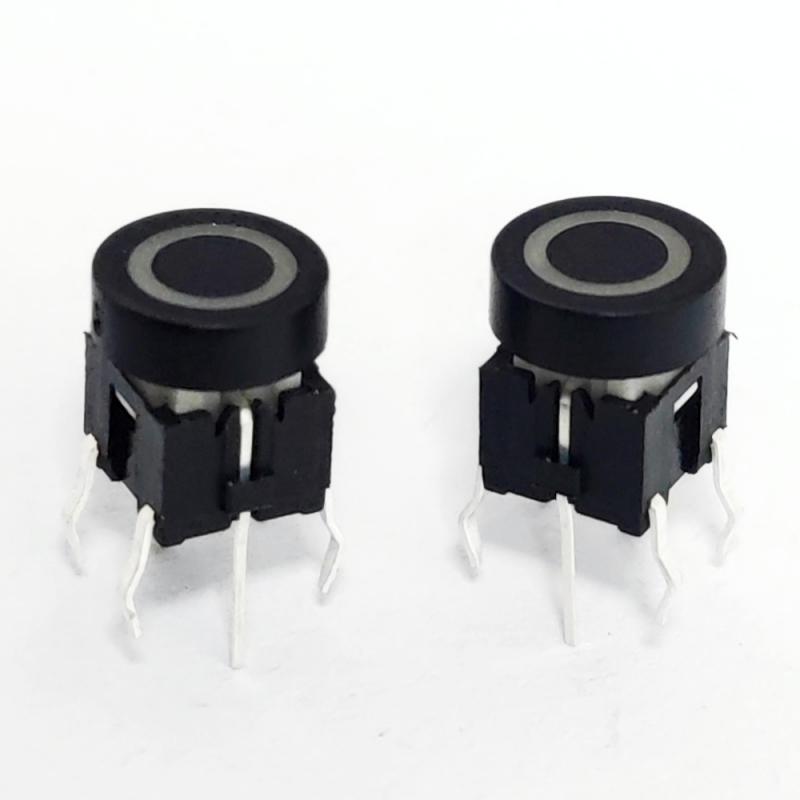

Black Cap Tact Switch With LED

Feature

The characteristics of an illuminated tactile switch can be briefly described in English as follows:

Tactile Feedback – Provides a clear "click" response when pressed.
Built-in LED – Features an integrated light for visual indication (on/off or status).
Compact Design – Small and space-saving, suitable for modern electronics.
Low Power Consumption – Energy-efficient LED illumination.
Durable – Long lifespan with high mechanical endurance (e.g., 50,000+ presses).
Variety of Colors – Available in multiple LED colors (red, green, blue, etc.).
Easy Installation – Typically designed for PCB mounting.

Commonly used in consumer electronics, automotive controls, and industrial panels.

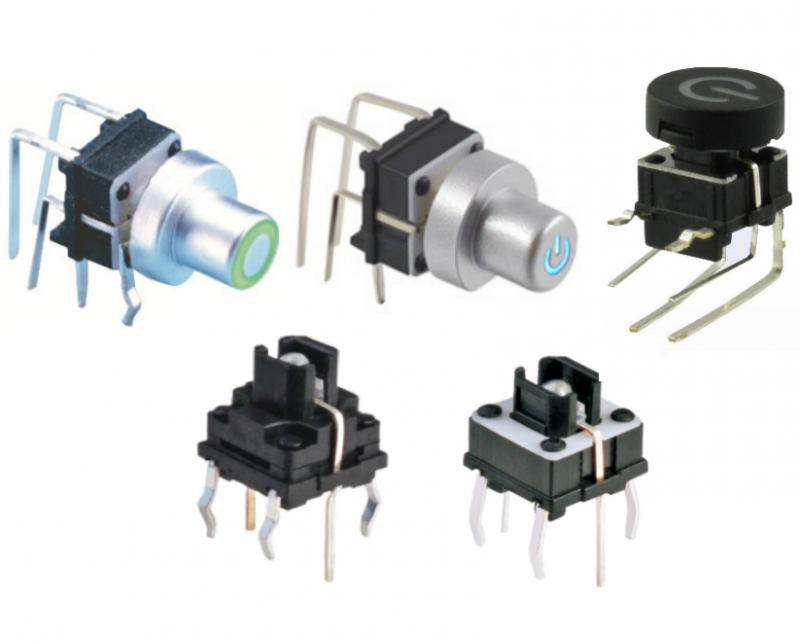

Illuminated push button switch with LED
