4 Pin THT Tact Touch Push Button Switch

The Through-Hole Tactile Switchis a common electronic component, which is fixed by soldering through the pins inserted into the holes of the PCB (Printed circuit board)

Brand:
Gangyuan
Item NO.:
KAN0648A-0311A100-B4
Order(MOQ):
500
Payment:
100% before production
Product Origin:
Wenzhou
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7-15 working days

Outline (mm)
6.00mm x 6.00mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

6x6 tact switch mini round button 50mA DC12V tactile switch for PCB board

Typical Specifications

Type: 6mm micro tact switch

Ratings: DC 12V 50mA（Max）DC 1V 10μA （Min）

Operating Force: 100±30gf

Full Travel: 0.25±0.15mm

Operation life: 1,000,000 cycles

Product height: 3.1mm

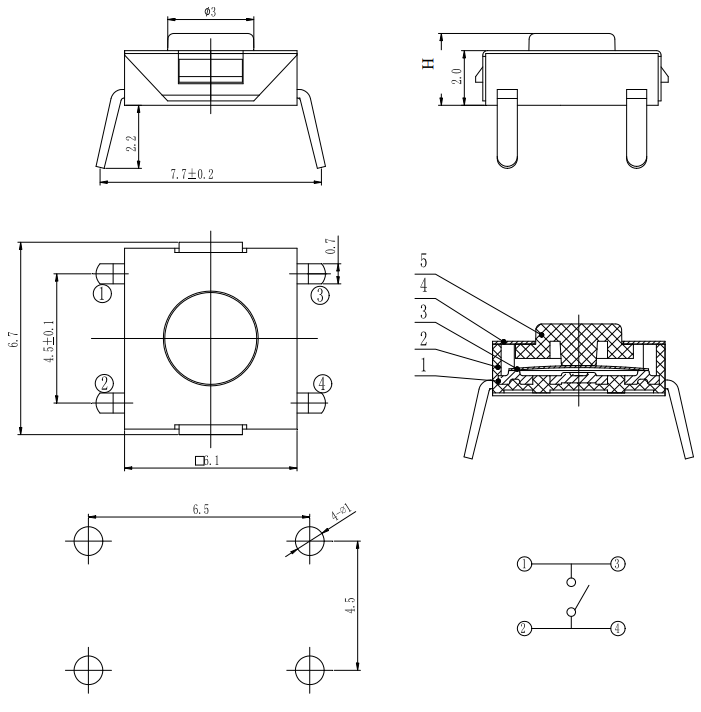

Tact switch schematic

Top Actuated Tact Switch / Microswitch Tact / Standard Tact Switch

Application

Consumer electronics: keyboards, remote controls, game controllers.
Industrial control: instrument panels, PLC equipment.
Home appliances: microwave ovens, washing machine control panels.
Automotive electronics: car audio, central control buttons

Notes：

a、The pad size of the printed substrate is shown in the product diagram.

b、In the case of using soldering iron, soldering conditions shall be 350℃ max and 3 sec.max.

c、Prevent flux penetration from the top of the switch

d、After switches were soldered,please be careful not to clean switches with solvent or other similar products.

e、Right after switches were soldered;please be careful not to load to on the knobs of switches.

f、Please be cautions not to give excessive static load or shock to switches.

g、Please be careful not to pile up P.W.B.after switches were soldered
