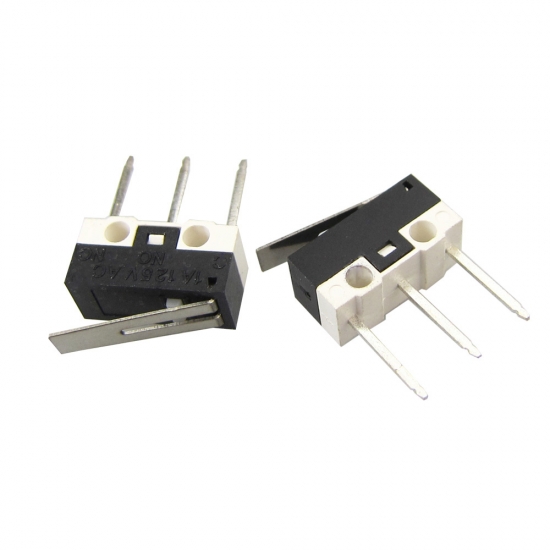

1A 125VAC Mini micro switch type ENEC micro switch

3 pin mini 1a 125vac 5e4 25t85 micro switch

Applied for rice cooker and water heater

Brand:
Gangyuan
Item NO.:
DM1-02PWL8.5-30-3
Order(MOQ):
100pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black and white
Shipping Port:
Shanghai/Shenzhen
Lead Time：
14 working days for payment

Outline (mm)
20.00mm x 10.00mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

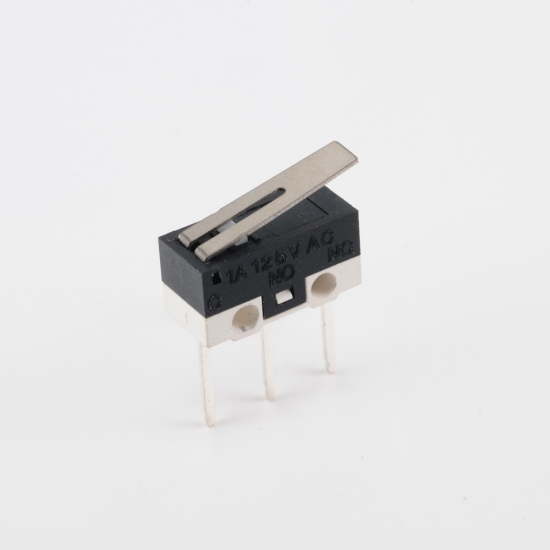

3 long pin mini micro switch

Basic Information

Product name	Mini Micro Switch
Rating	AC125V 1A
Contact resistance	≤100mΩ
Operating force	80±15gf -180±15gf
Life	500,000 Cycles
Operating temperature	-25°C+85°C
Features	long pins in Ag point

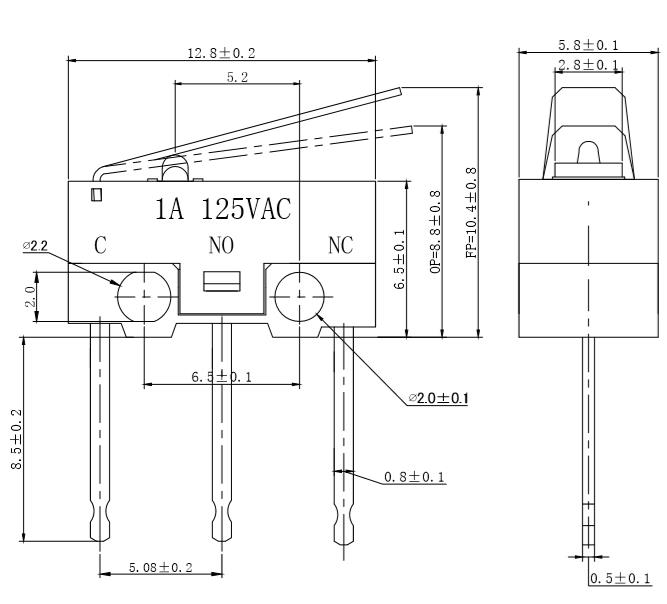

Dimension

Product features

1. Type: Min Micro switch

2. Circuit Code: SPDT

3. Lever Type: With lever

4. Electrical Rating: AC 125V 1A

Our advantage

1. The factory: more than 26 years of experience in switch manufacturing and trade.

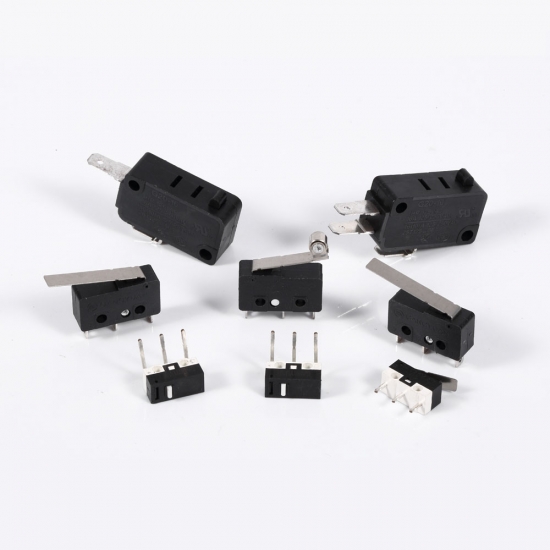

2. Variety of switch options. Above 2000 models.

3. Quality assurance. Imported raw materials from Japan and South Korea.

More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.

Application

Mini micro switch normall apply for: Mini portable equipment, Digital devices, Kitchen appliances, Communication products, Home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

FAQ

1. Q: Are you manufacture/ factory? Location?

A: Yes, three plants located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

A: Yes, free samples available within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
A: 7-15 working days after confirmation.

4. Q: What about terms of payment ?

A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.
