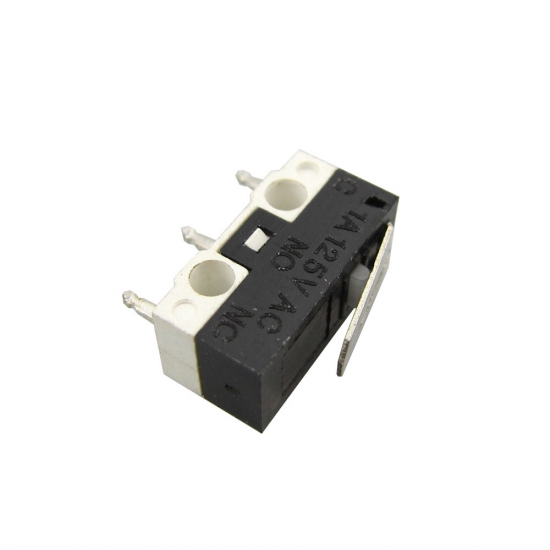

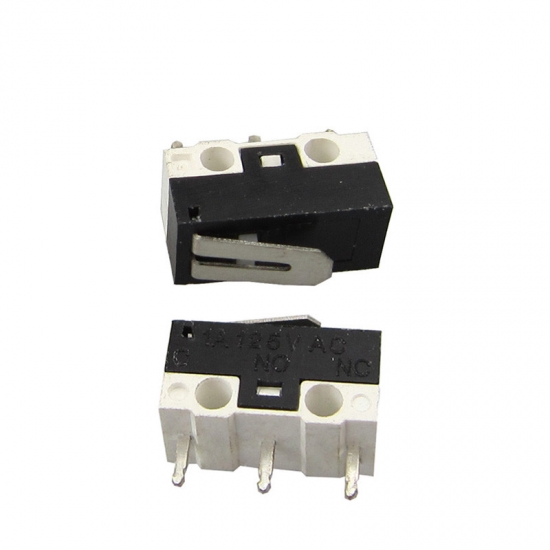

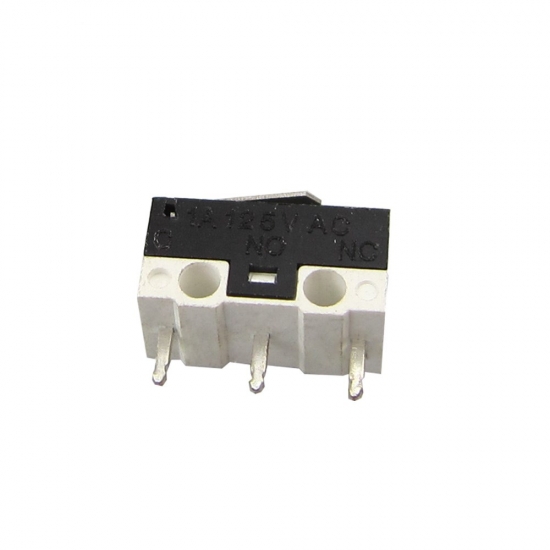

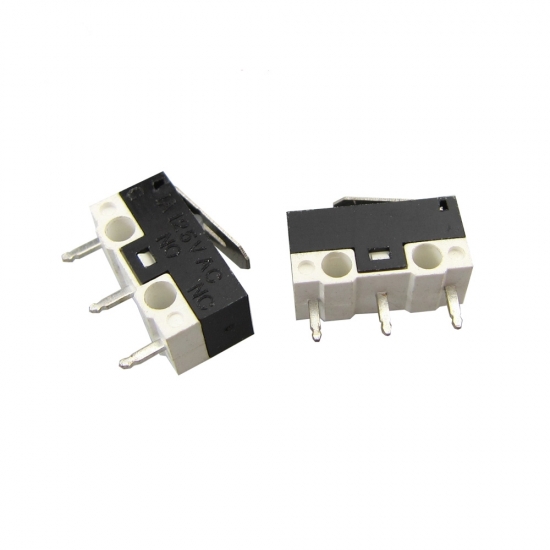

saia burgess micro switch spdt bobcat 12v
Brand:
GangyuanItem NO.:
DMI-07PW-30-3Order(MOQ):
100pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4Xsaia burgess micro switch spdt bobcat 12v
Basic Information
Product name
Micro Switch
Rating
AC125V 1A
Contact resistance
≤100mΩ
Operating force
80±15gf -180±15gf
Life
500,000 Cycles
Operating temperature
-25°C+85°C
Withstand voltage
250V AC / 1 min

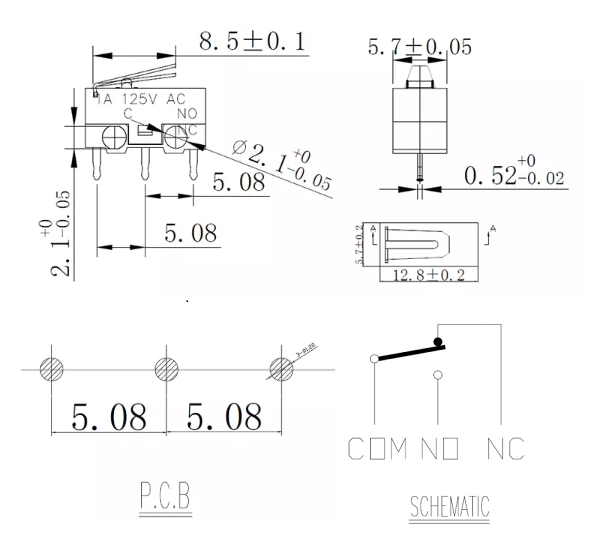

Dimension
Product features
1. Type: Micro switch （Small fretting）
2. Circuit Code: SPDT
3. Lever Type: With lever
4. Electrical Rating: AC 125V 1A
5.Customized selection: AC 125V 3A
Our advantage
1. The factory has more than 20 years of experience in the field of switch manufacturing.
2. Variety of categories. More than 2000 models.
3. Good quality. Using raw materials imported from Japan and South Korea.
More than 85% of product automated manufacturing coverage.
4. Excellent R&D team, clients design requests are welcome.
5. Two thousands invention patents and 47 utility model patents.
6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
8. After-sales service team. Global radiation multiple service outlets.
Application
Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
It is widely used in electronic products,instrument measuring appliance and domestic electric appliances and so on.
12.8mm*5.8mm left and right terminal connect Micro switch.
12.8mm*5.8mm long terminal connect Micro switch micro switch.
Product model: DMI-02CWL-30-3 Specification: 12.8mm*5.8mm Operating force: 80±15gf -180±15gf Features: left and right feet MOQ: 1000
DMI-02PWL8.5--3: 1A 125VAC, 80±150gf, 5e4 mini micro switch.
G10-3-01S: 125/250V AC 4A, 200±15gf, 50,000cycles mini micro switch.
DM1-02CWL-30-3: 3 Pin Long Roller Action Micro Switch.
12.8mm*5.8mm Long Terminal Connect 3 pin Micro Switch
