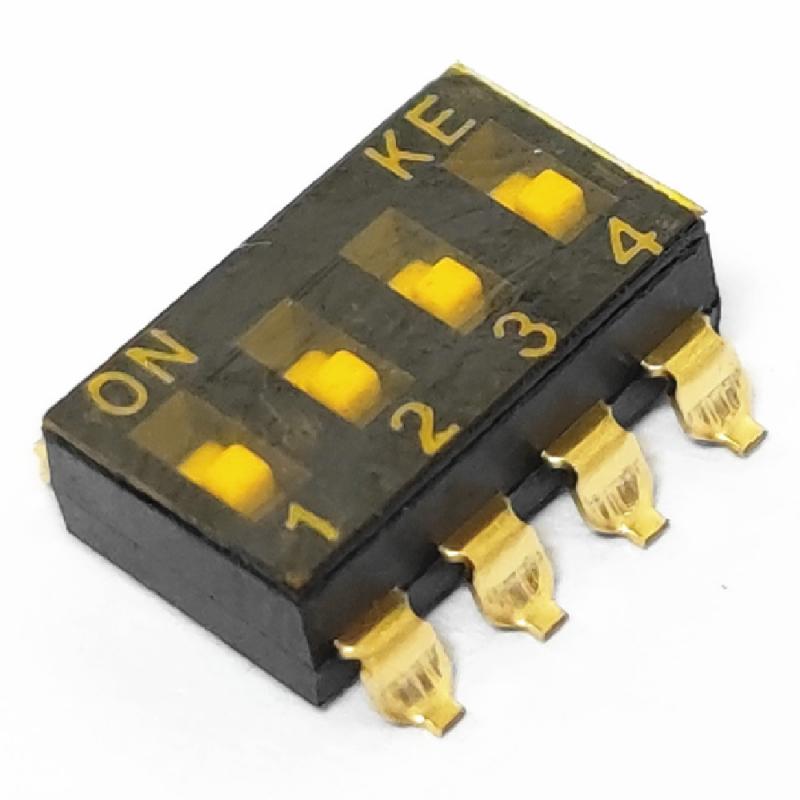

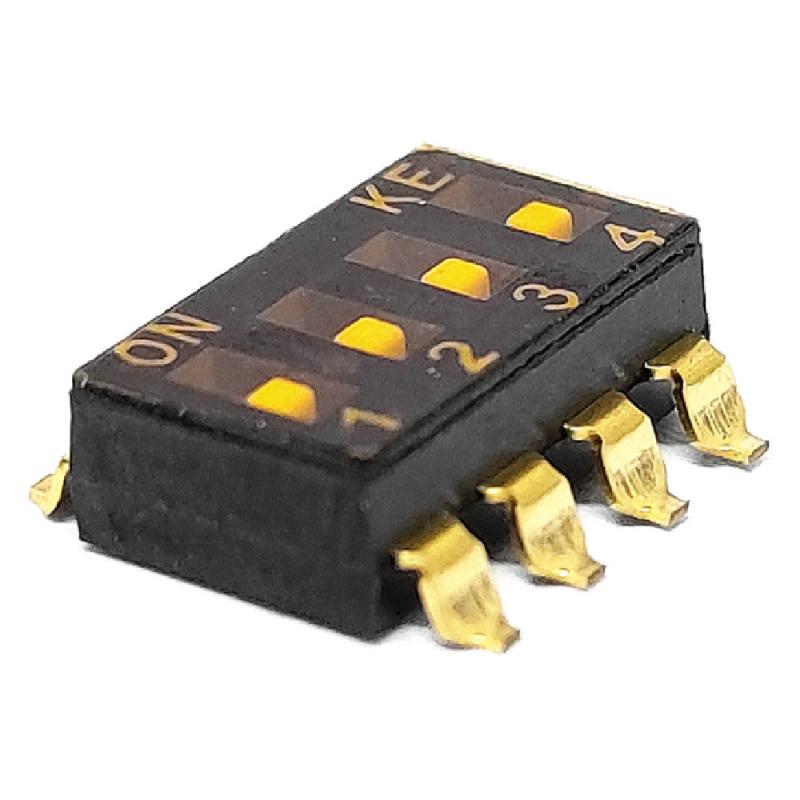

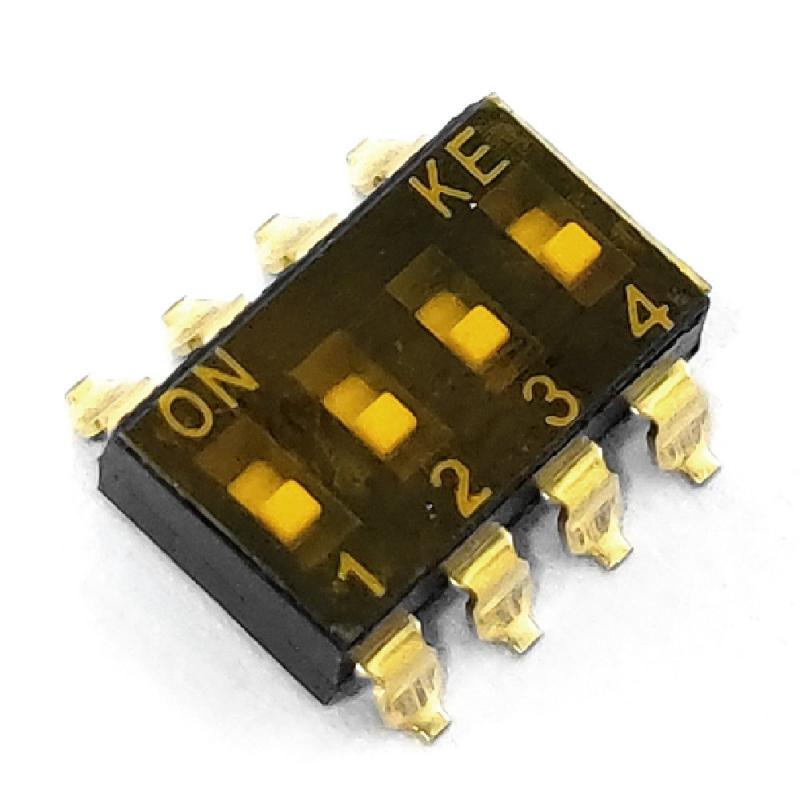

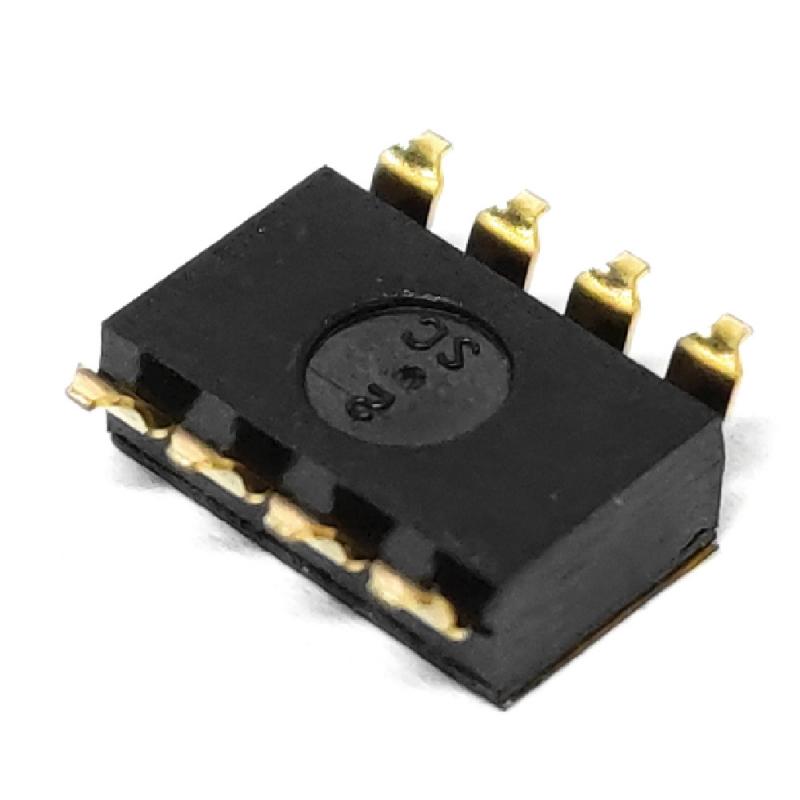

With top tape sealed SPST dip switch

Customers can choose the number of positions on the DIP switch according to the configuration options of their application.

Brand:
Gangyuan
Item NO.:
BMIC04S-CG-4F-M
Order(MOQ):
1000
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black and yellow
Shipping Port:
WenZhou/Shenzhen
Lead Time：
14 Working Days For Payment

Outline (mm)
10.16mm x 6.00mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
No IP Rating

Product Detail

With membrane 25mA 24VDC micro dip switch

SMT dip switch manufacturer

Parameter

Contact rating: switching-25mA, 24VDC; non-switching-100mA
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Switch Capacitance: Max 5PF
Operating Force: Max 500gf
Operation life: 1,000 cycles
Operating Temperature Range: -30℃～80℃
Storage Temperature Range: -40℃～90℃

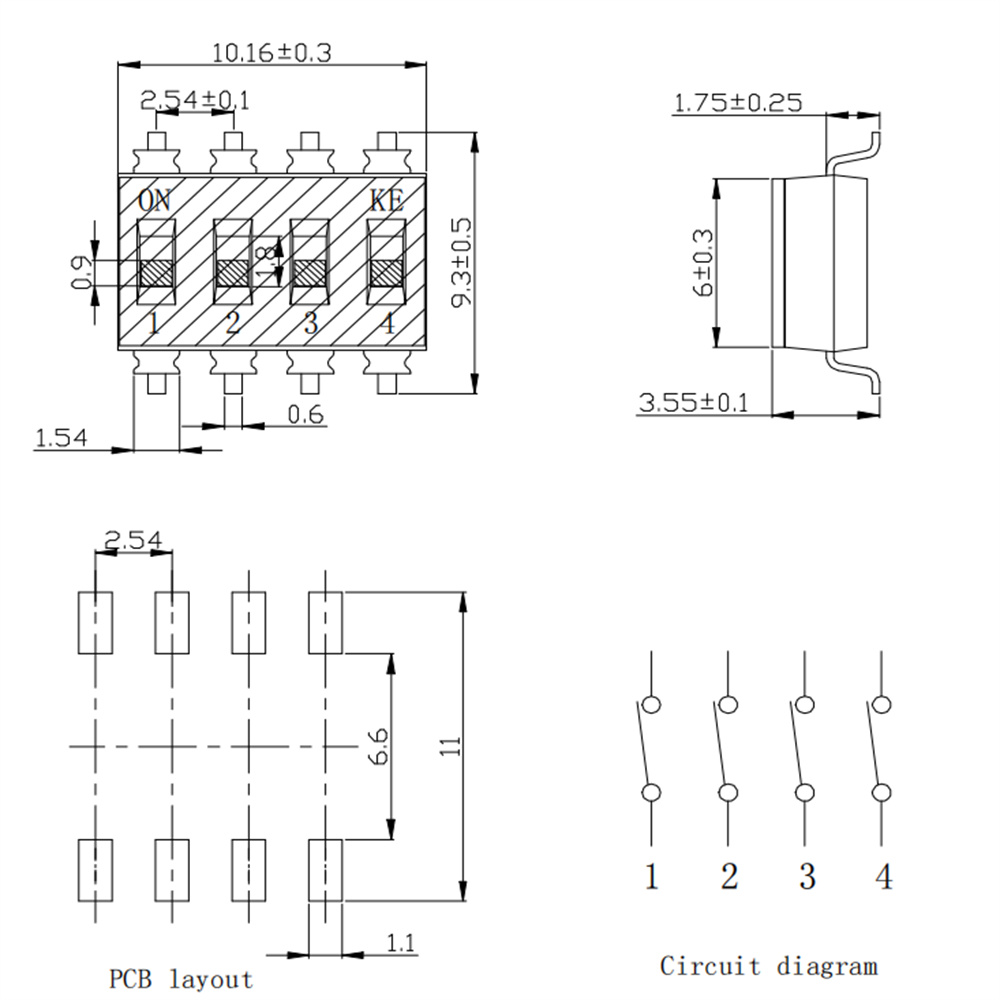

Drawing

What is a dip switch?

DIP switches have appeared as electromechanical devices since the 1970s, allowing users to make manual changes to electronic circuits. The simplicity, flexibility and low cost of DIP switches ensure their long-term use in a variety of electronic applications. They come in a variety of sizes, configurations, switching mechanisms, and power ratings.

Applications

Numerical setting of computer terminal equipment
Price setting of vending machine
Game console programming
Programming of industrial equipment and measuring instruments

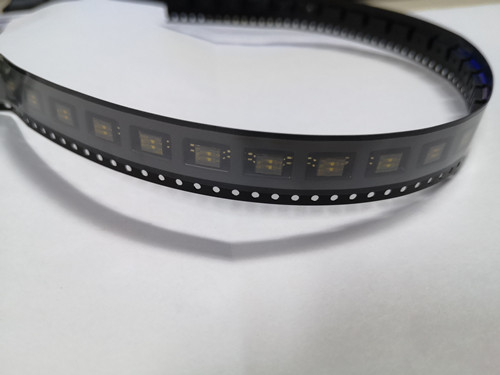

Packaging type

Reel packing: 1000pcs/reel
