The slide, rocker, and piano types, which are very common, are arrays of simple single pole, single throw (SPST) contacts, each of which can be either on or off.
Brand:
GangyuanItem NO.:
BMIC01A-RG-5N(GY)Order(MOQ):
500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
2.54mm x 6.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

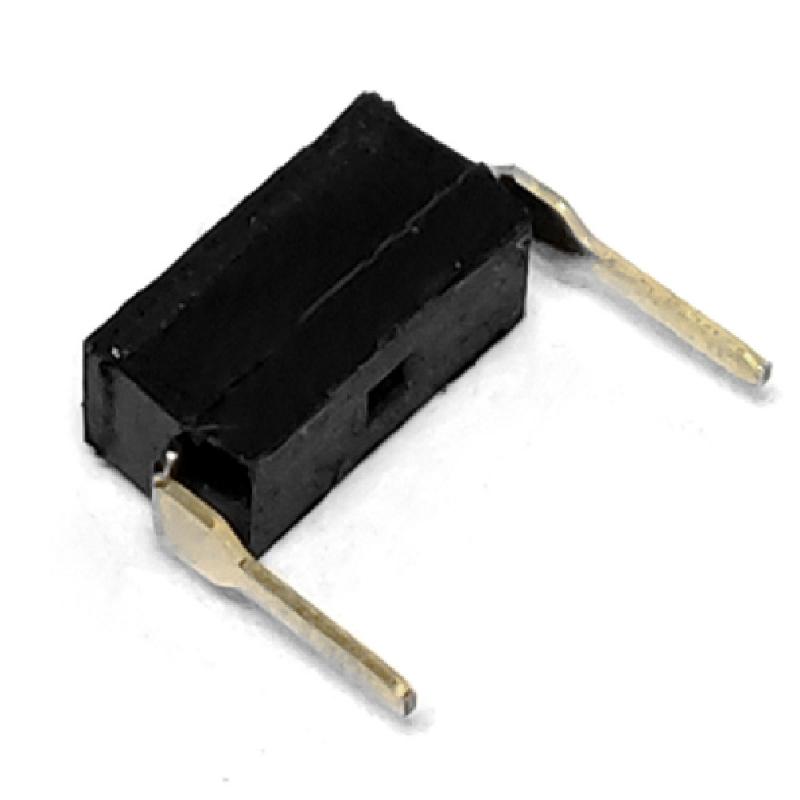

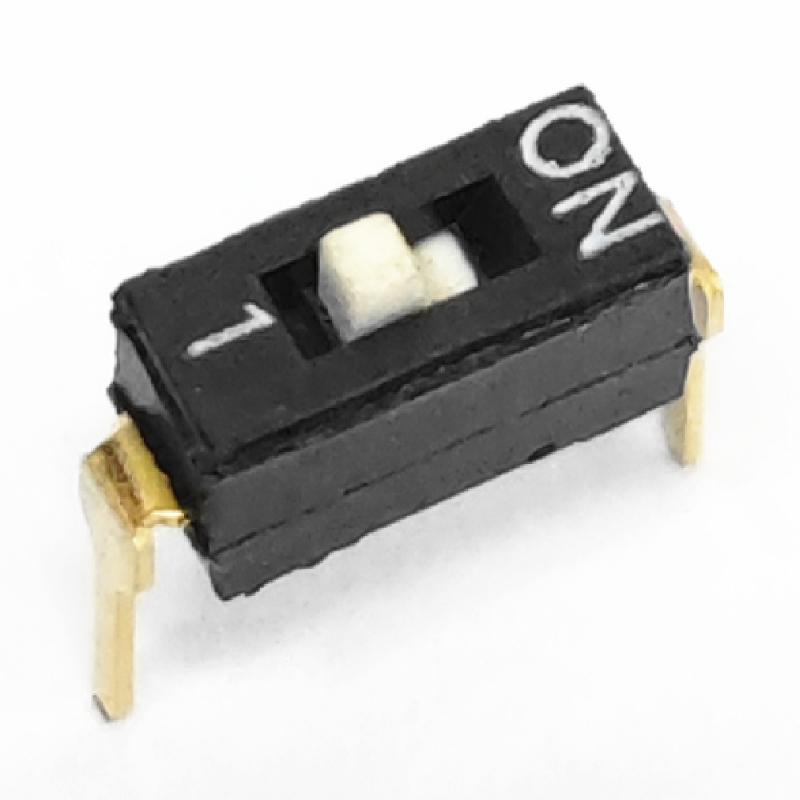

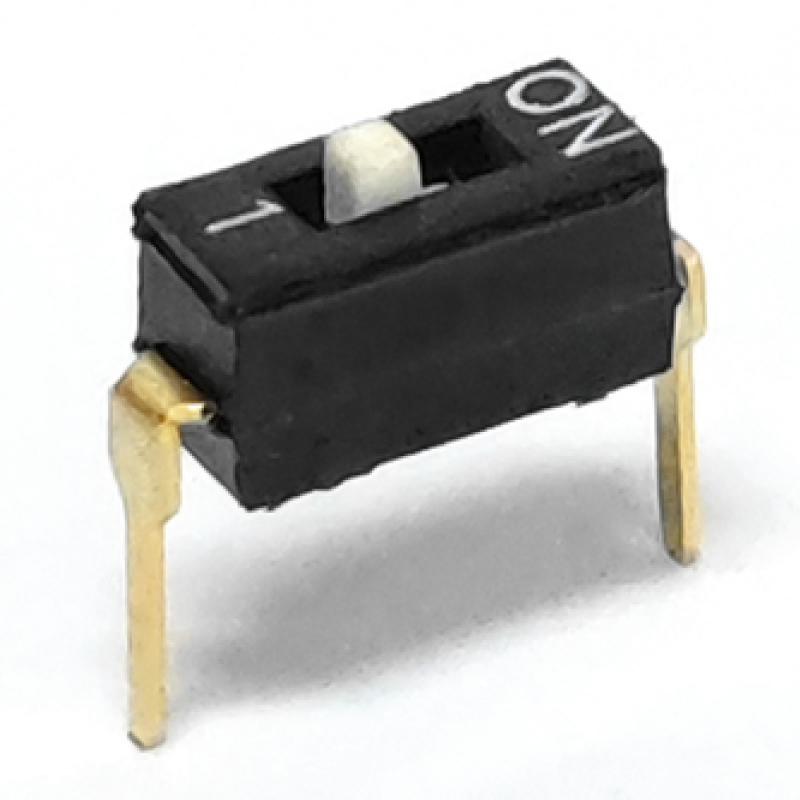

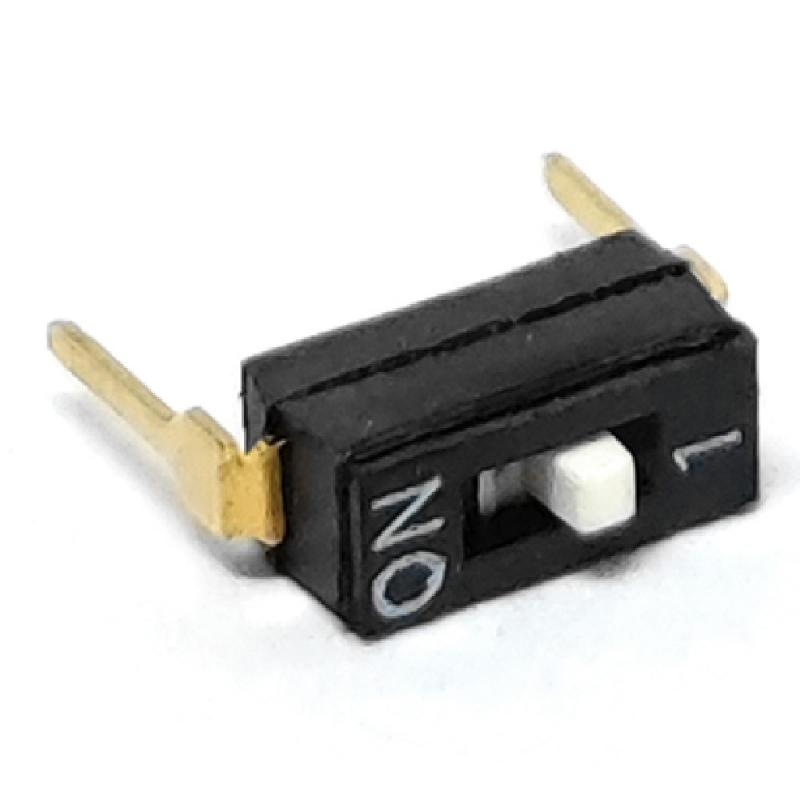

No IP Rating2.54mm pitch 1 position side dial dip switches
Extended actuator type dip switch
Dip switch description
Circuit: SPST
Number of Positions: 1
Contact Resistance: 50mΩ Max. (initial)
Insulation Resistance: 100MΩ Min
Operation Force: 1000gf Max

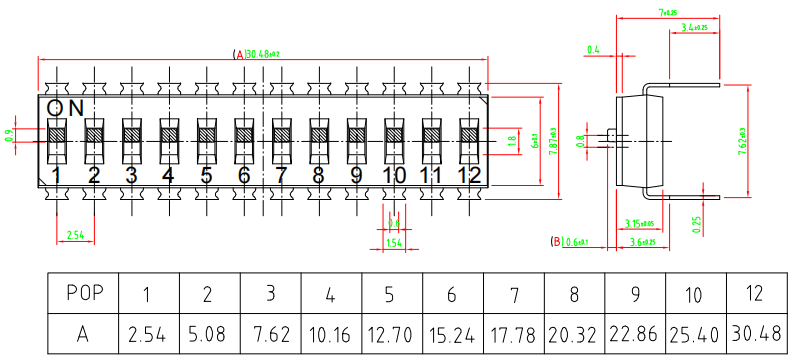

Datasheet
What is the function of Digital DIP switch ?
It is an electromechanical device that requires the user to manually move an actuator in order to activate or deactivate different electronic circuits.
DIP switches are typically mounted on a PCB or breadboard and allow users to quickly preconfigure or switch electronics between various settings or modes of operation.

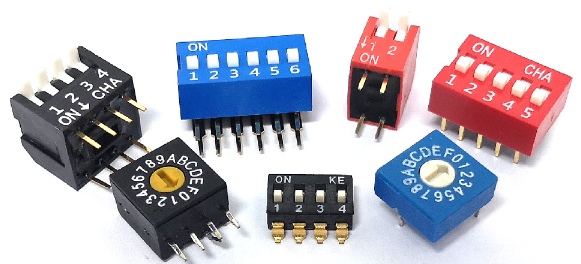

Dip switch type
The DIP switches set a different radio frequency or address for each transmitter/receiver pair,
so that multiple units can be installed without unintentionally controlling each other.
A slide style Dip switch
A rocker style Dip switch
A piano stylee dip switch
A 2PST style dip switch
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
CDM series DIP switch, low profile for space saving, gold contact provides high reliability, top tape type for washing process.
Excellent performance and reasonal price DS Series all choice Pos Slide DIP Switch with 2.54mm Pitch.
PC Pin terminal opstions is available with the extended actuator from 2 to 12 positions.
Side Push Dip Switch SPST from 1 to 12 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC.
CDH Series dip switch from 1 to 12 position options, 2.54mm pitch, terminal copper alloy, golden plated.
Rotary dip switch has 15 positions with nice quality.
Through hole mount DIP Switch Through hole mount DIP Switch
DA-03 3 Pin SPST Electronic red DIP Switch
