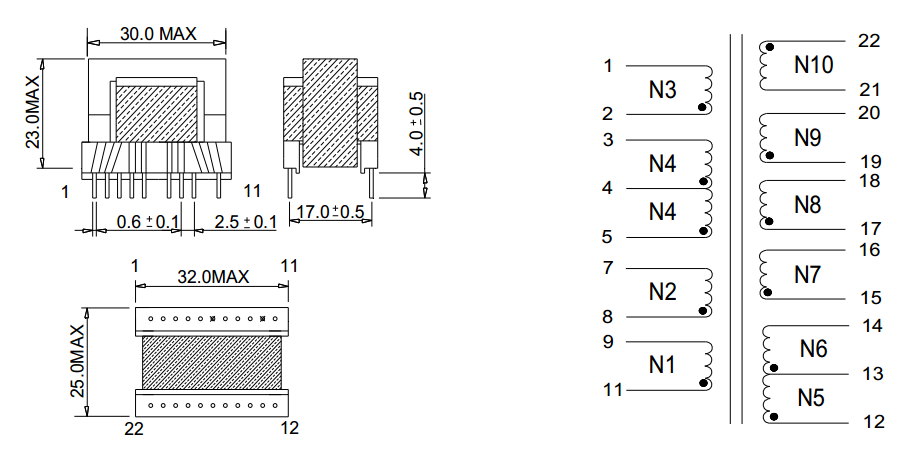

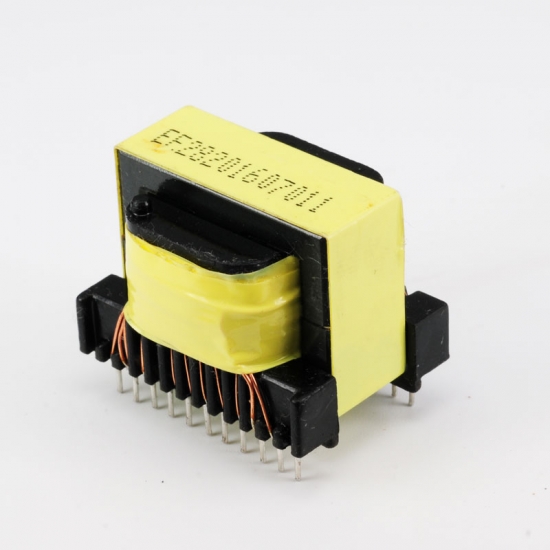

Vertical Plug-in high frequency transformer

Two or more wire windings placed around a common magetic core is the physical structure of a transformer. It’s electrical purpose is to transfer power from the primary winding to the other windings with no energy storage or loss

Two or more wire windings placed around a common magetic core is the physical structure of a transformer. It’s electrical purpose is to transfer power from the primary winding to the other windings with no energy storage or loss

The extensive function of the connector is to rely on the connection of the cable (FPC or FFC) to conduct the signal between the two lines on the PCB.

FPC: Flexible Printed Circuit board, It uses soft materials and has good bending, folding and stretching properties.

The connector with double contact points can improve the directionality of the contact points of the cable assembly when the customer is in the research and development stage.

Flat Flexible Cable Connector with 0.5mm pitch. Orientation is side entry and surface mount, with a back flip lock actuator.

A type of connector intended to connect FPCs (Flexible Printed Circuits) and PCBs (Printed Circuit Boards). A method of connecting FPCs is directly inserting them into the connector. Connection with FFCs (Flexible Flat Cable) is also possible.

There are another type that plating with mylar membrane.
