The extensive function of the connector is to rely on the connection of the cable (FPC or FFC) to conduct the signal between the two lines on the PCB.
Brand:
GangyuanItem NO.:
GYFD0540-XX0-2201Order(MOQ):
1500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
WhiteShipping Port:
Ningbo/ShenzhenLead Time：

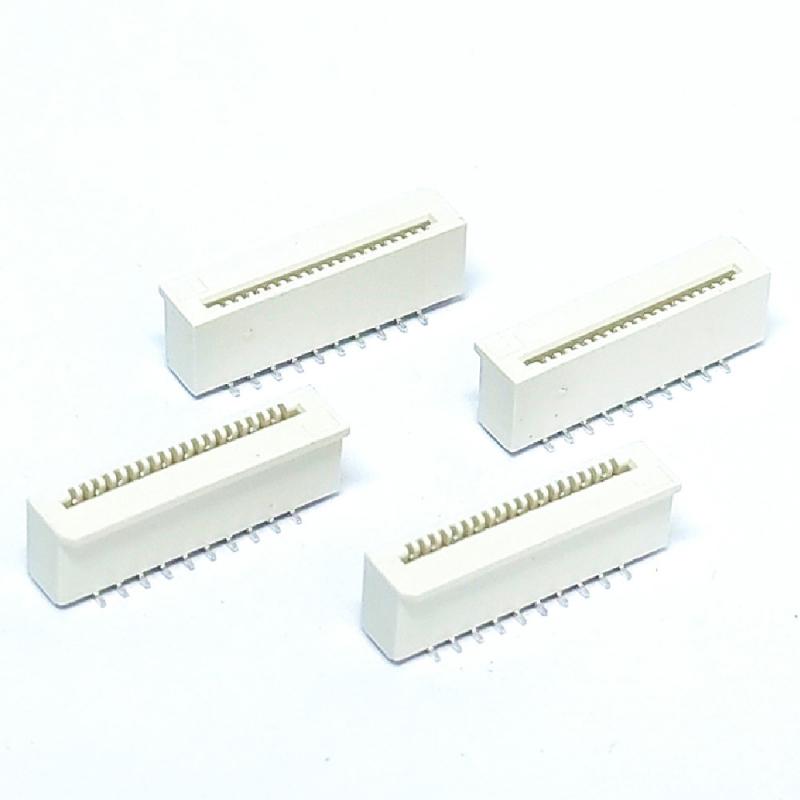

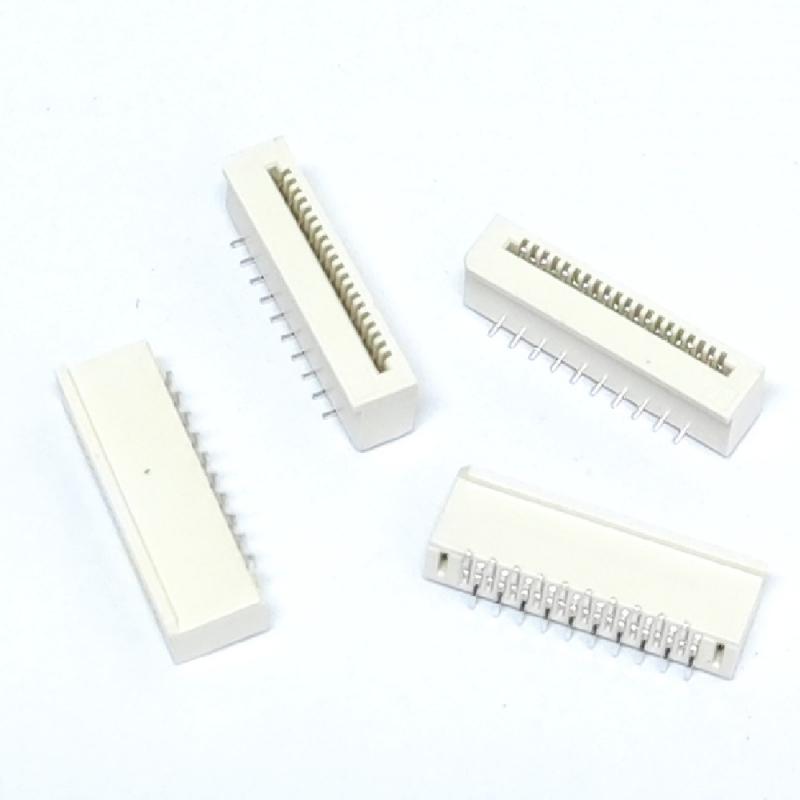

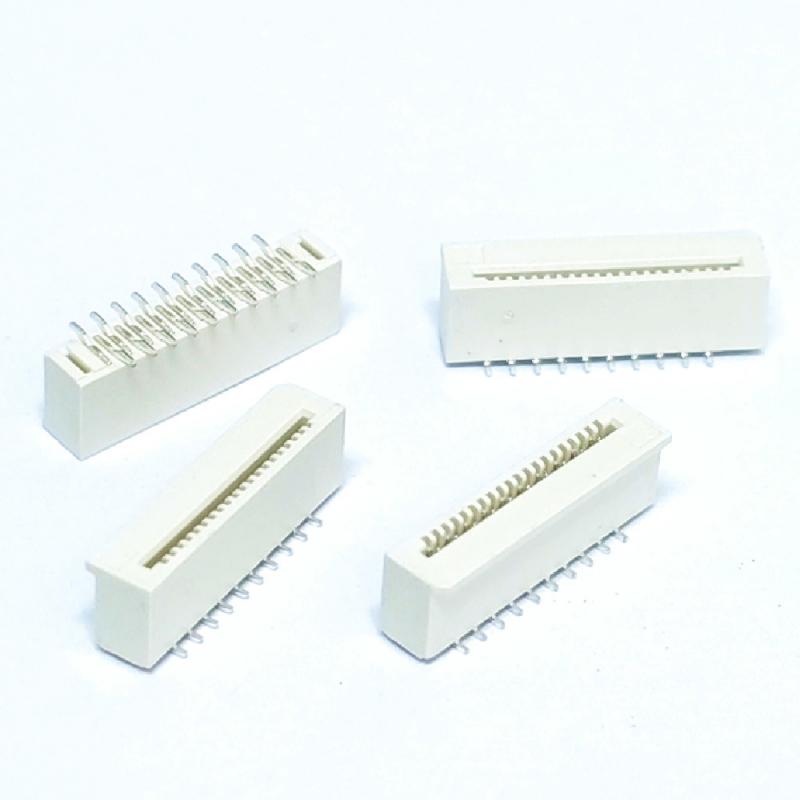

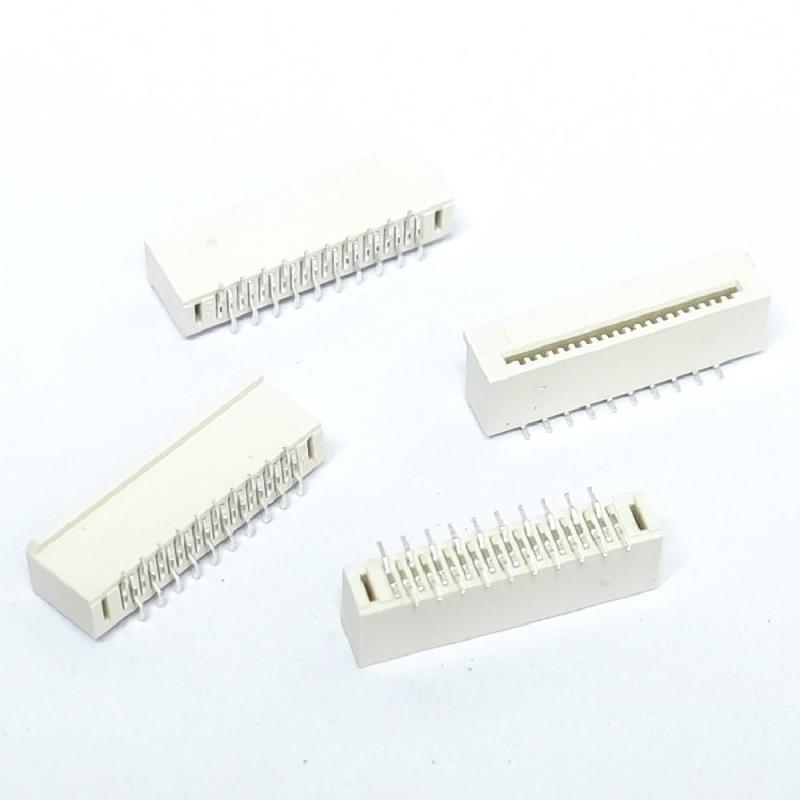

7-14 working days for payment0.5 pitch ZIF straight connector vertical smt fpc connector
Electrical performance
Type: FFC & FPC Connectors
Pin number: 10
Height: 4.0mm
Housing material: LCP
Rating: 0.5A 50v
Withstand voltage: 200V
Contact resistance: 100mΩ
Insulation resistance: 500MΩ
Operating temperature: -25℃~+85℃

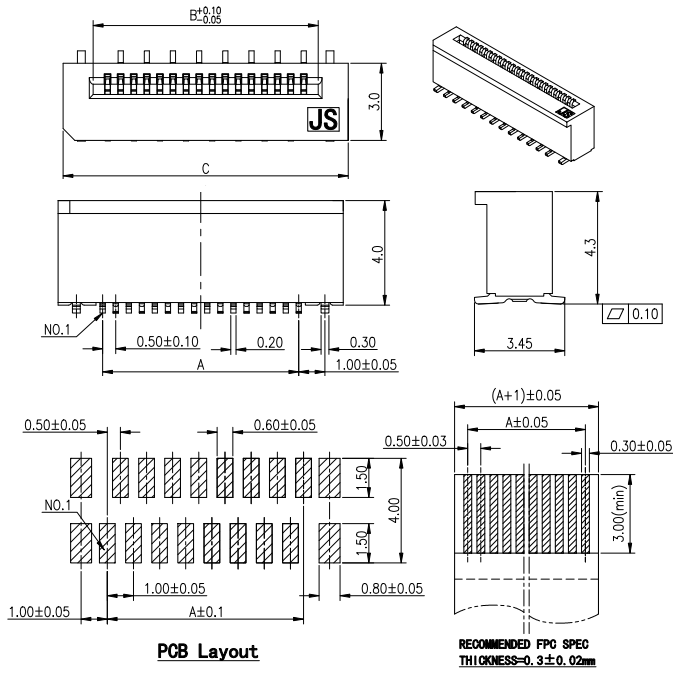

Circuit
What is the difference between FPC and FPC ?
The main difference between FPC and FFC is that a flexible flat cable refers to any type of electrical cable that is flexible and flat,
while an FPC is a flexible printed circuit. The construction of FFC cables means that they take up much less space, and can offer
greater flexibility than round cables.
Application
SMT ZIF Horizontal Low Profile
1. Electronics
2. Communication
3. Printer
4. Copier
5. TV
6. Tablet PC
7. Educational electronic car
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
