FPC 0.5 Pitch 1.5H Connector

FPC: Flexible Printed Circuit board, It uses soft materials and has good bending, folding and stretching properties.

Brand:
Gangyuan
Item NO.:
GYFA0515
Order(MOQ):
4000
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black and White
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 Working Days For Payment

Product Detail

Front flap gold flash over Nickel tactile contact connector

FPC Connector 20 Pin

Parameter

FPC ZIF Connector

Ratings: 50VAC/DC 0.5A

Contact Resistance: ≤40mΩ

Insulation Resistance: ≥50MΩ

FPC Retention Force: Pos. x 0.15N Min.

Terminal Retention Force: Pos. x 0.8N Min

Number of contacts: 04~60

Operating Temperature Range: -25℃～85℃

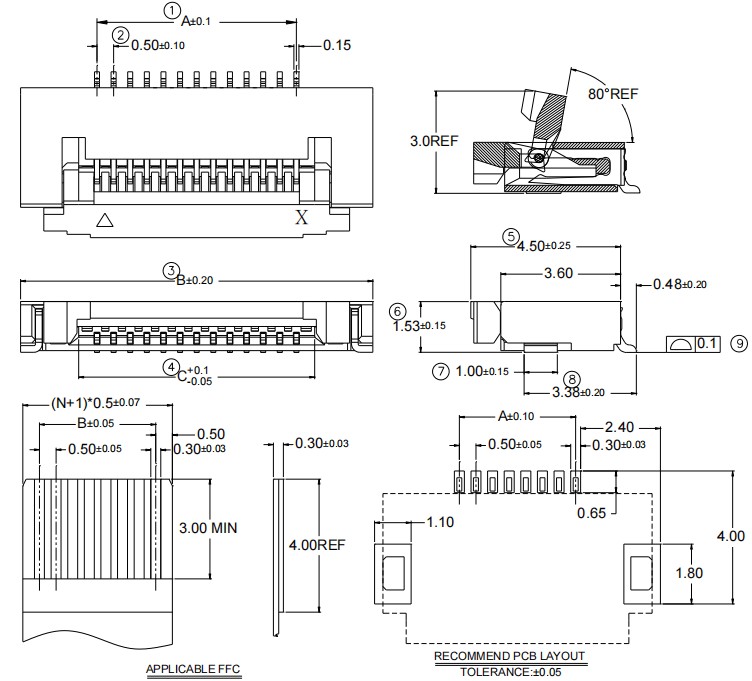

Drawing

Instruction upon usage

1. Use the thumb or the forefinger, raise the top cover up.

2. FPC gets along with conductivly down. The parallel one inserts it in the connector.

3. Press the top cover lightly and rotate down to make a reservation, until FPC is totally inserted and not moved.

4. Lift the top cover carefully, withdraw FPC from. (The whirling angle can't be greater than 135 degrees.)

Main features

Manufacturing miniaturization, compactness, and high-density integration;
Save space;
Simplify the wiring procedure and make the connection simple;
Save labor costs;
Excellent flexibility, flexible application and foldable.
