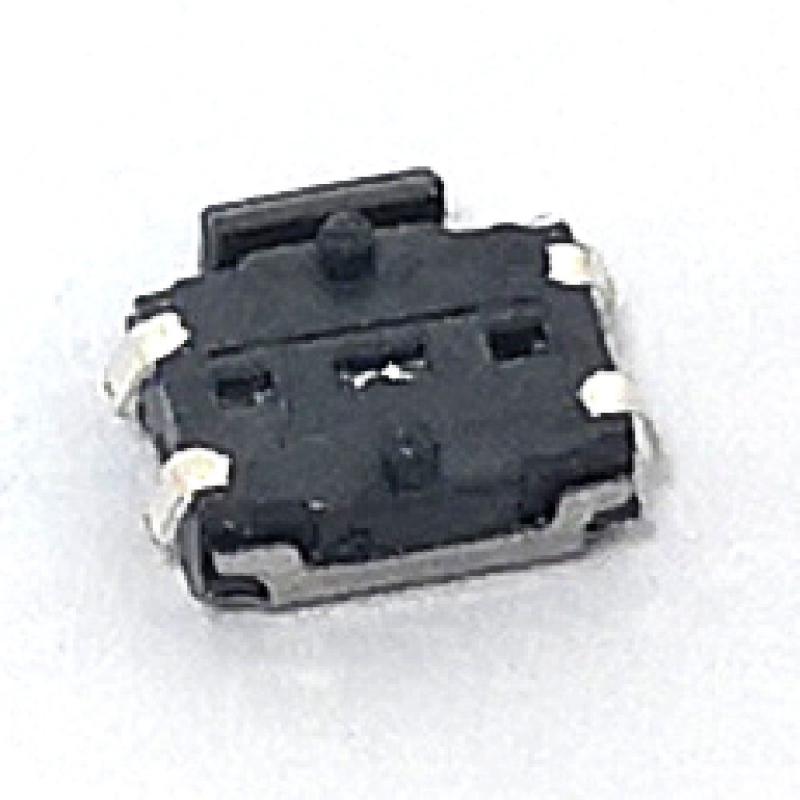

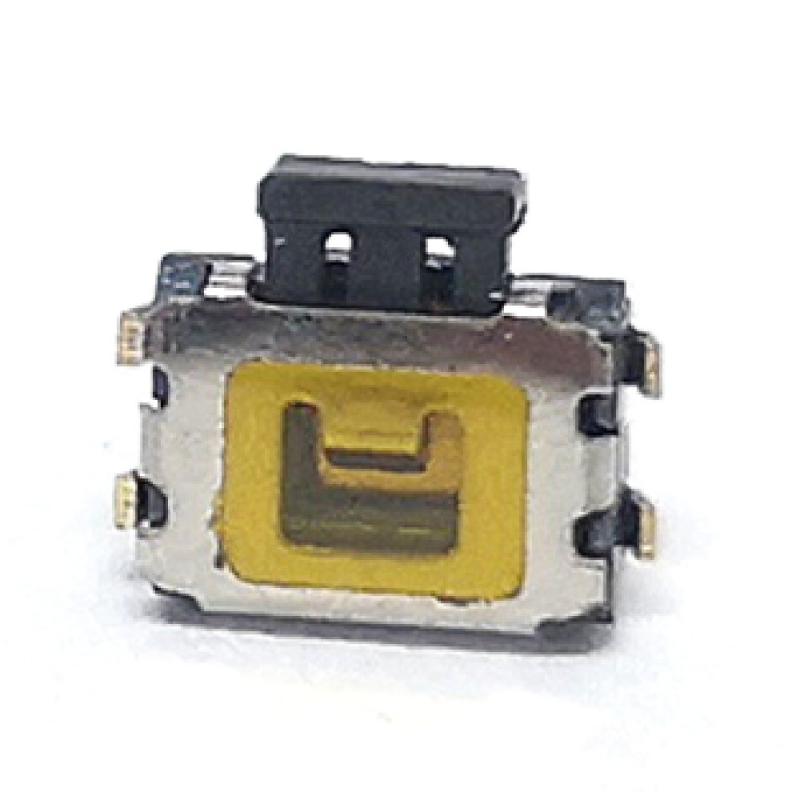

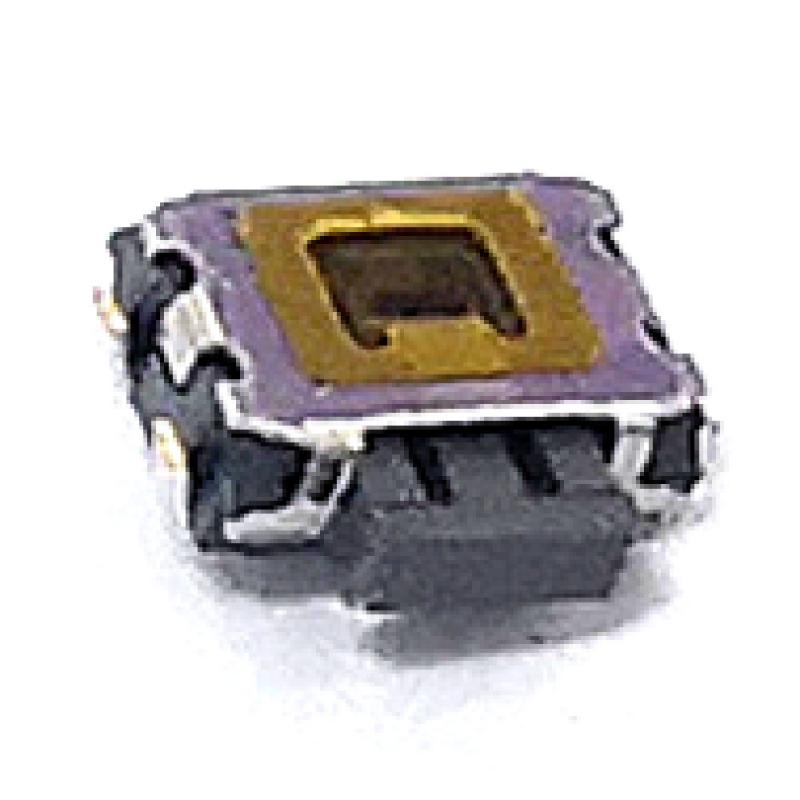

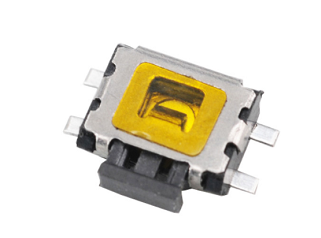

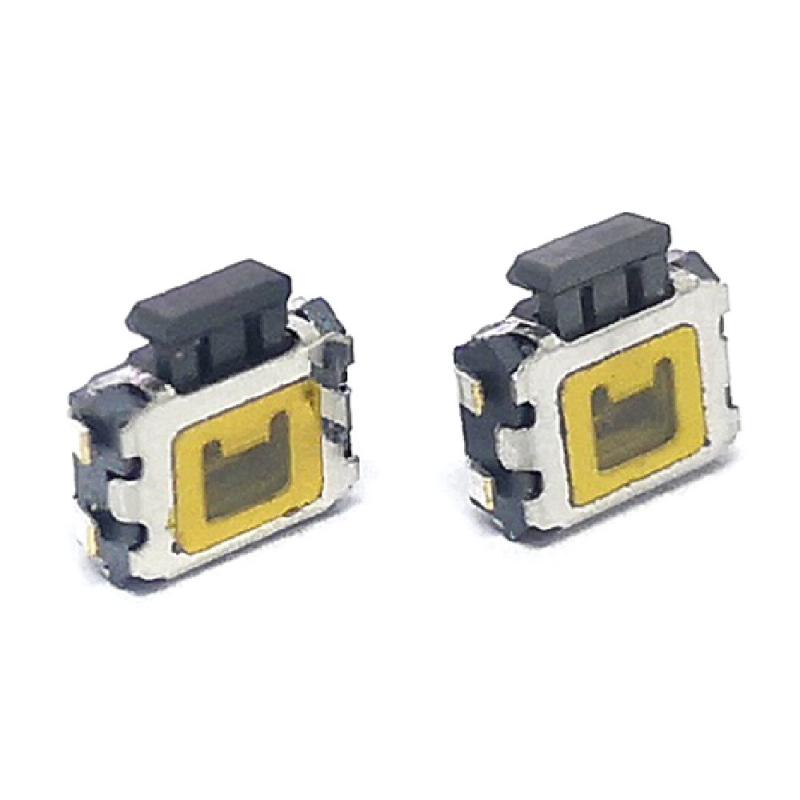

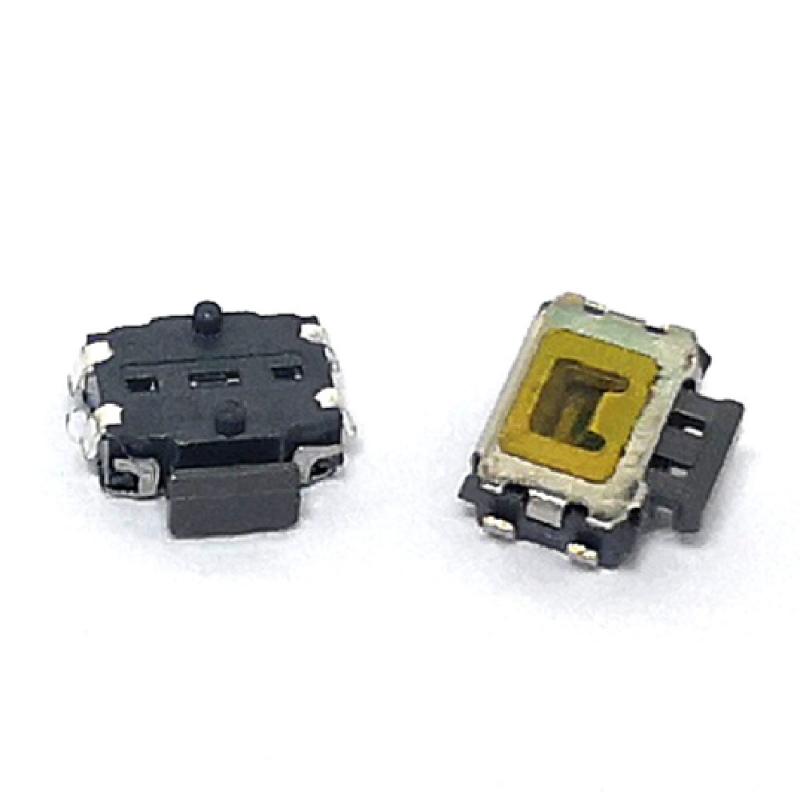

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Brand:
GangyuanItem NO.:
KAN0445G-C1-29 ( GYOrder(MOQ):
3000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
YellowShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
4.80mm x 3.50mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4X50mA DC12V 5.5*3.6mm Side actuated turtle tact switch
Positioning column：Yes
Parameter
Max. Current: 50mA
Max. Voltage: DC12V
Contact Resistance: ≤50mΩ
Insulation Resistance: ≥100MΩ
Life: 50,000 cycles Min
Height: 1.6+0.1mm
Temperature Range:-30°C ~ +85°C

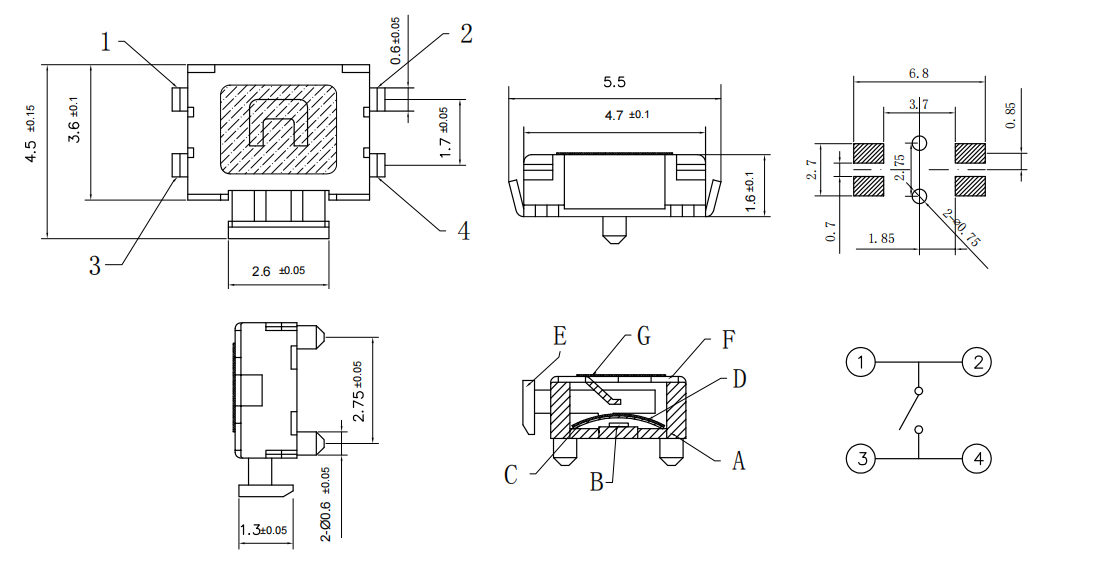

Tact switch datasheet
Is a tactile switch momentary ?
Tactile switches (a specific type of momentary switch) are everywhere and they are especially popular on DIY electronics and microcontroller boards
because they are well suited to act as a boot option or reset switch. Particularly, momentary switches are switches that don't save their state when you depress the switch.
Related Products
The following are similar models, which are different from the feet.
small switch 3x6 4 pin touch sensitive smd tact switch
Link: https://www.gangyuantech.com/3x6-tact-switch_p1108.html
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
