Metal bracket tact switch design provides stronger fixed support, suitable for SMT welding, and can withstand higher mechanical stress
Brand:
GangyuanItem NO.:
KAN0631T-0701C-42Order(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating

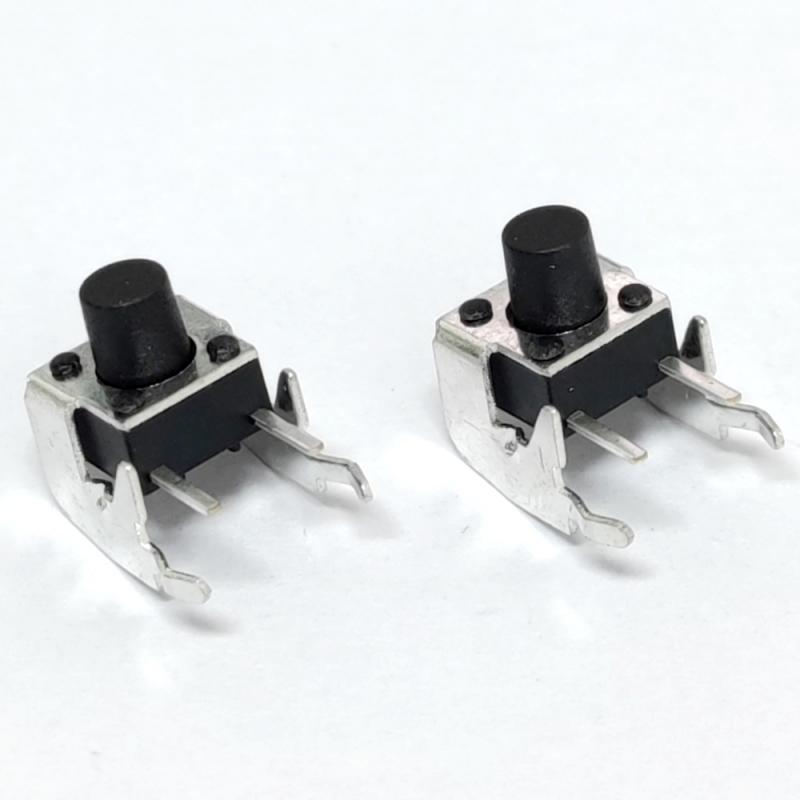

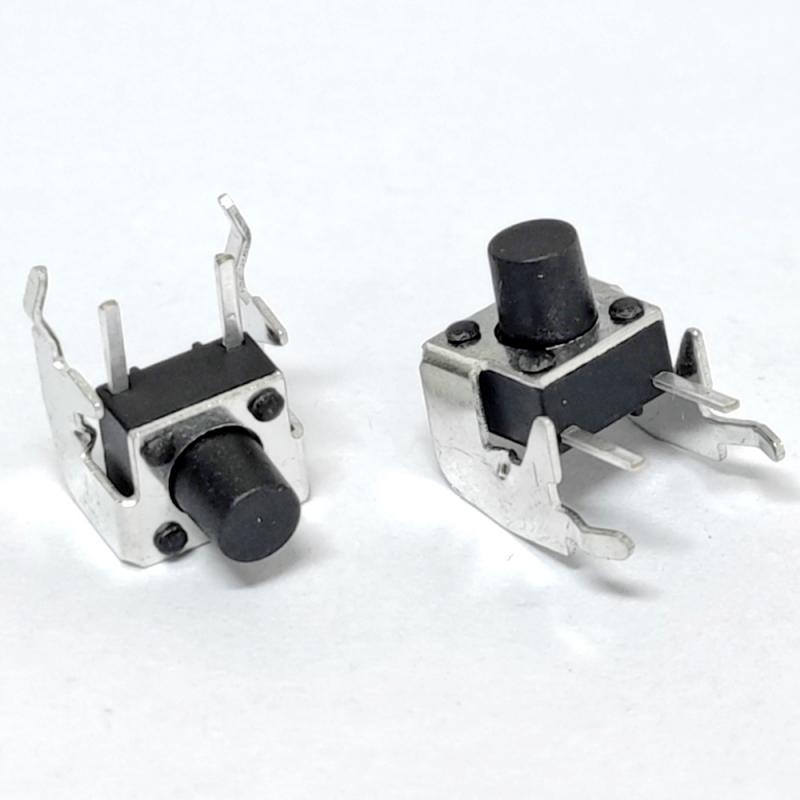

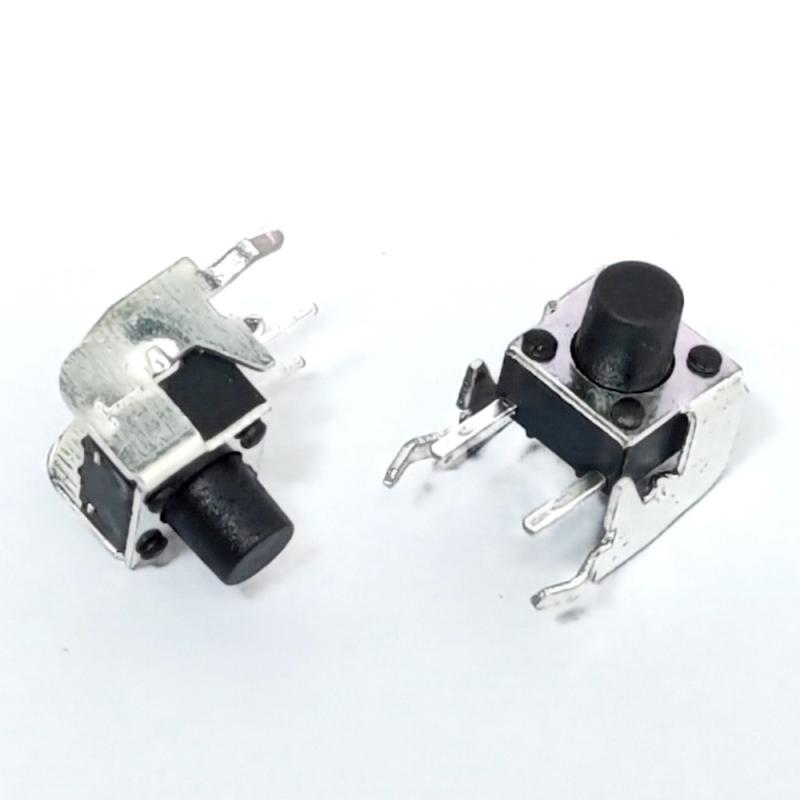

IP4X6mm 4 Pin Metal Momentary Tact Switch With Bracket
Tact switch datasheet
Type:Side push button tactile switch / Tact Switch 6x6mm / Tact Swicth 90

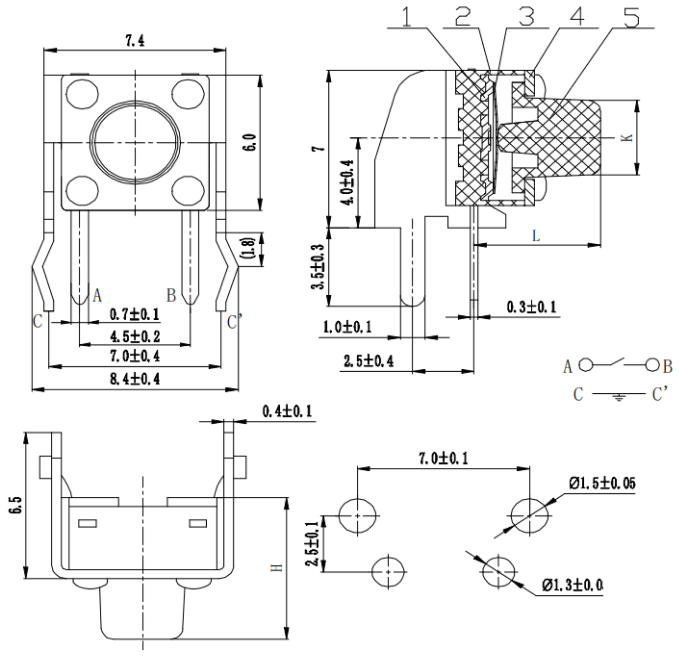

Tact switch dimention
Feature
Sturdy Metal Bracket – Reinforced SMT mounting for PCB stability.
Light Touch Operation – Low actuation force (100–260gf), tactile/audible feedback.
SMT-Compatible – Suitable for automated reflow soldering
Compact & Low Profile – Common sizes: 6×6mm.
High Durability – 10K+ cycles lifespan.

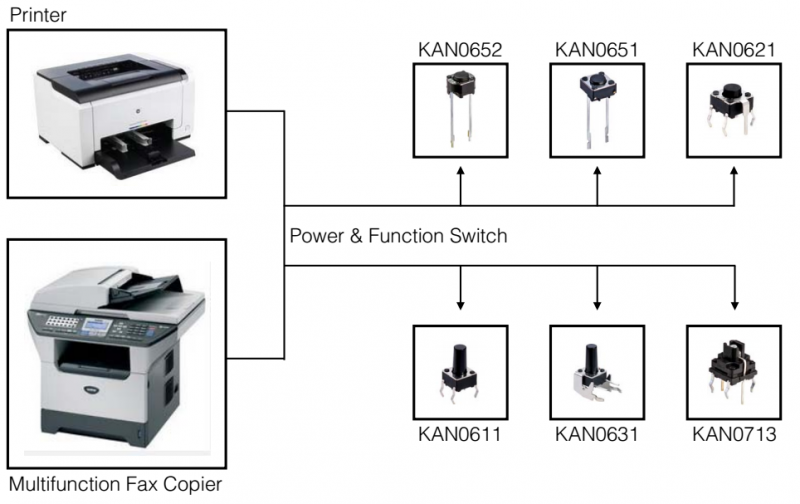

Wide Applications – Used in PCBs for consumer electronics, automotive, IoT
Why do tactile switches have 4 pins ?
Tactile switches commonly consist of 4 pins, which are internally connected in 2 sets.
The inclusion of 4 pins serves to enhance the stability of the device when mounted on a circuit board
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.

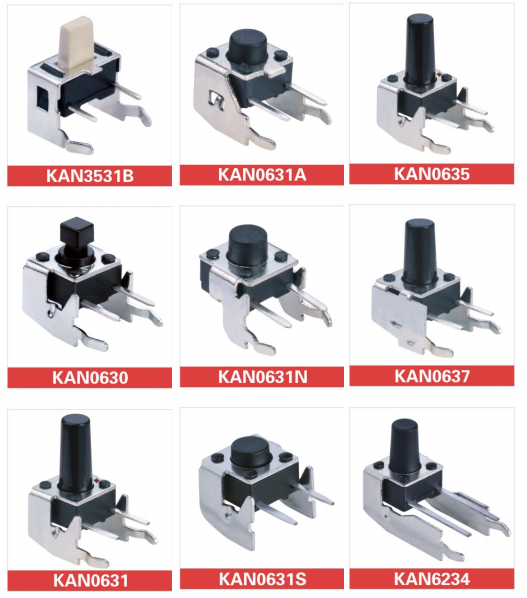

Categories
KAN0656: DC 12v 50mA, smd, water resistance type tact switch.
KAN0616: Dip switch, water resistance IP67, 6*6mm mini tact switch.
KAN0611: DC 12v 50mA, 6*6mm, 4 pins tact switch.
6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch.
12V IP67 waterproof switch push button tact switch china, 4pin dip tact switch, 100,000/200,000 cycles for optional,use for Kitchen appliances, smart toilet covers. Small appliances, white electricity, black electricity require a variety of operational switches for waterproof construction.
This kind of switch is silent, often used in car industry.
Item: KAN0641 Size: 6*6*H (4.3-18mm) Rating: 12VDC 50mA Operating life: 60,000/ 80,000/ 100,000 cycles Operating force: 100gf, 160gf, 260gf MOQ: 1000
KAN0673: 6×6mm, side horizontal type tact switch.
