Wenzhou Gangyuan Electronics Co.,Ltd.

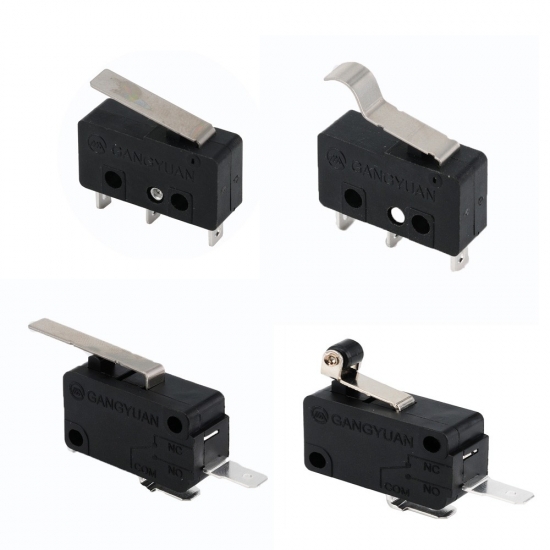

omron 3 pin 16a 125250v t125 SPDT micro switch
Brand:
GangyuanItem NO.:
G20-16CM-150-08Order(MOQ):
50pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
3 Working Days after paymentOutline (mm)
27.80mm x 15.90mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X
omron 3 pin 16a 125250v t125 SPDT micro switch
Basic Information
| P/N | G20-16CM-150-08 |
| Rating | 125/250VAC 16A |
| Operating Force | 150±50gf |
| Life Time | 50,000 Cycles |
| Operating Temperature Range | -25℃~+125℃ |
| Dielectric Withstanding Voltage | 1500V AC 1Min |
| Certificate | UL,ENEC,CQC |
| Insulation Resistance | ≥100MΩ |
| Contact Resistance | ≤200mΩ |
| Soldering Temperature |
260±5℃ 5s |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
Previous:
Micro Limit SwitchNext:
T125 5e4 Micro SwitchIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
