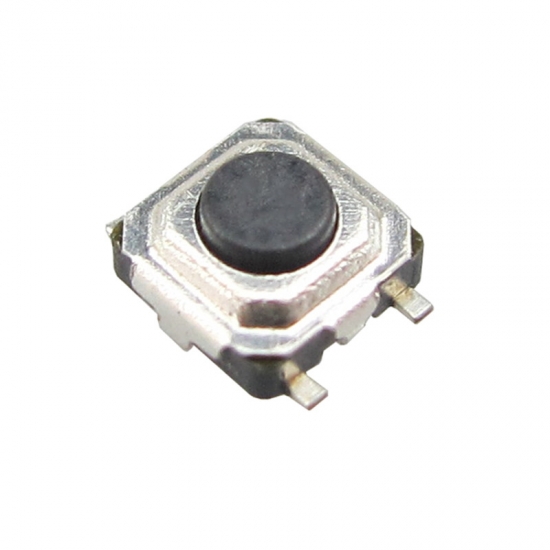

3*3mm smd switch surface mount push button switch
Brand:
GangyuanItem NO.:
KAN0341Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
silverShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after payment3*3mm smd switch surface mount push button switch
Product Description:
|
Model Name: |
Smd tact switch |
|
Model No.: |
KAN3541 |
|
Dimension: |
3 x3mm x H |
|
Operating force: |
160±30gf |
|
Life cycles: |
50000 times |
|
Working tempreture: |
-25℃to+80℃ |
|
DC rating: |
12V DC, 50mA (effective value) |
|
Insulation resistance: |
100MΩ min.100V DC |
|
Dielectric strength: |
250V AC for 1 min |
|
Contact resistance: |
100m Ω max. |
|
Full travel : |
0.15±0.10 mm |
|
Features: |
Super mini, high quality durable life |
Dimension:
