Home Switch Toggle switch Sub-Miniature Joystick Toggle Switch

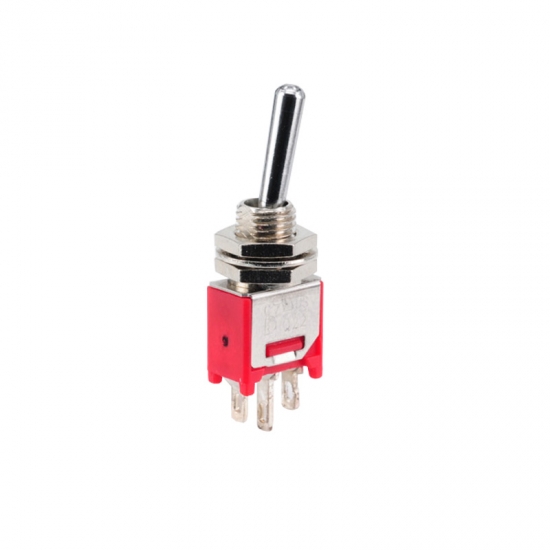

Sub-Miniature Joystick Toggle Switch

This series toggle switch comes in switch function, actuator height, terminal styles, contact material etc.

  • Brand:

    Gangyuan
  • Item NO.:

    2MS1T1B1M1QES
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    red
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    20 working days after payment
  • Product Detail

Sealed Ultraminiature Vertical Right Angle Toggle Switch


Feature

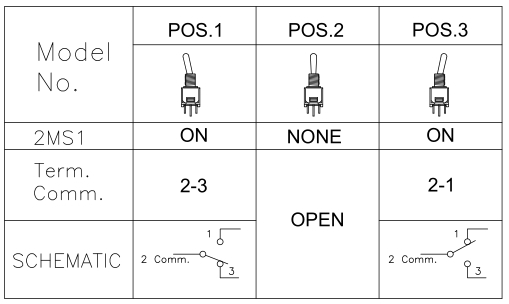

Sealed Ultraminiature pushbutton switch, PC thru-hole, right angle type, vertical right angle type terminals for choices. Switch functions offer ON NONE-ON, ON-NONE-MOM, ON-OFF-ON.Contact could be gold plated as customers' request.




Specification

Mechanical life: 30,000 make-break cycles

Contact resistance: 20mΩ max. initial@2-4V DC, 100mA

Insulation resistance: 1000MΩ min.

Dielectric strength: 500V RMS@sea level

Operating temperature: -30℃ to 85℃



Materials

Actutor:Brass, chrome plated

Bushing: Brass, nickel plated

Housing: Stainless steel

Switch support: Brass, tin plated

Terminal: Brass, with silver or gold plated.

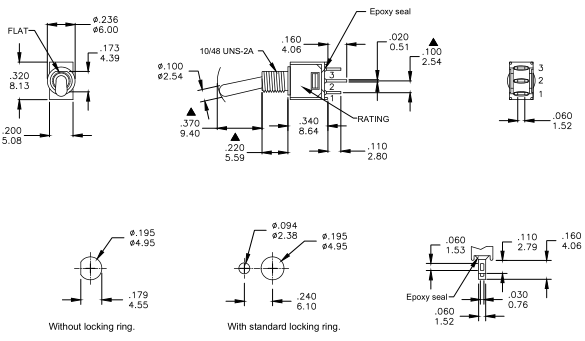

Dimension
