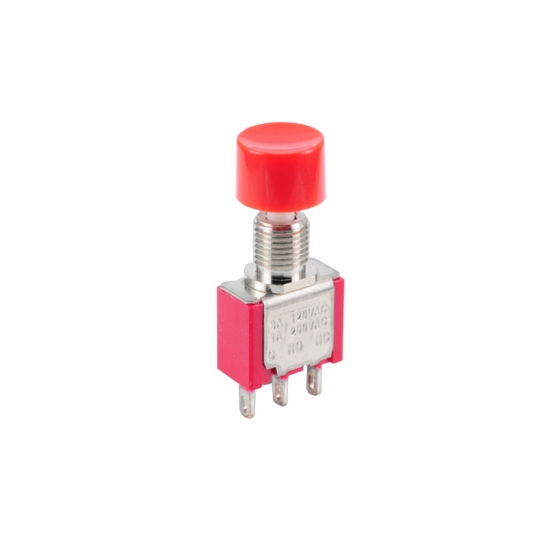

Snap-Acting Push Button Toggle Switch

This Series toggle switch provide a variety of switch functions,  SPDT, DPDT, 3PDT, 4PDT. Also Different shapes of handles and accessories fit for different applications ,such as Telecommunications, Instrumentation, Networking and Medical equipment etc.

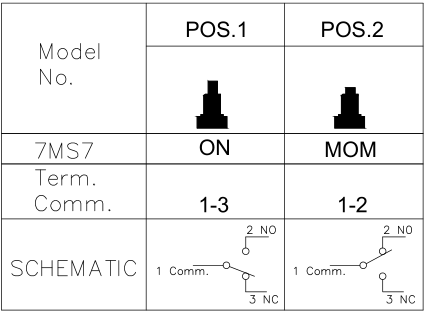

This toggle switch come in SP On-Mom function, a variety of cap colors for options, right angle, PC thru-hole style.

Sealed Ultraminiature pushbutton switch, PC thru-hole, right angle type, vertical right angle type terminals for choices.

This series toggle switch comes in switch function, actuator height, terminal styles, contact material etc.

Function Key 6pin electrical off-on push buttons switch Basic Information Product name Non-locking switch Model Number PB22E07 Rating 30V DC, 0.1A Solder temperature 245±5℃ Contact Resistance 100MΩ.max Insulation Resistan 100MΩ.min Heat resistance 80±2℃,72h Mositure resistance 72h,40±2℃ Revision A Operation life 10,000 cycles Dimension   Tact Switch Using Attention 1．Please consult us when considering to wash tact switches 2．Please don’t immerse soldering flux into tact switches 3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board 4．The second welding should be done after switches return to normal temperature Our advantage 1. Excellent R&D team, clients design requests are welcome. 2. Experience of more then two decades in switch manufacturing. 3. Two thousands invention patents and 47 utility model patents. 4. Assembly process in 100,000 grade dust-free workshop. 5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system. Application Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance; act Tactile Switch

A slide switch is a mechanical device that is commonly used for controlling an electrical circuit. It utilizes a simple sliding action to move the switch from an open position to a closed one, or vice-versa. As maintained-contact switches, slide switches remain in one state until manually actuated into another state.

KAN0441B: DC12v 50mA,  100gf/ 160gf/ 260gf, mini micro tact switch.

Subminiature SMD Slide Switch: SPST (Single Pole Single Throw) SPDT (Single Pole Double Throw) DPDT (Double Pole Double Throw) DPST (Double Pole Single Throw)
