A tact switch is a switch that turns a circuit on and off by gently pressing it. It is usually composed of buttons, contacts, circuit boards and other parts. The touch switch has the characteristics of small operating force, long button life, and stable contact points. It is widely used in electronic equipment, household appliances, instruments and other fields.
Brand:
GangyuanItem NO.:
KAN0611-0702C010-B42Order(MOQ):
1000Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time：
7-15 working daysOutline (mm)
6.00mm x 6.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

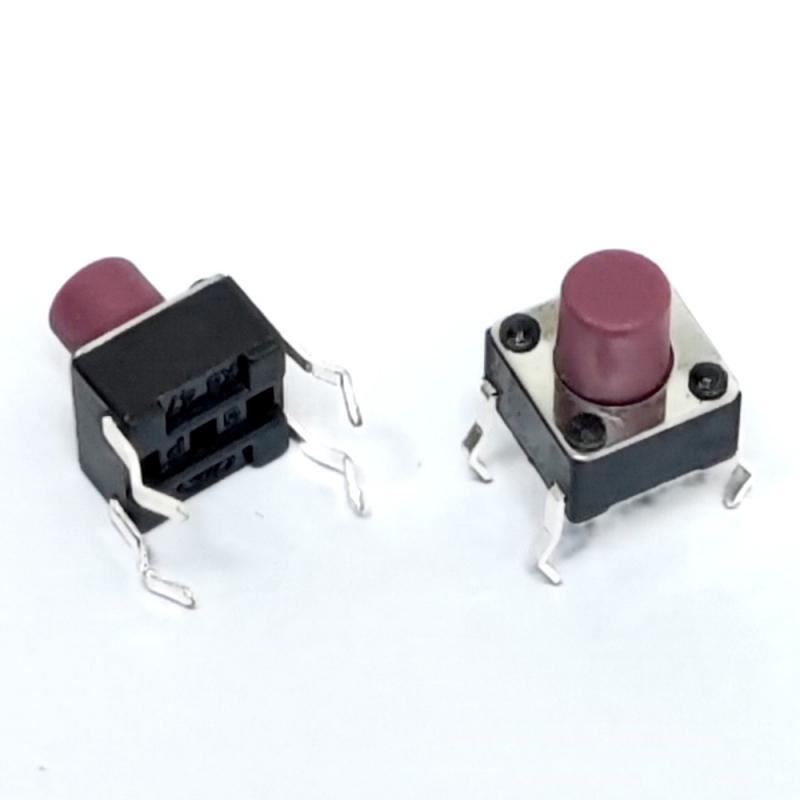

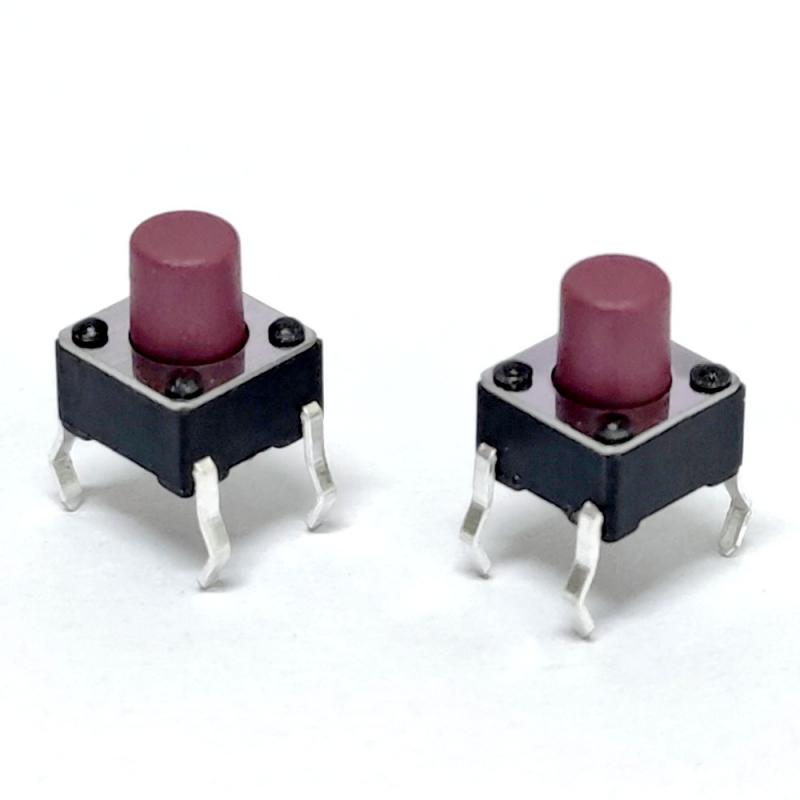

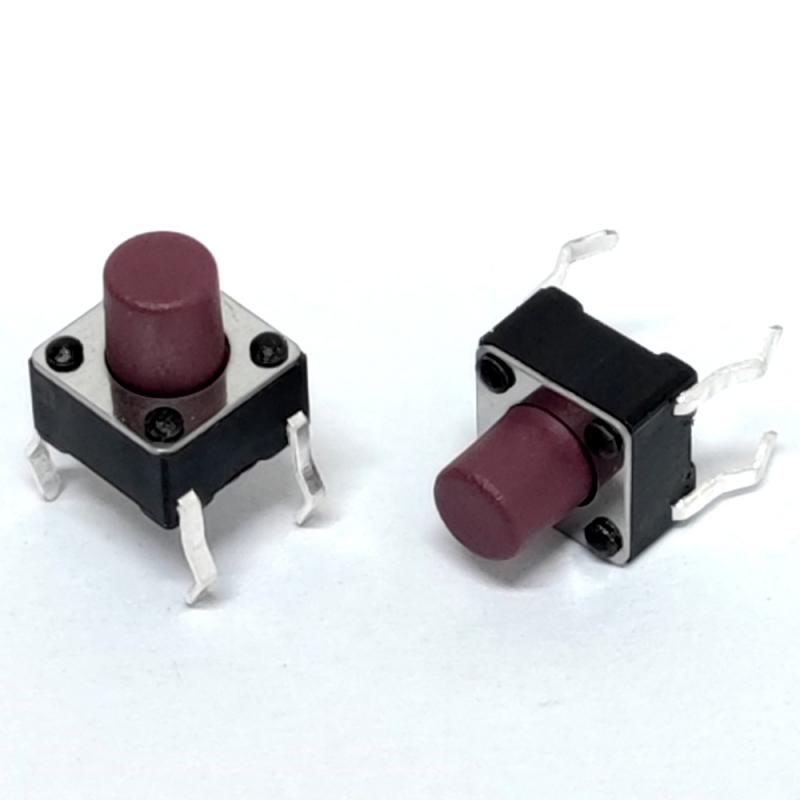

IP4XMomentary tact switch push button THT 4 pin 6x6mm tactile switch
Characteristics
Type: Round head mini push button tact switch
Ratings: DC 12V 50mA（Max）DC 1V 10μA （Min）
Operating Force: 260±50 gf
Product height: 7mm
Operation life: 100,000 cycles

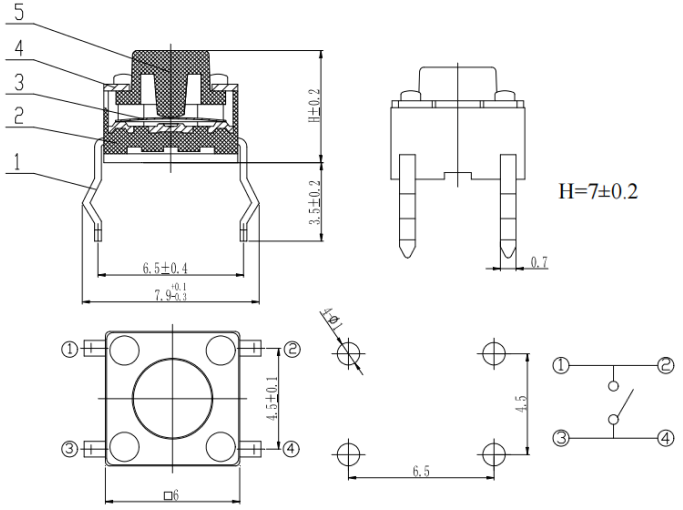

Tactile switch sizes
How to use a tact switch ？
1. Choose the right tact switch: Before using a tact switch, you must first choose the right model and specification.
According to actual needs, choose a tact switch with appropriate size, rated voltage and current.
2. Identify the pins of the tact switch: A tact switch usually has multiple pins for connecting the circuit.
Before use, you need to identify the function of each pin to ensure correct connection.
3. Test the tact switch: After completing the installation and connection, test to ensure that the tact switch works properly.
Press the switch gently and observe the reaction of the circuit to ensure that the switch can normally switch on and off the circuit.
Intelligent application: 6×6 tact switch is combined with intelligent technology to achieve remote control and intelligent management.
Through the smart home system, users can remotely control home appliances; in the field of industrial automation, 6×6 touch switch is combined
with control systems such as PLC to achieve automatic control of equipment.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.

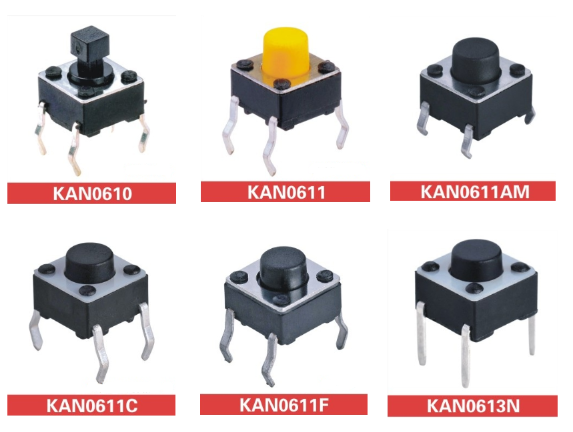

Categories
