Wenzhou Gangyuan Electronics Co.,Ltd.
There are various heights and operating forces for customer choice.
Brand:
GangyuanItem NO.:
KAN0654-0501BPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 Working Days For PaymentOutline (mm)
6.00mm x 6.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4XPCB long-lasting and highly responsive 50mA 12V tact switch
china tact switch wholesaler
Parameter

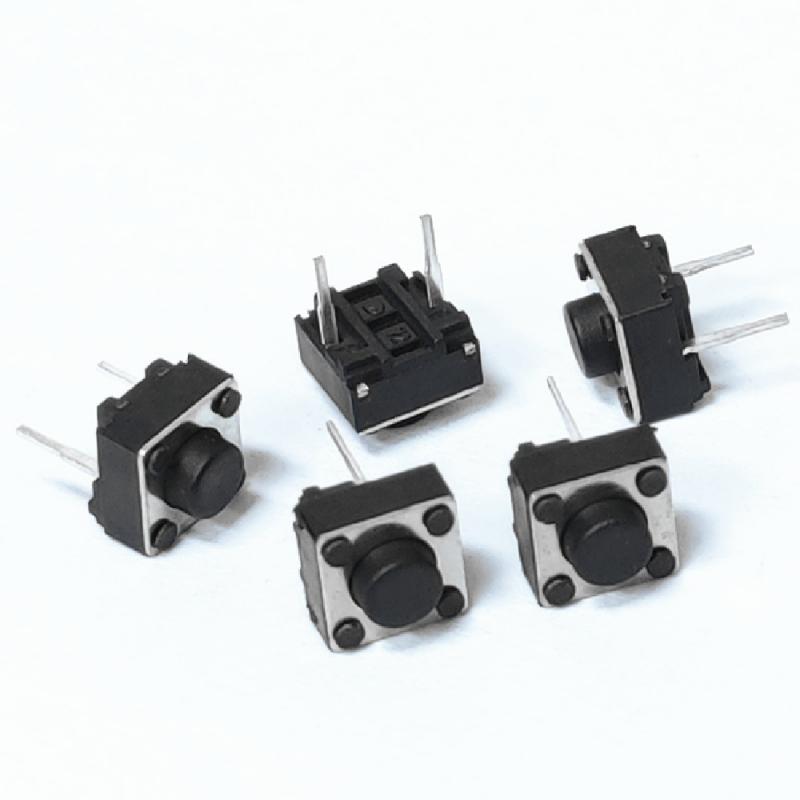

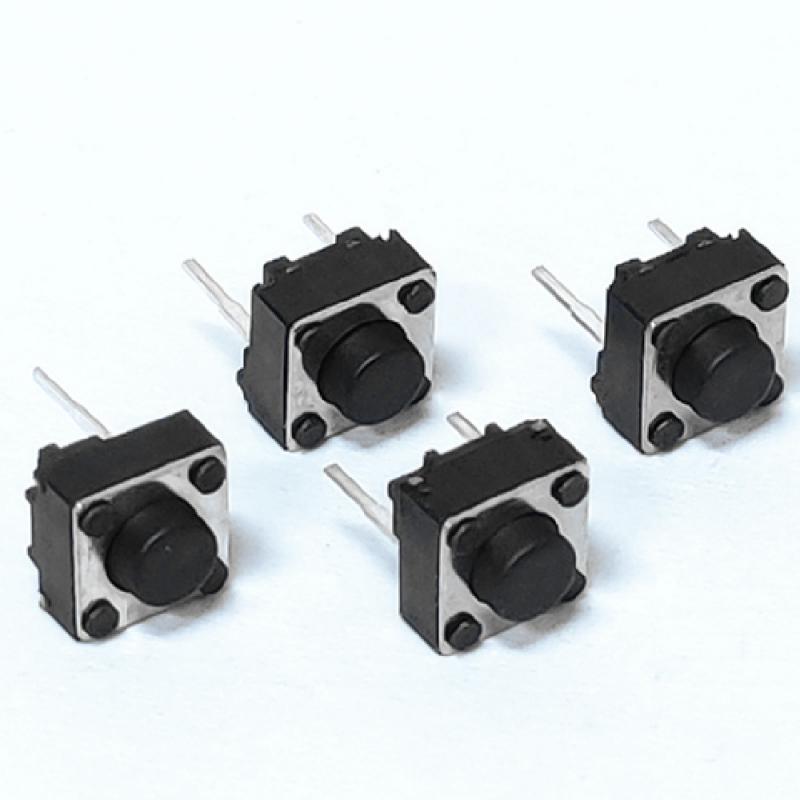

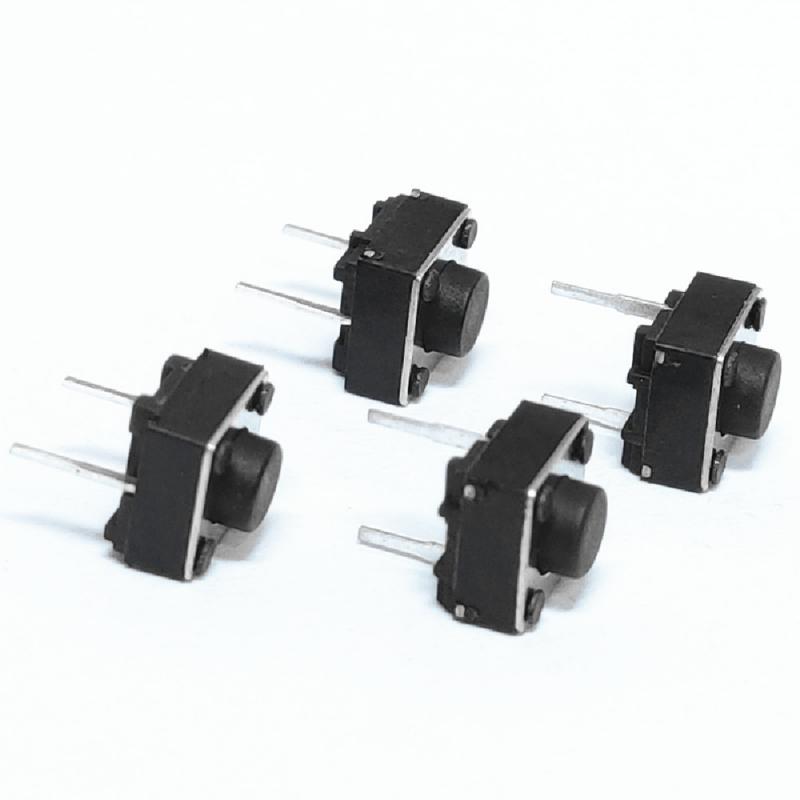

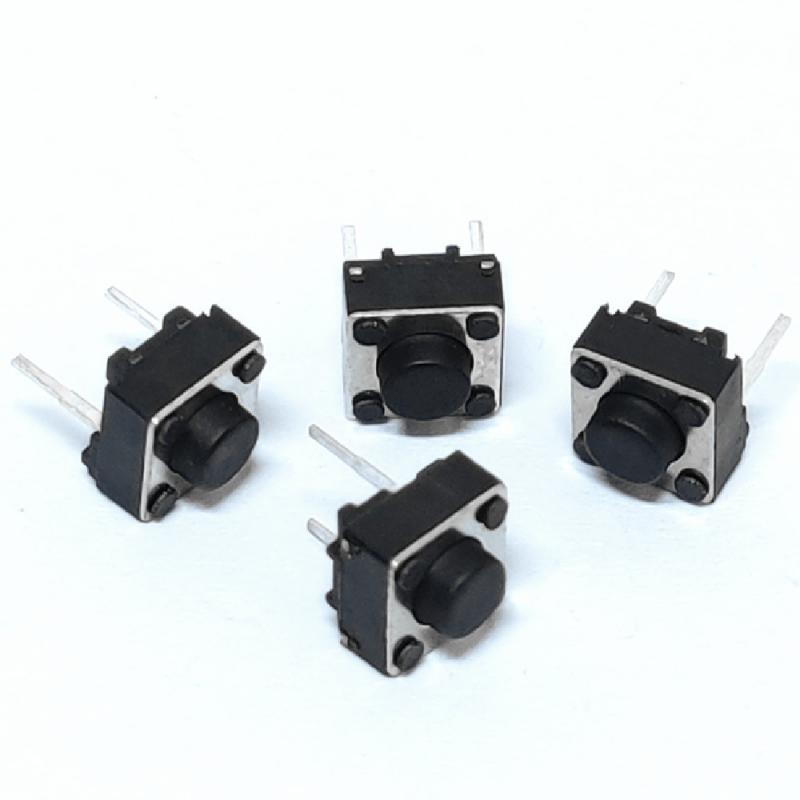

Dip tact switch 6x6
Contact Resistance:≤100mΩ
Insulation Resistance:≥100MΩ
Operating Force:160±50 gf
Full Travel:0.25±0.1mm
Operation life:80,000 cycles
Product Height: 5mm

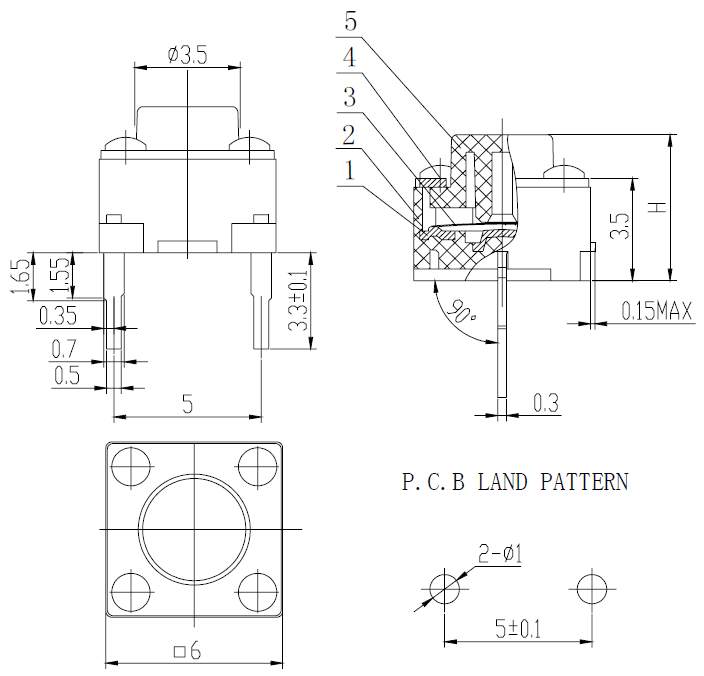

Drawing
Specifications Applicable
Tactile switches include dome switches located under a rubber bubble or dome. When the dome switch is pressed, the dome collapses and the switch makes contact. Tact switches are available in a variety of sizes and actuator styles, and feature LED functionality. Tact switches are designed for use in keyboard, keypad, instrument and interface control panel applications. They are used in large quantities in aerospace, communications, defense and all electronic instrumentation applications.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
KAN0656: DC 12v 50mA, smd, water resistance type tact switch.
KAN0616: Dip switch, water resistance IP67, 6*6mm mini tact switch.
KAN0611: DC 12v 50mA, 6*6mm, 4 pins tact switch.
6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch.
12V IP67 waterproof switch push button tact switch china, 4pin dip tact switch, 100,000/200,000 cycles for optional,use for Kitchen appliances, smart toilet covers. Small appliances, white electricity, black electricity require a variety of operational switches for waterproof construction.
This kind of switch is silent, often used in car industry.
Item: KAN0641 Size: 6*6*H (4.3-18mm) Rating: 12VDC 50mA Operating life: 60,000/ 80,000/ 100,000 cycles Operating force: 100gf, 160gf, 260gf MOQ: 1000
KAN0673: 6×6mm, side horizontal type tact switch.
For inquiries about our products or pricelist, please leave to us and we will be in touch within 24 hours.
