Microswitches are all around us in daily life. They are used in air conditioning units, washing machines, consumer devices such as refrigerators and microwave ovens, and lift buttons and door locks. These versatile switches are also used in robotics to control motion.
Brand:
GangyuanItem NO.:
G20-10EN-150-04Order(MOQ):
500pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
27.80mm x 15.90mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4XSpecifications
Voltage Rating:125/250V AC
Current Rating:10A
Contact Resistance:≤200mΩ
|nsulation Resistance:>100MΩ
Soldering Temperature:260±5℃ 5s
Operating Force:150+50g
Life Time(mating cycles):50000 Cycles

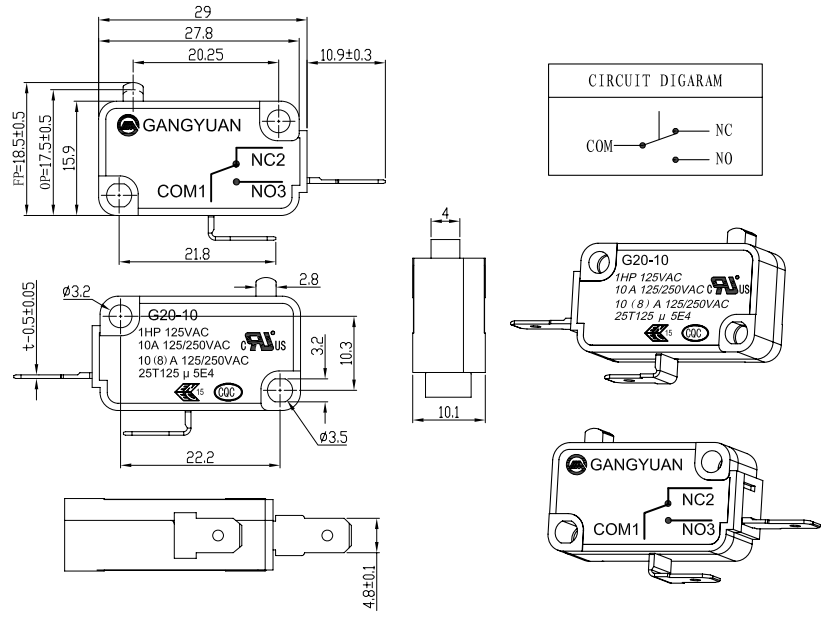

Dimensions

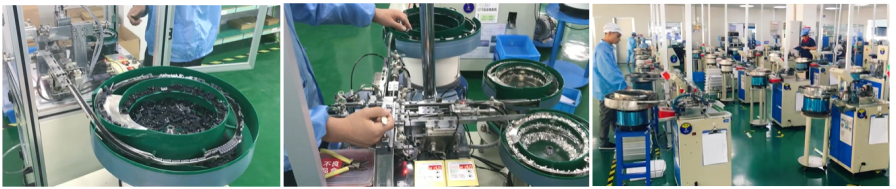

Gangyuan Micro Switch Manufacturing Excellence
Established in 1994, our company is a trusted leader in micro switch production, backed by decades of expertise in precision manufacturing.
With three fully equipped factories and advanced automation systems, we deliver high-quality, reliable micro switches tailored to diverse industrial
applications.
micro switch for microwave / Miniature snap-action switch / Micro Switch Limit Switch
Key Strengths
Mature Manufacturing Expertise: Over 30 years of specialized experience in micro switch design, engineering, and production.
Scalable Automation: State-of-the-art automated equipment across three factories ensures consistent precision, efficiency, and large-volume output.
Strict Quality Control: Rigorous testing protocols guarantee durability, performance, and compliance with international standards.
Custom Solutions: Ability to develop tailored micro switches to meet specific customer requirements.
Previous:
Factory SPDT Micro Switch 5e4 25t125 Micro SwitchNext:
Electronics 125/250VAC mini Micro SwitchIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
This Micro Switch is free from overtravel restrictions, permit easy setting
3~26A heavy current micro switch, the G20 Series snap-action switch is UL certified.
Micros witches have three terminals labelled C, NO, and NC, standing for Common, Normally Open, and Normally Closed.
16A 125/250VAC Micro switches ,adapt to a variety of installation.
G20-06EN-150C-42: 6A 125/250VAC, 150±50gf, 10,000 cycles micro switch.
High quality10A 250VAC 5e4, 25t125, 2pin electronic micro switch
High quality mini cherry Micro switch 5a 125/250vac switch 250v 5e4 t125
125/250vac 16A SPST-NO Electronics 125/250VAC mini Micro Switch
