12V micro push button micro switch

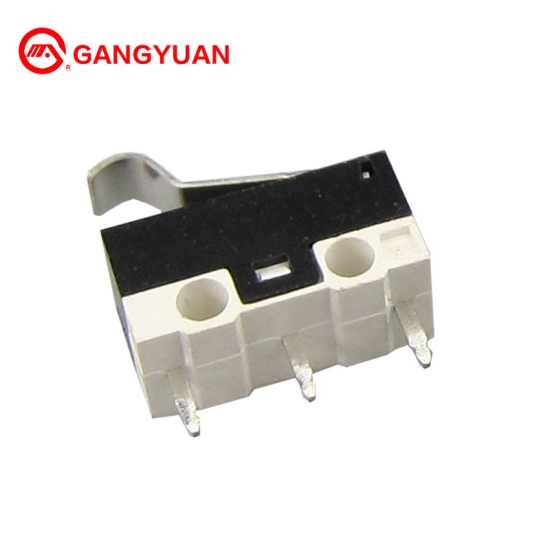

12.8*5.8mm 3 pin Micro Switch 12V micro push button micro switch

Brand:
Gangyuan
Item NO.:
DMI-05PW-30-3
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black and white
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Outline (mm)
12.80mm x 6.60mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

12.8*5.8mm 3 pin Micro Switch 12V micro push button micro switch

Product Description

Model Name:	Micro Switch
Model No.:	DMI-05PW-30-3
Dimension:	12.8mm*5.8mm
Operating force:	80±15gf -180±15gf
Operating temperature:	-25°C+85°C
Mechanical life:	500,000 Cycles
Rated load:	AC 125V 1A
Insulation resistance:	AC 500V 1Minute
Withstand voltage:	250V AC / 1 min
Contact resistance:	≤100mΩ
Features:	Type: Small fretting Features: short pressure handle Customized selection: AC 125V 3A

Dimension

size 2.png
