Home Switch Tactile switch small tact switch used in car

small tact switch used in car

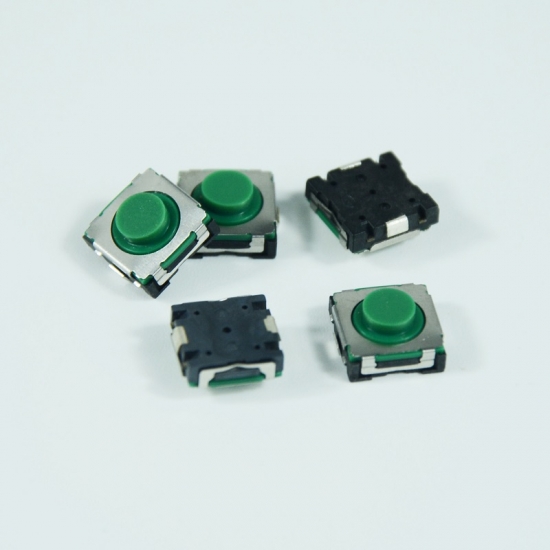

2 pin square silicone rubber tactile small tact switch used in car

  • Brand:

    Gangyuan
  • Item NO.:

    KAN8540-04006M0501
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Outline (mm)

    8.30mm x 8.30mm
  • Mounting Type

    Surface Mount
  • lllumination

    Non-llluminated
  • IP Rating

    IP67
  • Product Detail


2 pin square silicone rubber tactile small tact switch used in car



Basic Information

P/N KAN8540-04006M0501
Rating 16VDC 50mA
Dimension 8.5X8.5X4mm
Operating Force 400±50 gf
Life Cycles 800,000 cycles
Travel 0.9±0.3mm
Salt Mist 8h±1h,35℃±2℃

Dimension


KAN8540.jpgKAN8540-04006M0501 2.jpg


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
