DIP switches are widely used in data processing, communication, remote control, anti-theft automatic alarm system, air shower, air conditioning control panel, train model and other products that require manual programming.
Brand:
GangyuanItem NO.:
BMIC04S-RG-4FOrder(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Black and White and GoldShipping Port:
WenZhou/ShenzhenLead Time：
7-14 Working Days For PaymentOutline (mm)
10.16mm x 6.00mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
No IP RatingFlush slide actuator 25mA 24V digital dip switch

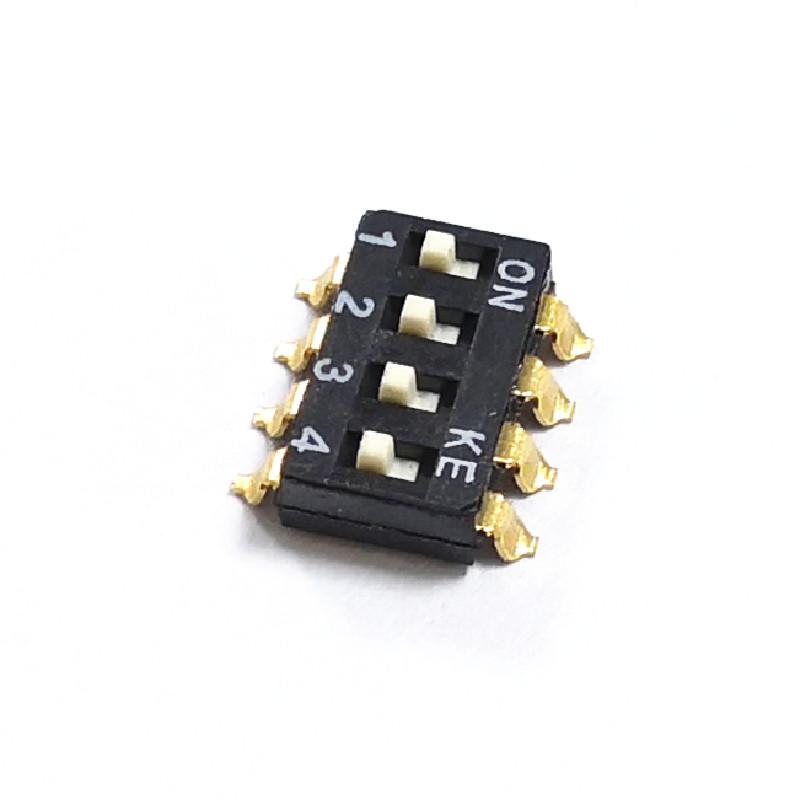

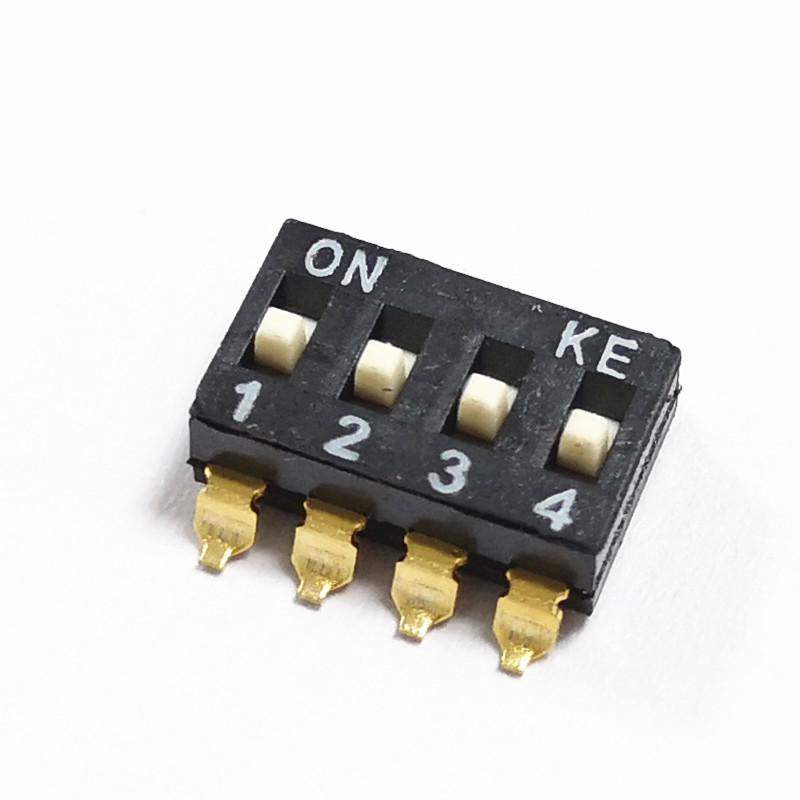

4 way gull wing multiplus dip switch
Parameters
Switch Capacitance: Max 5PF
Life: 1,000cyclesCover: PPS

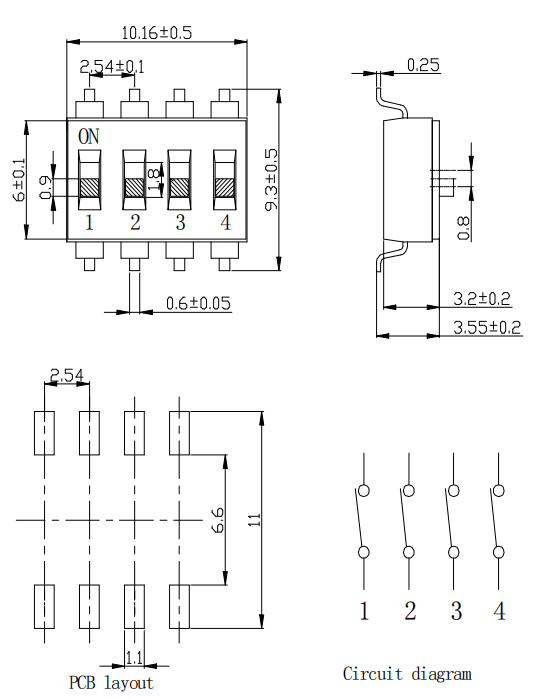

Drawing
Types of DIP switches
DIP switches come in a variety of types, including surface mount dip switch, dip style, angle style, slide actuators, piano actuators, rotary actuators, and more.
1） The sliding DIP switch is a standard toggle switch. Each switch has two positions-off or on (also on/off or 1/0), so it operates as an SPST switch. There are also three-position sliding DIP switches with a neutral position in the middle and a contact at each end, which is usually configured as on/off/on. Any DIP switch can be configured as normally open (NO) or normally closed (NC). The normally open switch completes the circuit when starting, and the normally closed switch disconnects the circuit when starting.
2） Piano DIP switches are similar to sliding DIP switches. However, the piano DIP switch is not placed horizontally, but moves the actuator through forward and backward movements, but is vertical, requiring up and down movements.
3） When the user rotates the actuator in a circular motion, turn the DIP switch to switch the position. The amount of rotation determines the output of the switch. The rotary DIP switch with four output pins can generate up to 16 different binary code output configurations. It can also be configured to operate as an SPDT device and can provide three or four throws for a single pole.
2.54mm IC DIP switch specifications

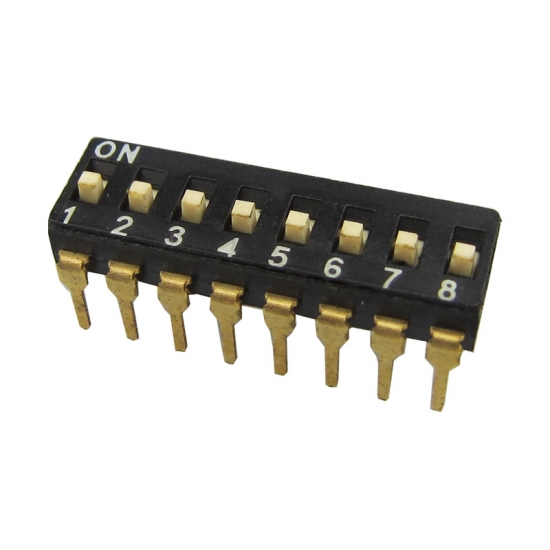

2.54mmIC Dip actuator dip switch
SPECIFICATIONS
Operating Temperature Storage Temperature： -40°C to 85°C

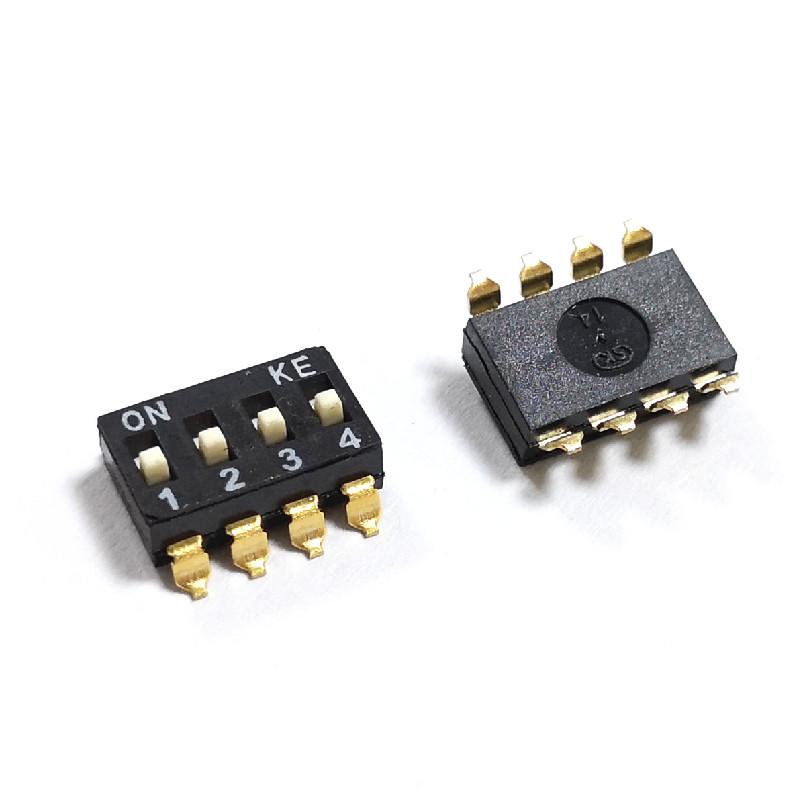

2.54mmIC SMD actuator dip switch
SPECIFICATIONS
Operating Temperature Storage Temperature： -40°C to 85°C
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories

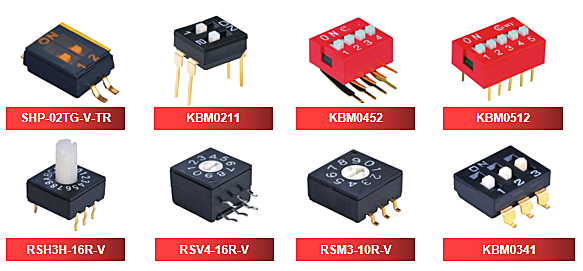

CDM series DIP switch, low profile for space saving, gold contact provides high reliability, top tape type for washing process.
