DIP switches are typically presented as a row of tiny toggle (on/off) switches, rather like a series of miniature standard light switches, mounted sequentially on a block of heat-resistant thermoplastic polymer.
Brand:
GangyuanItem NO.:
BMIC10LOrder(MOQ):
1000Payment:
T/T, Paypal full payment before produceProduct Origin:
Zhejiang, China (Mainland)Color:
BlueShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
10.00mm x 10.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
No IP Ratingflat knob 10 position surface mount dip switches
Dip switch datasheet

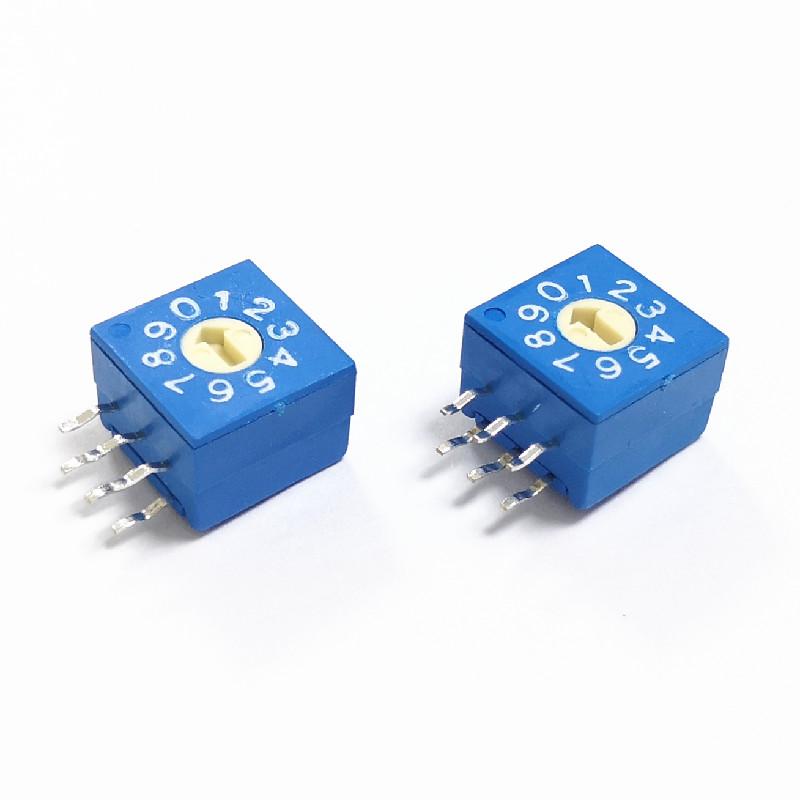

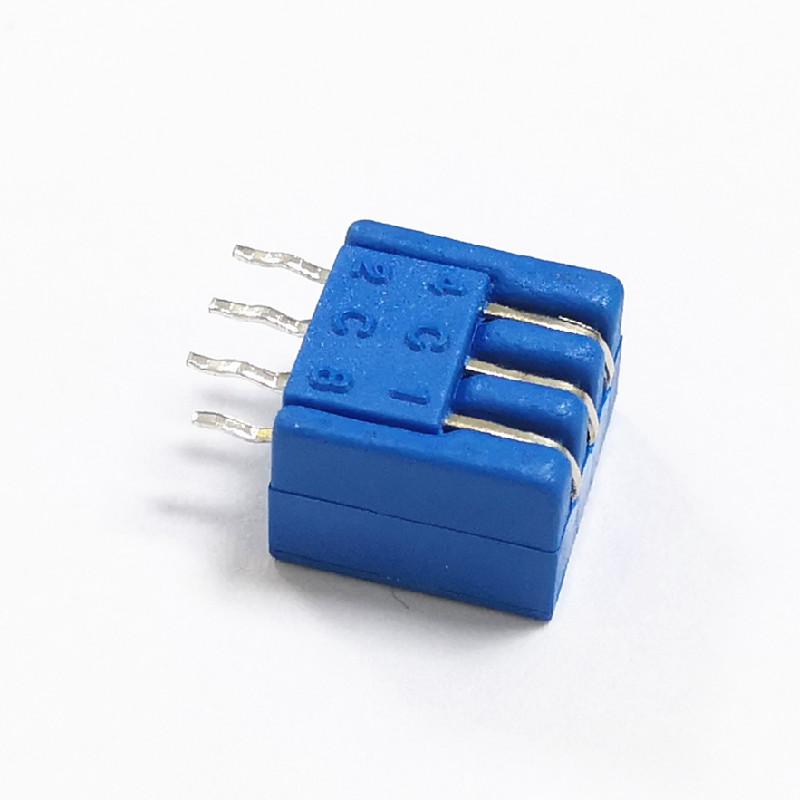

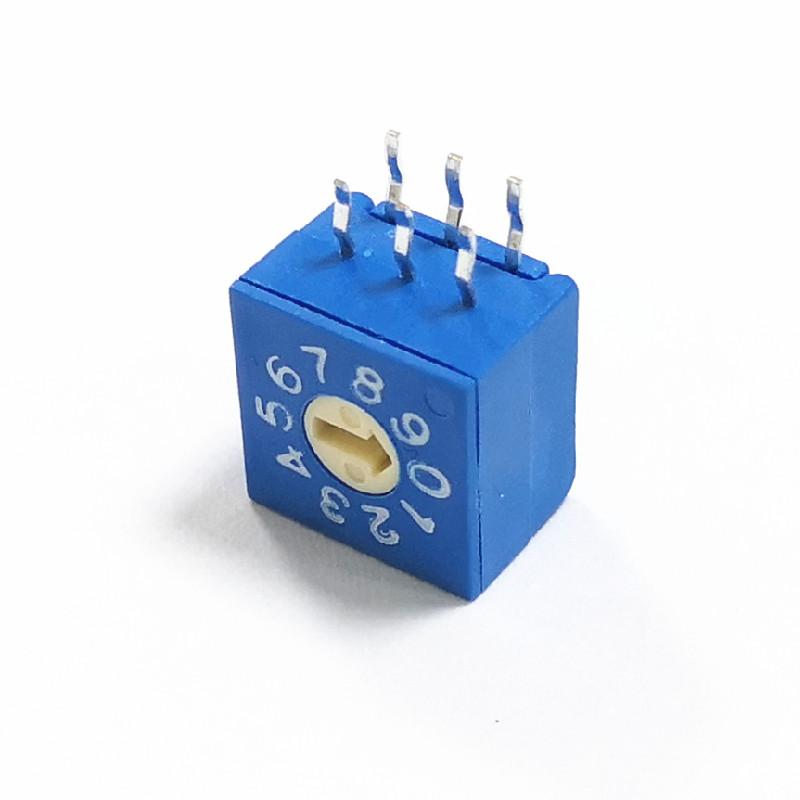

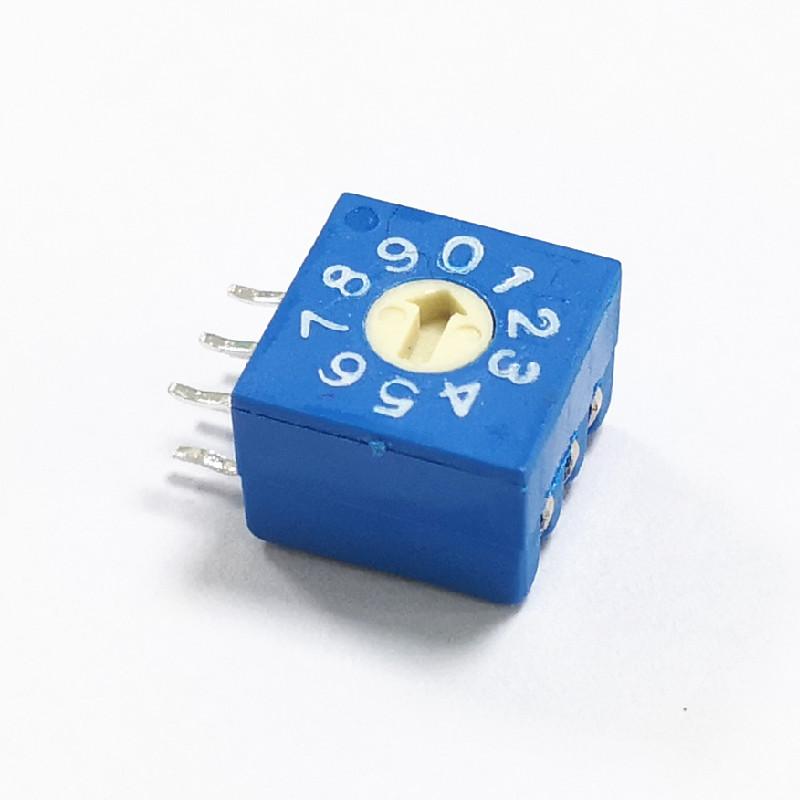

Type:10*10 blue rotary dip switch
Contact Rating
Non Switching: Max. 50VDC 100mA
Contact Resistance : 100mΩ Max
Insulation Resistance : 1,000MΩ Min. at 100VDC
Operating Force: 750gf/cm (Standard) , 400gf/cm Max. (N type)
Life: 20,000 Steps
Body color choose: Black / Blue

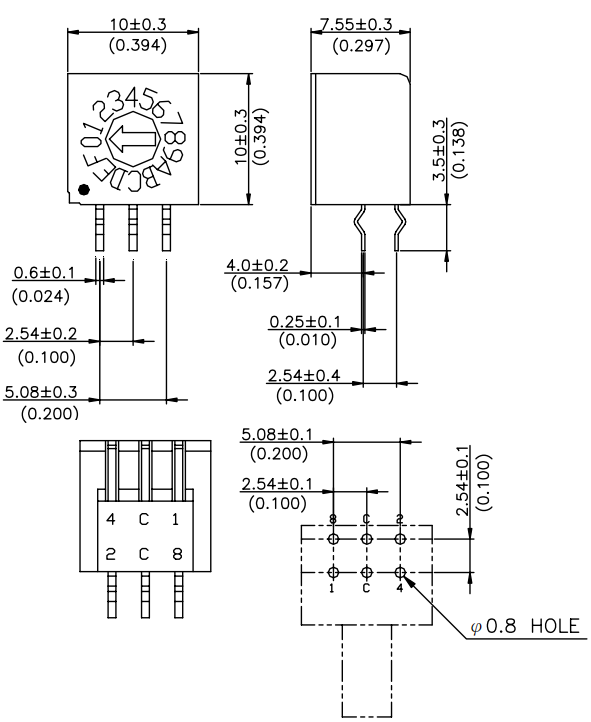

Dip switch datasheet diagram
Remove the receiver box cover to look at the dip switch settings.You will see four sliding buttons.
The button configuration must match the remote control's configuration. Change the dip switch settings if necessary,
moving each of the four switches to the matching "On" or "Off" settings.
