Home Switch Slide switch Slide type 8 pin slide switch with 3 position

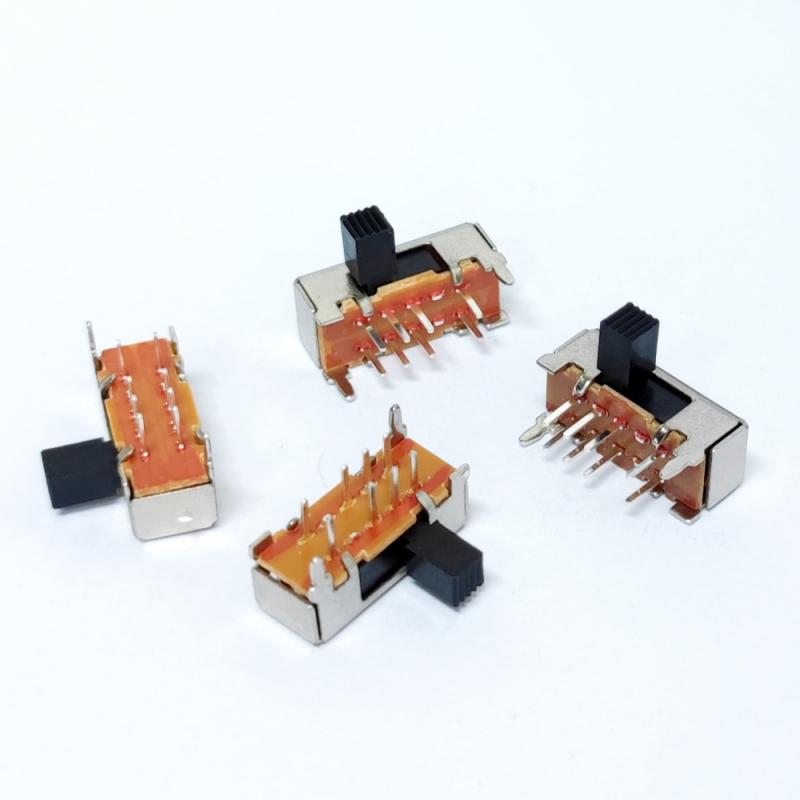

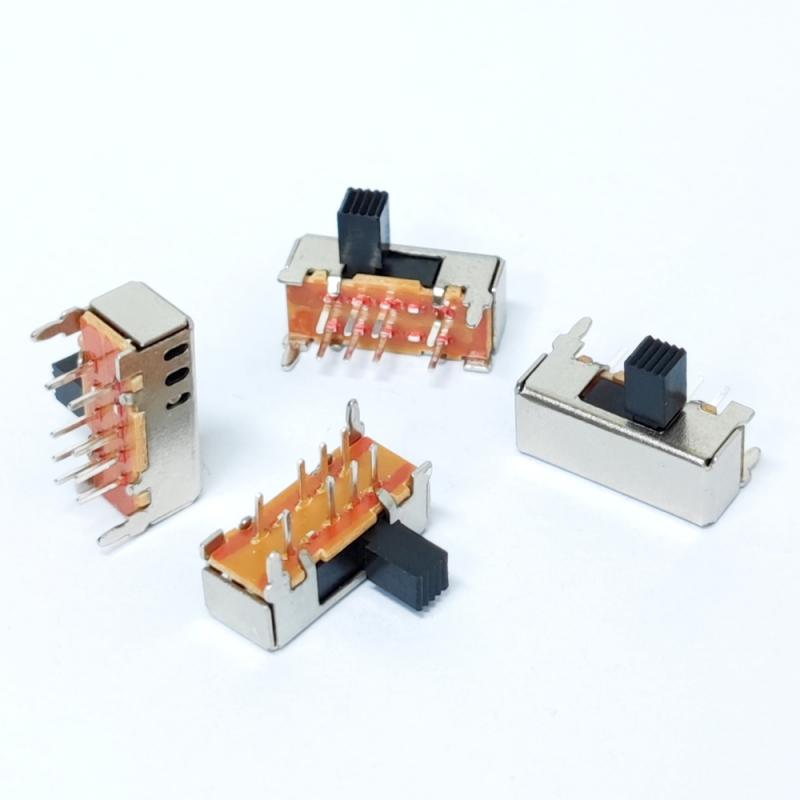

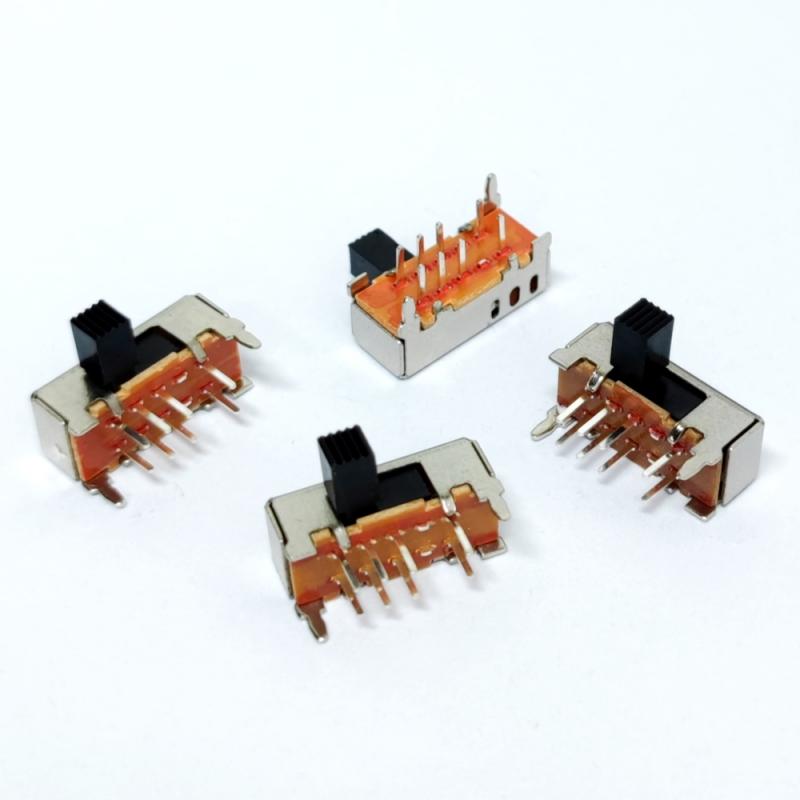

Slide type 8 pin slide switch with 3 position

The toggle switch is used to switch the circuit on or off by toggling the switch handle.

  • Brand:

    Gangyuan
  • Item NO.:

    SK23D06-G5
  • Order(MOQ):

    1000
  • Payment:

    100% before production
  • Product Origin:

    Wenzhou
  • Color:

    Black
  • Shipping Port:

    Ningbo or Shenzhen
  • Lead Time:

    7-15 working days
  • Outline (mm)

    15.10mm x 6.30mm
  • Mounting Type

    Right Angle
  • lllumination

    Non-llluminated
  • IP Rating

    No IP Rating
  • Product Detail

Mini ON-ON-ON right angle switches DP3T sliding switch


 Typical Specifications


Type: Horizontal three position slide switch / 8P DPDT Panel Mount Micro Slide Switch

Ratings: 0.3A 50V

Operating Force:250±100gf

Full Travel: 2±0.2mm

Operation life: 10,000 cycles

Slide switch knob: 5mm

Operating Temperature Range: -20℃~70℃

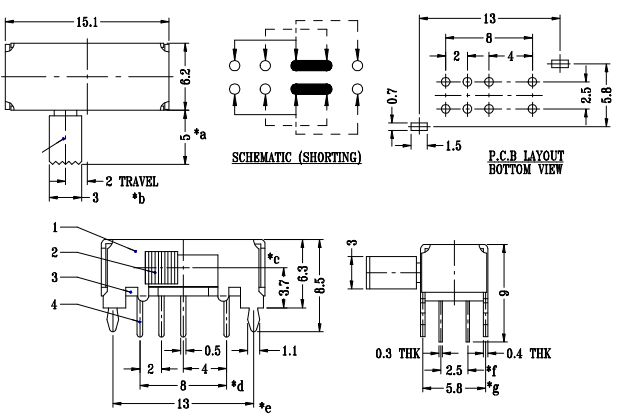

 Slide switch dimensions

knob vertical slide switch


 Slide switch types


Common types of toggle switches include single-pole double-position, single-pole three-position, double-pole double-position,

and double-pole three-position. They are generally used in low-voltage circuits and have flexible slider movements and stable

and reliable performance.

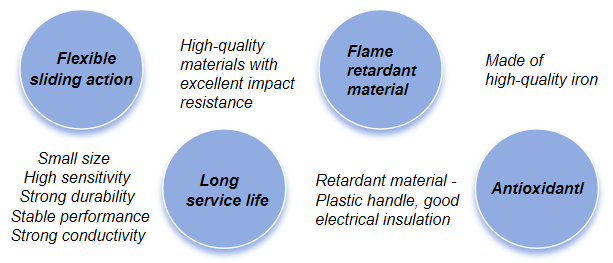

 Feature
