SPDT slide switches are also known as three-way switches because they link a single conductor to any of two other single conductors. In most cases, these switches have three terminals utilized in pairs. This standard switch may be used as an ON or OFF or a standard control switch.
Brand:
GangyuanItem NO.:
SK23D09-EG9Order(MOQ):
1000Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time：
7-15 working daysOutline (mm)
14.00mm x 8.50mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating

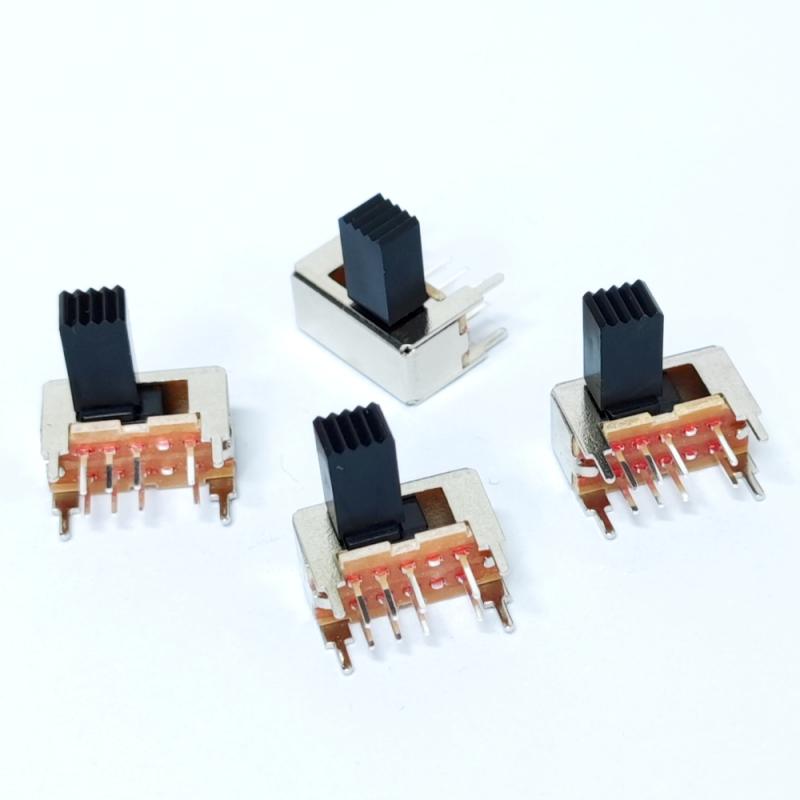

No IP RatingSlide switch 3 position PCB panel model mini vertical slide switch
Typical Specifications
Ratings: 0.3A 50V
Operating Force:250±100gf
Full Travel: 2±0.2mm
Operation life: 10,000 cycles
Slide switch knob: 9mm
Operating Temperature Range: -20℃～70℃

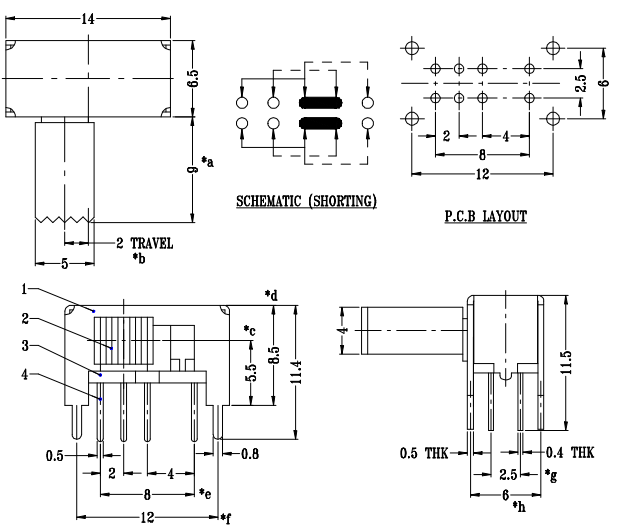

Slide switch dimensions

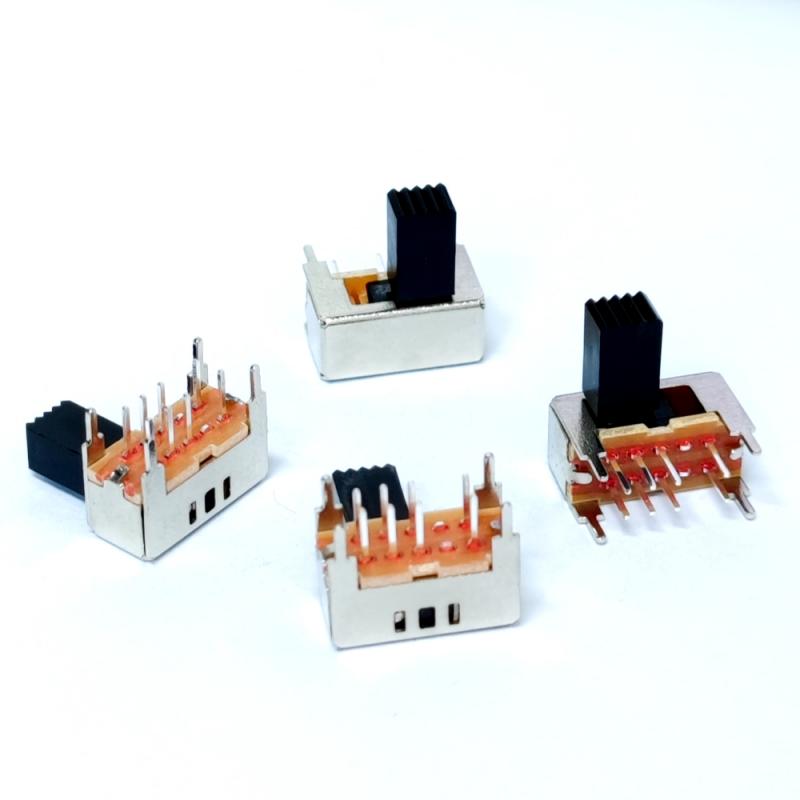

Raised slide actuator on-on-on slide switch

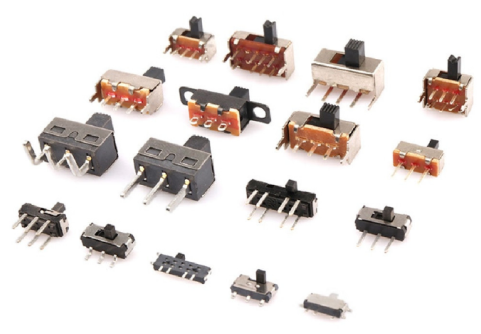

Five major advantages
There are many terminal types for slide switches, including feed-through style, wire leads, solder terminals, screw terminals,
quick connect or blade terminals, surface mount technology, and panel mount switches. The handle of the switch is either raised
or flushed, depending on the actuator type.
spdt slide switch / 2p3t slide switch / sliding switch 8p3t / miniature slide switch / slide dip switch
slide switch pcb mount / 2a 125vac slide switch / 24 pin slide switch / china slide switch plastic
