A compact and versatile DPDT Slide Switch that offers Double-Pole, Double-Throw functionality that allows easy toggle between two separate electrical circuits or positions.
Brand:
GangyuanItem NO.:
SK22H09-EG9Order(MOQ):
1000Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time:
7-15 working daysOutline (mm)
14.20mm x 6.50mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating

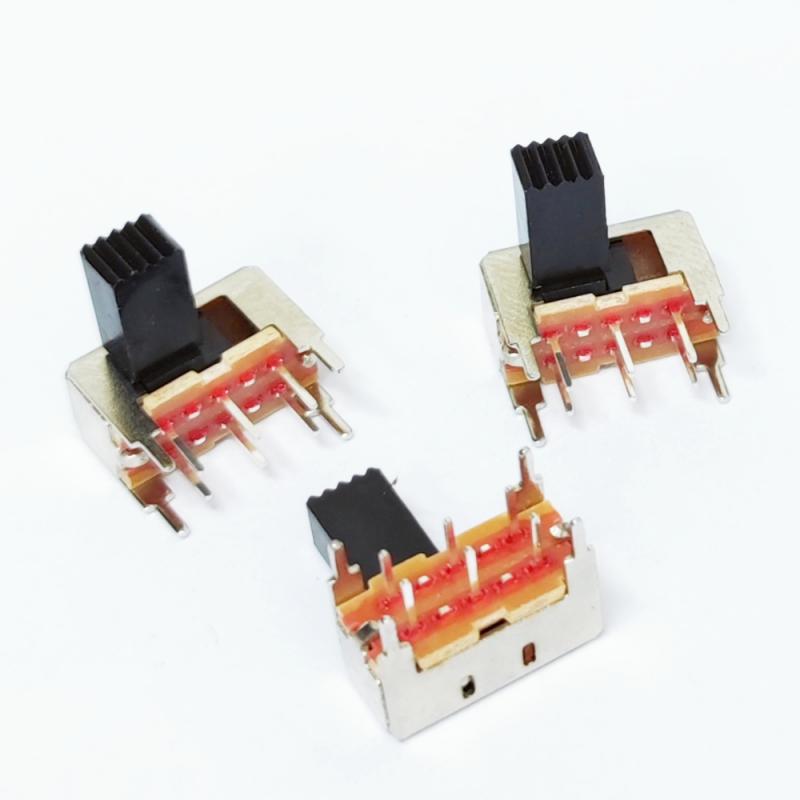

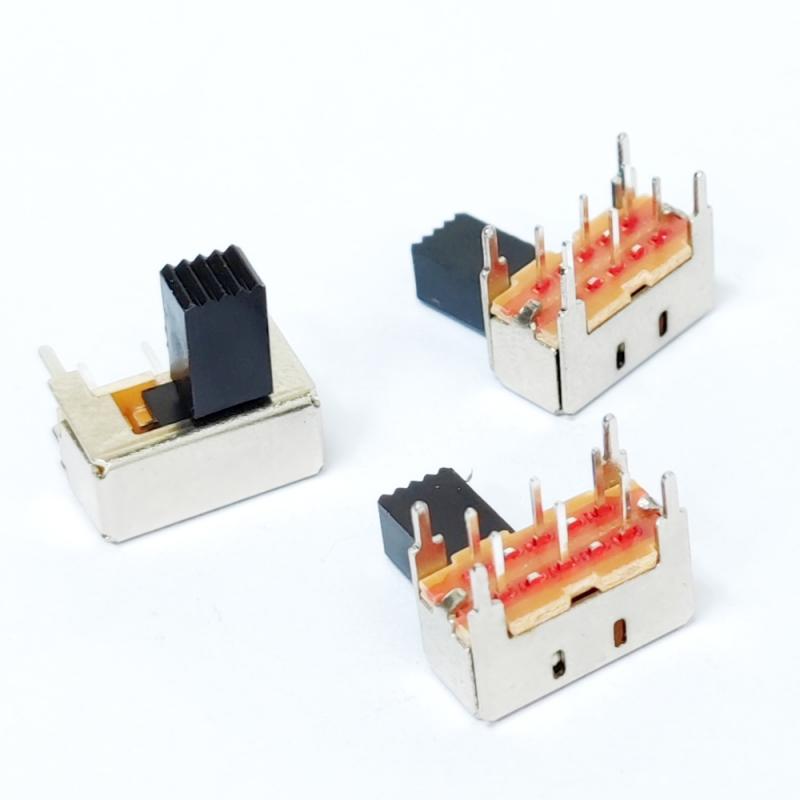

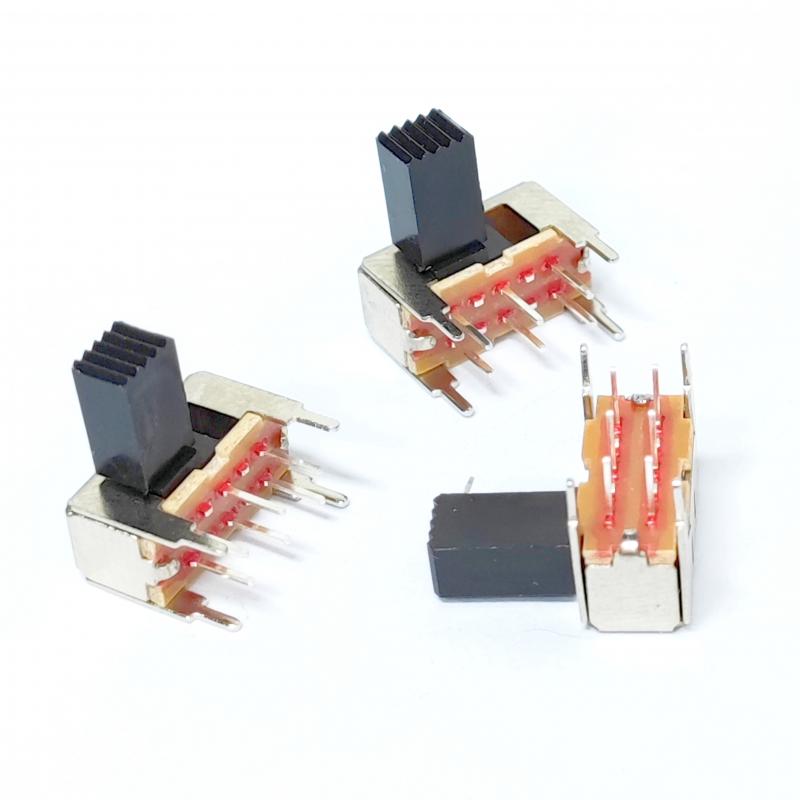

No IP RatingToggle slide switch pcb mount 2 pole 2 position slide switch
Typical Specifications
Ratings: 0.3A 50V
Operating Force:250±100gf
Full Travel: 2±0.2mm
Operation life: 10,000 cycles
Slide switch knob: 9mm
Operating Temperature Range: -20℃~70℃

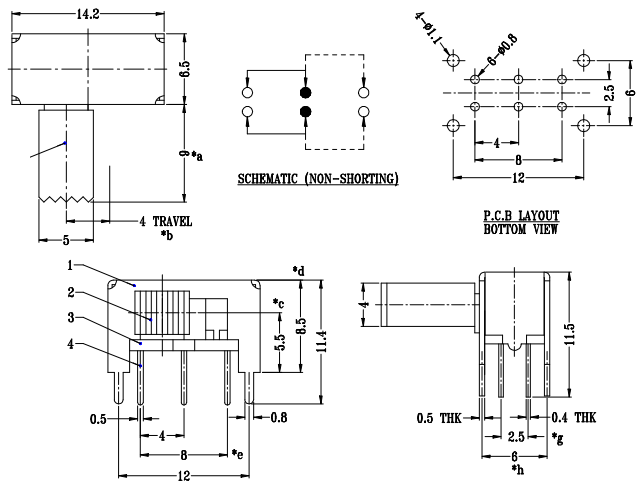

Slide switch dimensions
6 pin height knob sliding switch
Feature
Slide switch application
The products are widely used in: mechanical equipment, robots, model aircraft toys, industrial control equipment,
PCB motherboards, drones, automotive electronics, medical equipment, household appliances, digital products and other fields.
