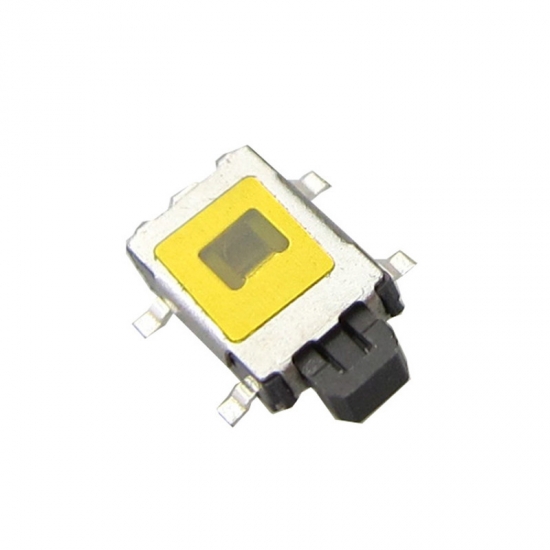

side push Tact switch

3x6 side push earphone Normlly Closed SMD tact switch

Brand:
Gangyuan
Item NO.:
KAN0443
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black and white
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Product Detail

3*3mm smd switch surface mount push button switch

Product Description:

Contact Rating	Ratings: DC 12V 50mA(Max) DC 1V 10μA (Min)
Contact Resistance	≤100mΩ
Insulation Resistance	≥100MΩ
Operating Force	200gf±50gf
Operation life	50,000 cycles
Heat resistance	80±2℃, 96h
Sulfuration resistance	40±2℃, 72h
Free samples range	30~50pcs

Dimension:
