Home Switch Tactile switch 15 Series tact switch Side push tact switch smd

Side push tact switch smd

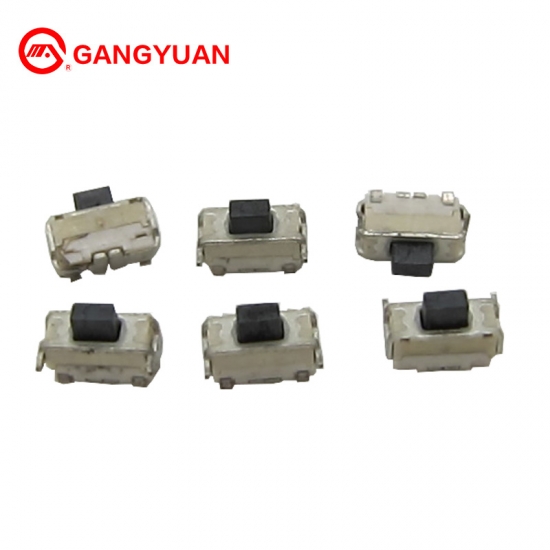

Side push tact switch smd smt  miniature push button switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN1542-0291C
  • Order(MOQ):

    50 pcs
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    black and white
  • Shipping Port:

    ningbo or shenzhen
  • Lead Time:

    3 Working Days after payment
  • Outline (mm)

    3.90mm x 1.55mm
  • Mounting Type

    Surface Mount
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail

Side push tact switch smd smt  miniature push button switch


Basic Information

Type Tact switch
Operting force 2.3±0.3N
Low resistance -40±2°C 120h
Heat resistance 85±2°C 120h
Salt mist 48h±1h 35±2°C
Operation life 200,000 cycle
Return force 70N Min
Full travel 0.15±0.05mm
Sullfuration resistance 72h 42±2°C
Moisture resistance 80% 120h

Dimension

micro tact switch.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
