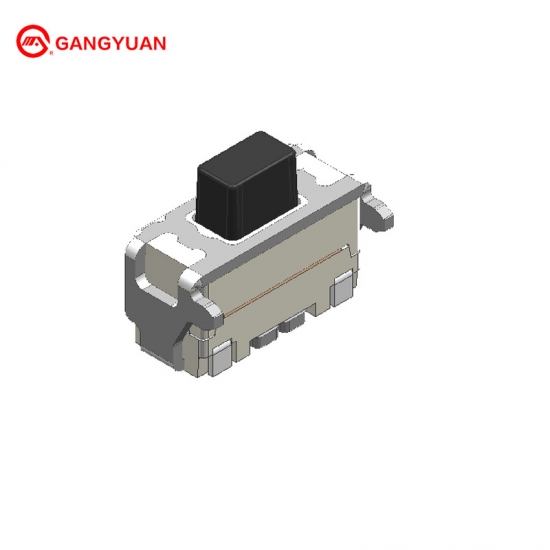

Waterproof IP65 Side Push Type SMD Tactile switch 2.9 High, Gangyuan New Product
Brand:
GangyuanItem NO.:
KAN1542Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
silverShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
3.90mm x 1.55mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4XWaterproof IP65 Side Push Type SMD Tactile switch 2.9 High, Gangyuan New Product
|
P/N
|
KAN1542
|
|
Type
|
SMD tact switch
|
|
Dimension
|
3.9x1.55x2.9mm
|
|
Operating force
|
160gf/230gf±50gf
|
|
life cycles
|
200,000 cycles Min
|
|
Travel
|
0.25mm±0.1mm
|
Specification
|
Contact resistance
|
≤50mΩ
|
Heat resistance
|
80±2℃, 96h
|
|
Insulation Resistance
|
≥100MΩ
|
Moisture resistance
|
60±2℃, 96h
|
|
Dielectric voltage proof
|
250V AC(50Hz/60Hz)/1min
|
Sulfuration resistance
|
40±2℃, 72h
|
|
Resistance to low temperature
|
-30±2℃, 96h
|
Salt Mist
|
35±2℃, 8h±1h
|
