SMD Tactile switch

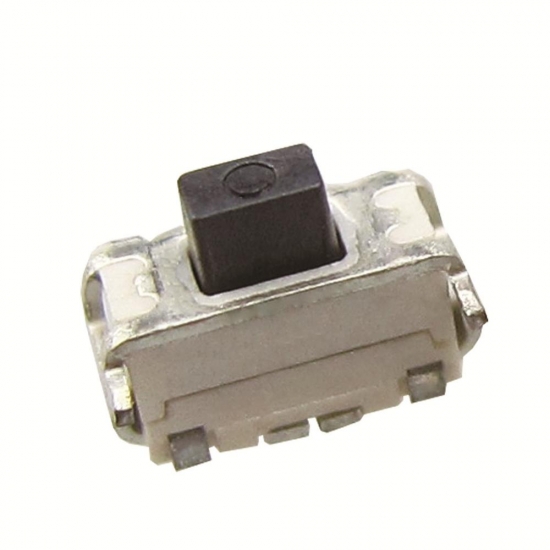

Waterproof IP65 Side pushbutton Type SMD Tactile switch

Brand:
Gangyuan
Item NO.:
KAN1542
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
white
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Outline (mm)
3.90mm x 1.55mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

Waterproof IP65 Side pushbutton Type SMD Tactile switch

Basic Information

P/N	KAN1542
Type	SMD tact switch
Dimension	3.9x1.55x2.9mm
Operating force	160gf/230gf±50gf
life cycles	200,000 cycles Min
Travel	0.25mm±0.1mm
Contact resistance	≤50mΩ
Insulation Resistance	≥100MΩ
Heat resistance	80±2℃, 96h

Dimension

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
