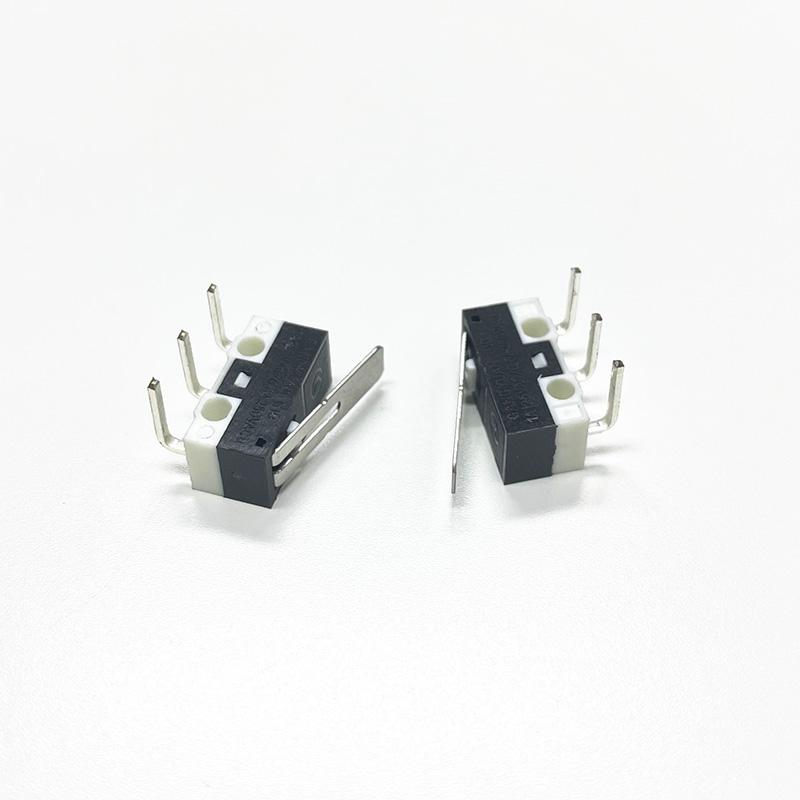

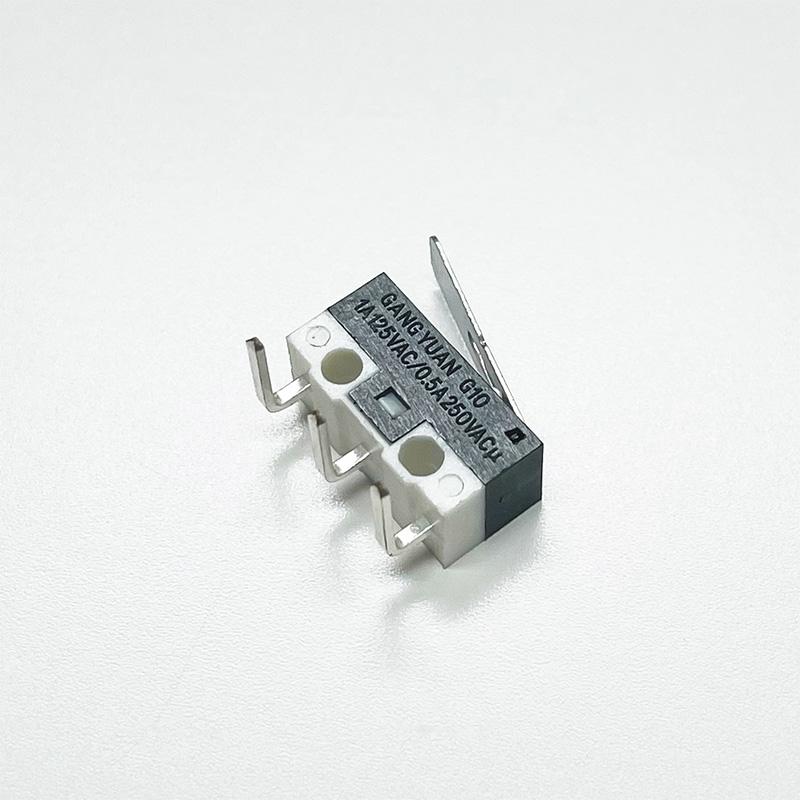

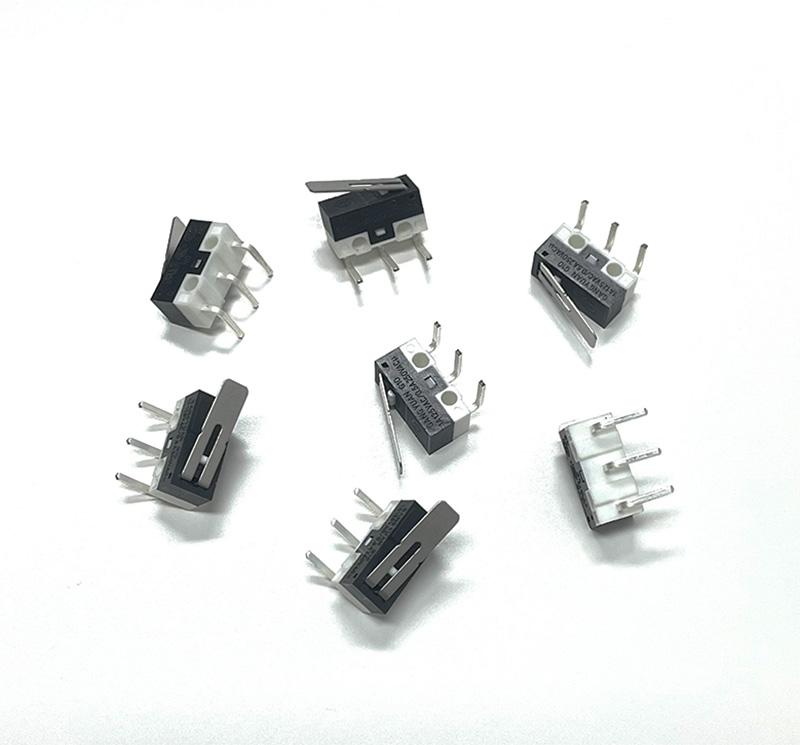

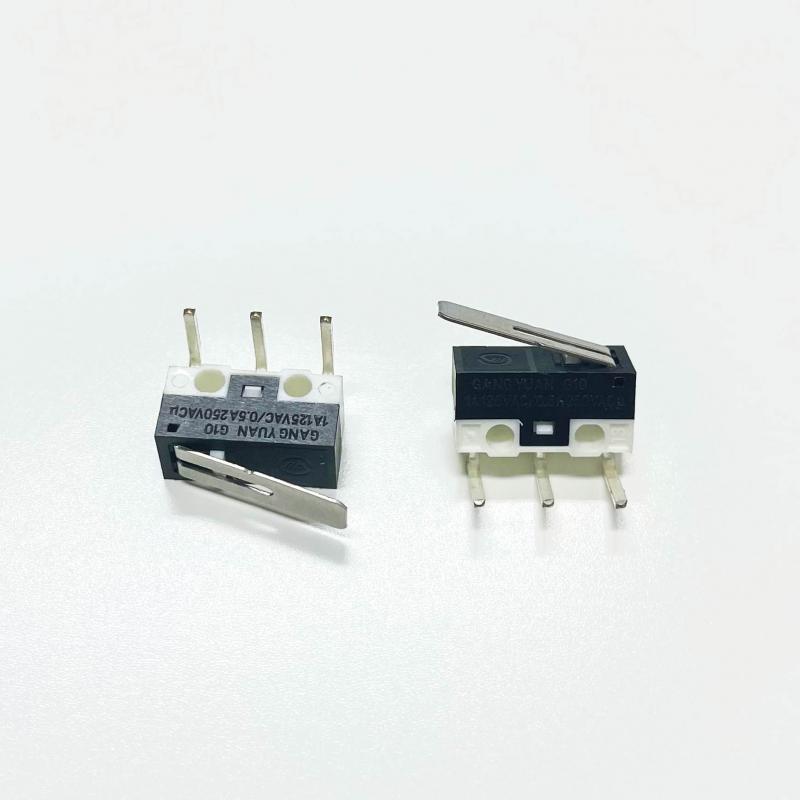

Right angled dip micro switch

Right angled pin in DIP type, options for left angled and terminals length

Brand:
Gangyuan
Item NO.:
G10-1-04R-30-1123
Order(MOQ):
1000
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black and White
Shipping Port:
Ningbo/Shenzhen
Lead Time：
10-15 business Days after payment done

Outline (mm)
12.80mm x 6.60mm
Mounting Type
Right Angle
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

SDPT 3 pin PCB 1A 125V/250VAC right angled dip micro switch

Right angled G10 series micro switch DIP button switch

Specifications

G10 series micro switch specifications:

1. Working Temperature: -25℃～+85℃；

Working Relative Humidity: ≤85%；

2. Rating: 1A 125V/250V AC；

3. Contact Resistance: ≤100mΩ；

4. Insulation Resistance: ≥100MΩ；

6. Dielectric Withstanding Strength: 500V AC 1Min；

7. Soldering Temperature: 260±5℃ 3s；

8. Force: 3030±15gf；

9. Durality (mating cycles): 10000 Cycles.

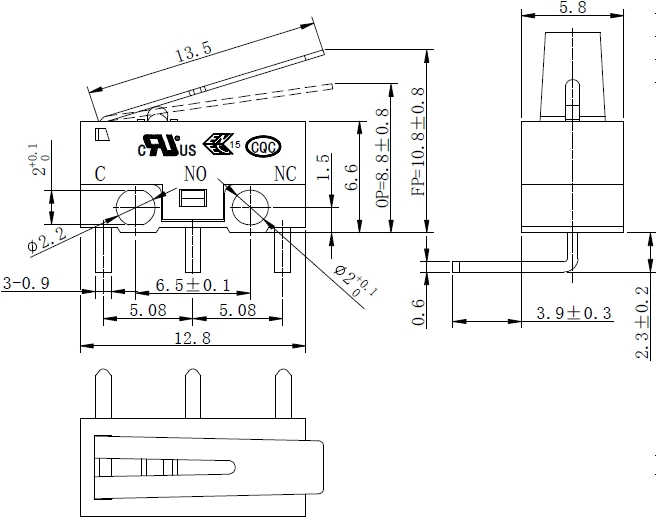

Drawing

What is micro switch?

A miniature snap action micro switch, is a passive actuated and momentary contact switch. Widely applied in appliances or devices of automotive, industrial and medical instruments as sensor.

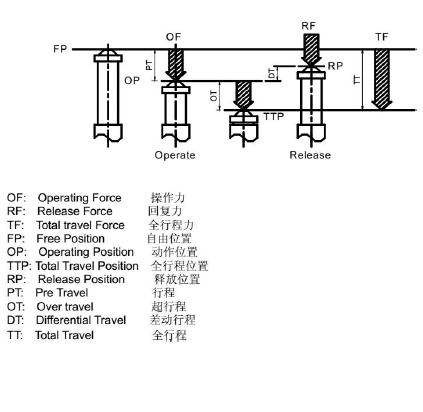

SPDT switches working rules

Pin 1 is a common terminal, pin 2 is closed in free status, and pin 3 is open when press the actuator.

Free without any pressure, pins 1 and 2 are connected.

Being activated, pins 1 and 3 are connected.

"3-way" is the electrician's design for a single pole double throw (SPDT) switch.

The switches get a complete circuit when current flows in cycle and the bulb light on.
