Right Angle Dip Mini Micro Switch

Brand:
Gangyuan
Item NO.:
G10-3-01S
Order(MOQ):
1000pcs
Payment:
100% T/T
Product Origin:
Zhejiang, China (Mainland)
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
14 working days for payment

Outline (mm)
20.00mm x 10.00mm
Mounting Type
Right Angle
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

Basic Information

Product name	Micro Switch
Rating	AC125V 4A
Contact resistance	≤100mΩ
Operating force	2N max
Life	50,000 Cycles
Operating temperature	-25°C+125°C
Features	right angle dip type micro switch

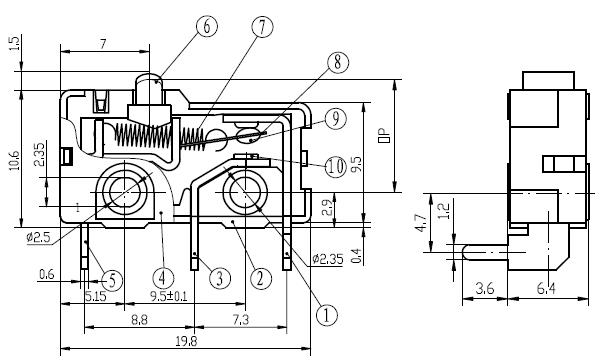

Dimension

Product features

1. Type: Micro switch

2. Circuit Code: SPST

3. Lever Type: Without lever, Right angle DIP

4. Electrical Rating: AC 125V 4A

Our advantage

1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.

Application

Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

FAQ

1. Q: Are you manufacture/ factory? Location?

A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.
